Tridekon Cropsaver - Warnings; Crop Height Adjustment; Fine Tuning the Installation

WARNINGS
1. Remove lock-up pin for eld position, damage will occur if pins are placed back in bracket.
Failure to remove pins during eld operation will restrict Cropsaver lift and void warranty.
2. Check the 3/8” by 7” lock bolt on a regular basis to ensure it is still intact.
It is required to keep the Cropsaver from bouncing out of the outer quick attach bracket.
If maximum lift is exceeded it will act as a shear pin.
k
CROP HEIGHT ADJUSTMENT

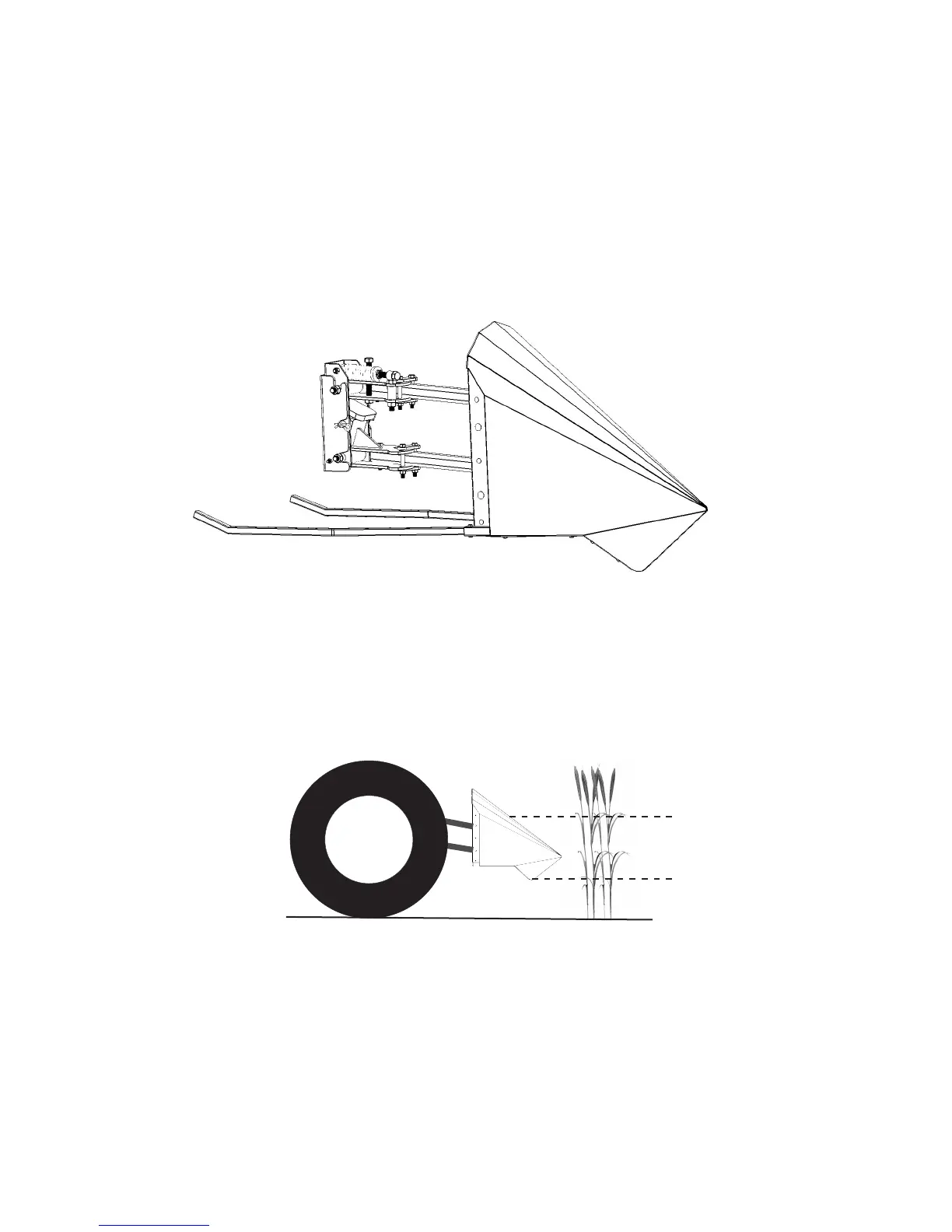

Run the bottom tip of the Cropsavers one third of the way up from the height of the plant. Allow a couple
of inches for tire impression. The lowest height of crop that Cropsavers can eectively divide is 20”.
2/3
1/3
Some sets of Cropsavers will come with extra length on the mounting arms to accommodate dierent
tire and rim sizes. Some trimming of the arms may be required to get the Cropsavers in their optimal
position. Cropsavers should be no closer than 1.5” away from the front of the tire and no further that 10” away.
Bending of the deector arms may be required to avoid interference with your sprayer.
Deector arms should be no closer than 4” from the tire to avoid contact.
FINE TUNING THE INSTALLATION
Page 5
k
1.
2.
