REMOVING CROPSAVERS USING QUICK ATTACH

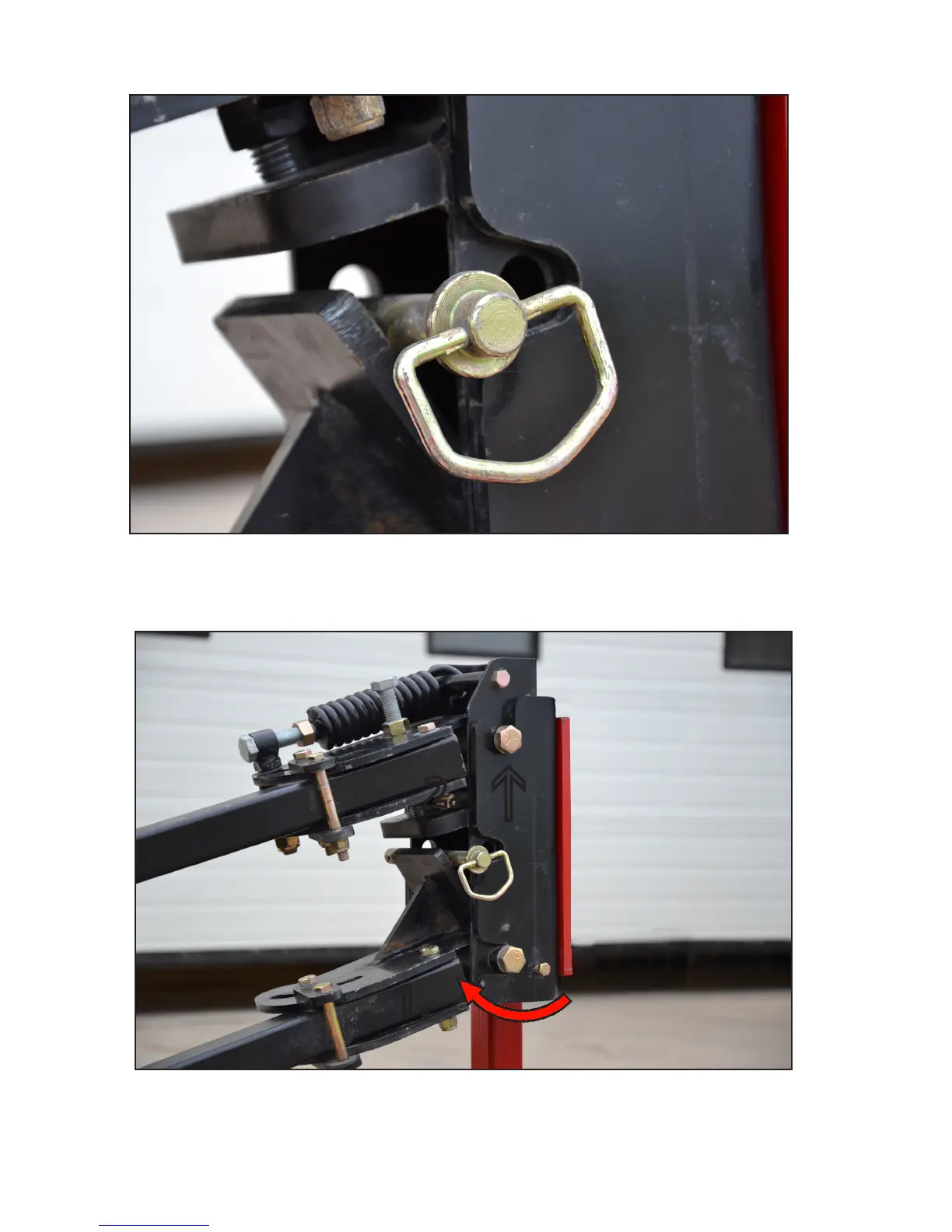

Lay pin ahead of hole used for lock-up. This will reduce the amount you have to lift
the Cropsaver while keeping it unlocked and free to be removed.
Remove 3/8” lock bolt then with two people, lift the tip of the Cropsaver and on the
arms. Pivot the bottom out rst then pull the top out.
Note if equipped with air lift disconnect the quick couplers rst.
f
1.
2.
Page 14
