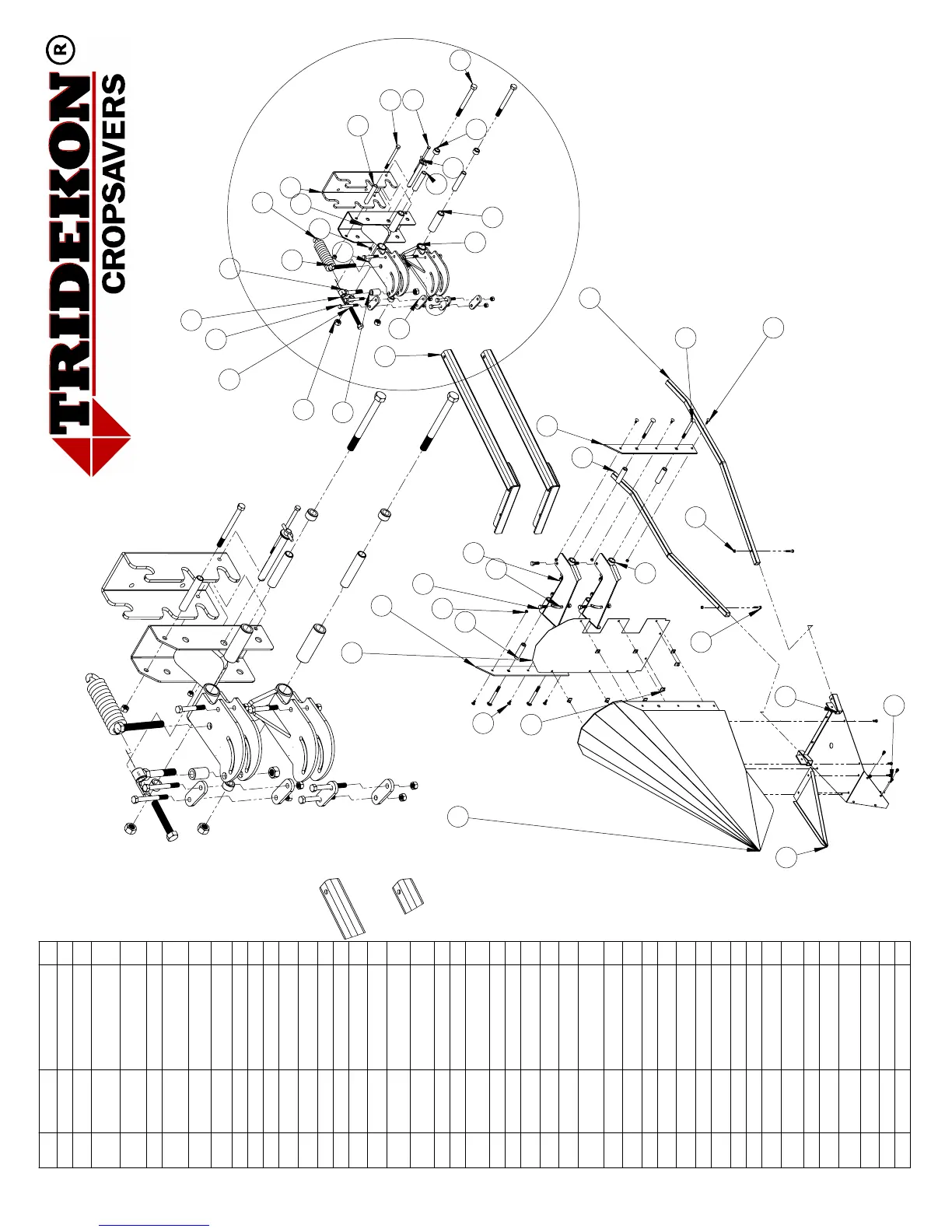

Tridekon Cropsaver - Cropsaver Parts Assembly Drawing

4
36
12
10
42
11
31
23
24
32
45
28
26
33
16
25
40
20
38
27
30
29
17
44
39
19
22
21
18
3
41
8
35
14
43
2
13
5
1
37
6
9
15
7
34
ITEM
NO.
PART
NUMBER
DESCRIPTION
QTY.
1
1-csp-07
Cropsaver Plus shell
1
2
8-csp-07
Cropsaver floor
panel
1
3
42-csp-07
reinforcement plate
2 1/2" x 22" right hand
1
4
41-csp-07
reinforcement plate
2 1/2" x 22" left hand
1
5
53-csp-07
reinforcement tip
1
6
52-csp-07
hinge plate for right
hand cropsaver
2
7
50-csp-07
1" d.o.m. .240 wall x 3
3/4" long
4
8
36-csp-07
1/2" carriage bolt x 5
1/2" long
4
9
37-csp-07
1/2" flat washer
4
10
13-csp-07
1/2" nylon locknut
15
11
43-csp-07
Right hand arm
2
12
45-csp-07
hexbolt 1/2" x 1 1/2"
long
4
13
34-csp-07
5/16" hexbolt x 3/4"
long
10
14
39-csp-07
5/16" nut
12
15
33-csp-07
Backwall Panel
1
16
25B-csp-07
Top hinged clevis
right
1
17
26A-csp-07
Lower hinged clevis
right
1
18
23-csp-07
1 1/2" nylon bushing
4 3/4" long
2
19
21-csp-07
1" d.o.m. x .120 wall x
4 7/8" long
2
20
20-csp-07
inner quick atach
1
21
24-csp-07
3/4" hexbolt 8" long
2
22
22-csp-07
1 1/4" d.o.m. bushing
x 3/4" long
4
23
10-csp-07
3/4" nylon locknut
3
24
7-csp-07
3/4" x4 1/2" long bolt
1
25
5-csp-07
coil spring hooked
3/4" nut
1
26
6-csp-07
Eyebolt 3/4" x 4" long
1
27
14-csp-07
1/2" pipe x 4 7/8"
long
1
28
9-csp-07
1 1/4" d.o.m. .240
bushing x 2" long
1
29
15-csp-07
1/2" hexbolt x 6" long
1
30
12-csp-07
1/2" bolt x 3 1/2" long
2
31
17-csp-07
1 1/2" clamp plate
4
32
16-csp-07
1/2" hexbolt x 4 1/2"
long
4
33
11-csp-07
3/4" adjustment bolt
x 6" long
1
34
40-csp-07
5/16" carriage bolt
4
35
46-csp-07
5/16" carriage bolt x
1" long
2
36
4-csp-07
5/16" nylon locknut
6
37
54-csp-07
Clip
8
38
19-csp-07
Outer quick attach
bracket
1
39
27-csp-07
3/8" hexbolt 7" long (
lock bolt )
1
40
28-csp-07
3/8" nylon locknut
1
41
2L-csp-07
Extention deflector
arm - left
1
42
2R-csp-07
Extention deflector
arm - right
1
43
3-csp-07
5/16" hexbolt x 1 1/2"
long
2
44
30-csp-07
3/4" lock pin
1
45
29-csp-07
#11 hitchpin
1
THE INFORMATION CONTAINED IN THIS DRAWING IS THE
SOLE PROPERTY OF TRIDEKON. ANY REPRODUCTION IN
PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION
OF TRIDEKON IS PROHIBITED
Page 6
