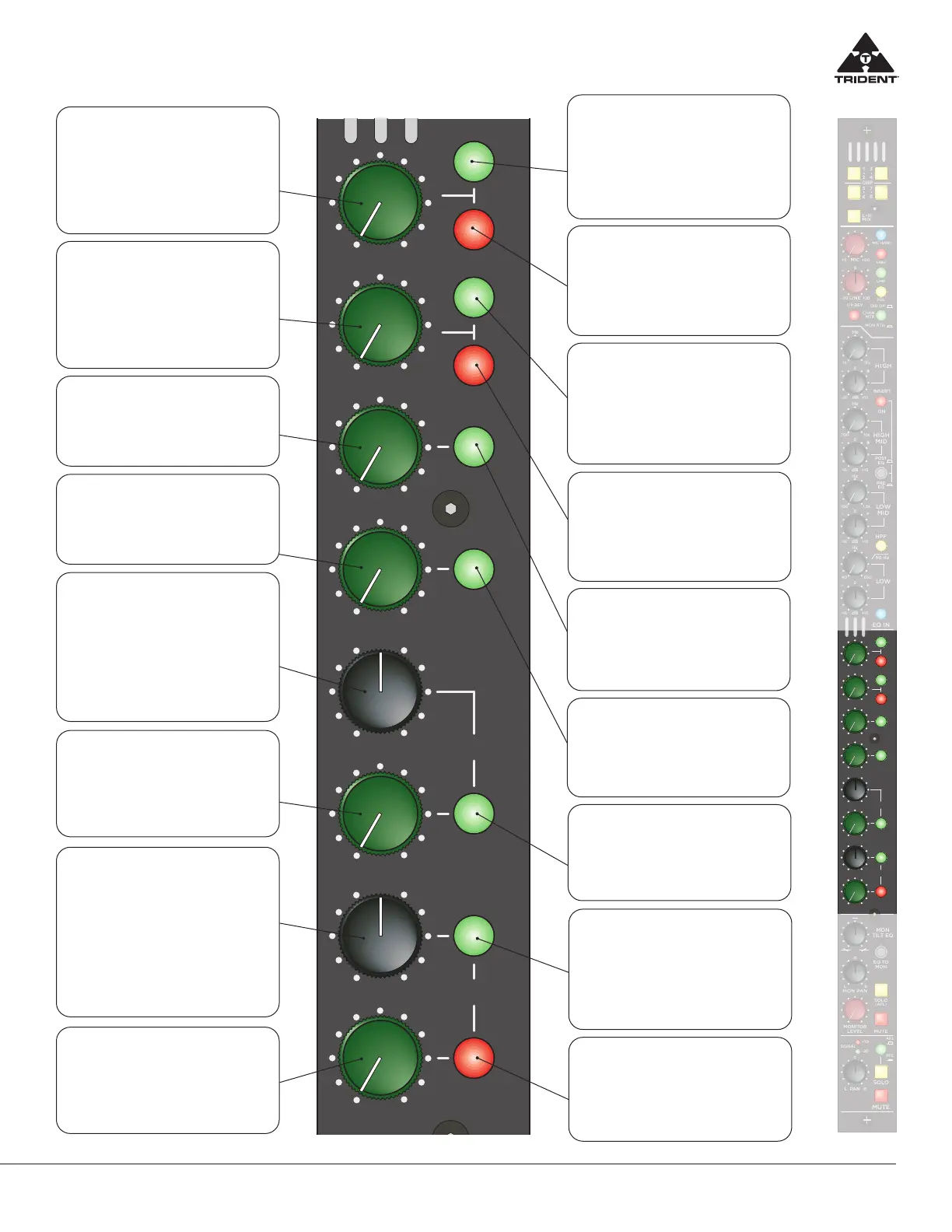

Trident 88 Input Channel Aux Sends
AUX 1 Level Control
Adjusts the mix level of Channel/
Monitor (as determined by Aux
1 To Mon switch below) into the
Aux 1 bus.
AUX 2 Level Control
Adjusts the mix level of Channel/
Monitor (as determined by Aux
2 To Mon switch below) into the
Aux 2 bus.
AUX 3 Level Control
Adjusts the mix level of Channel
into the Aux 3 bus.
AUX 4 Level Control
Adjusts the mix level of Channel
into the Aux 4 bus.
AUX 5-6 PAN Control
Adjusts the balance of the chan-
nel signal being fed to Aux 5
bus (CCW) and Aux 6 bus (CW).
In the centre (=) position equal
signal level is sent to both Aux 5
and Aux 6 buses.
AUX 5-6 Level Control
Adjusts the stereo mix level of
channel into the Aux 5 and Aux
6 buses.
AUX 7-8 PAN Control
Adjusts the balance of the channel/
monitor signal (as determined by
Aux 7-8 To Mon switch below)
being fed to Aux 7 bus (CCW) and
Aux 8 bus (CW). In the centre (=)
position equal signal level is sent
to both Aux 7 and Aux 8 buses.
AUX 7-8 Level Control
Adjusts the stereo mix level of
Channel into the Aux 7 and Aux
8 buses.
AUX 1 Pre Switch
This switch determines the signal source
for Aux 1 bus, between Post (UP) or
Pre (DOWN) Channel fader/Monitor
level (as determined by Aux 1 To Mon
switch below).
AUX 1 To Mon
When depressed selects the channel
Monitor input as the source to the Aux 1
Level control. In the up position sources
the channel signal.
AUX 2 Pre Switch
This switch determines the signal source
for Aux 2 bus, between Post (UP) or
Pre (DOWN) Channel fader/Monitor
level (as determined by Aux 2 To
Mon switch below).
AUX 2 To Mon
When depressed selects the channel
Monitor input as the source to the Aux 2
Level control. In the up position sources
the channel signal.
AUX 3 Pre Switch
This switch determines the signal source
for Aux 3 bus, between Post (UP) or Pre
(DOWN) channel fader.
AUX 4 Pre Switch
This switch determines the signal source
for Aux 4 bus, between Post (UP) or Pre
(DOWN) channel fader.
AUX 5-6 Pre Switch
This switch determines the signal source
for Aux 4 bus, between Post (UP) or Pre
(DOWN) channel fader.
AUX 7-8 Pre Switch
This switch determines the signal source
for Aux 7 and Aux 8 buses, between
Post (UP) or Pre (DOWN) Channel fad-
er/Monitor level (as determined by Aux
7-8 To Mon switch below).
AUX 7-8 To Mon
When depressed selects the channel
monitor input as the source to the Aux
7-8 Level control. In the UP position
sources the channel signal.
