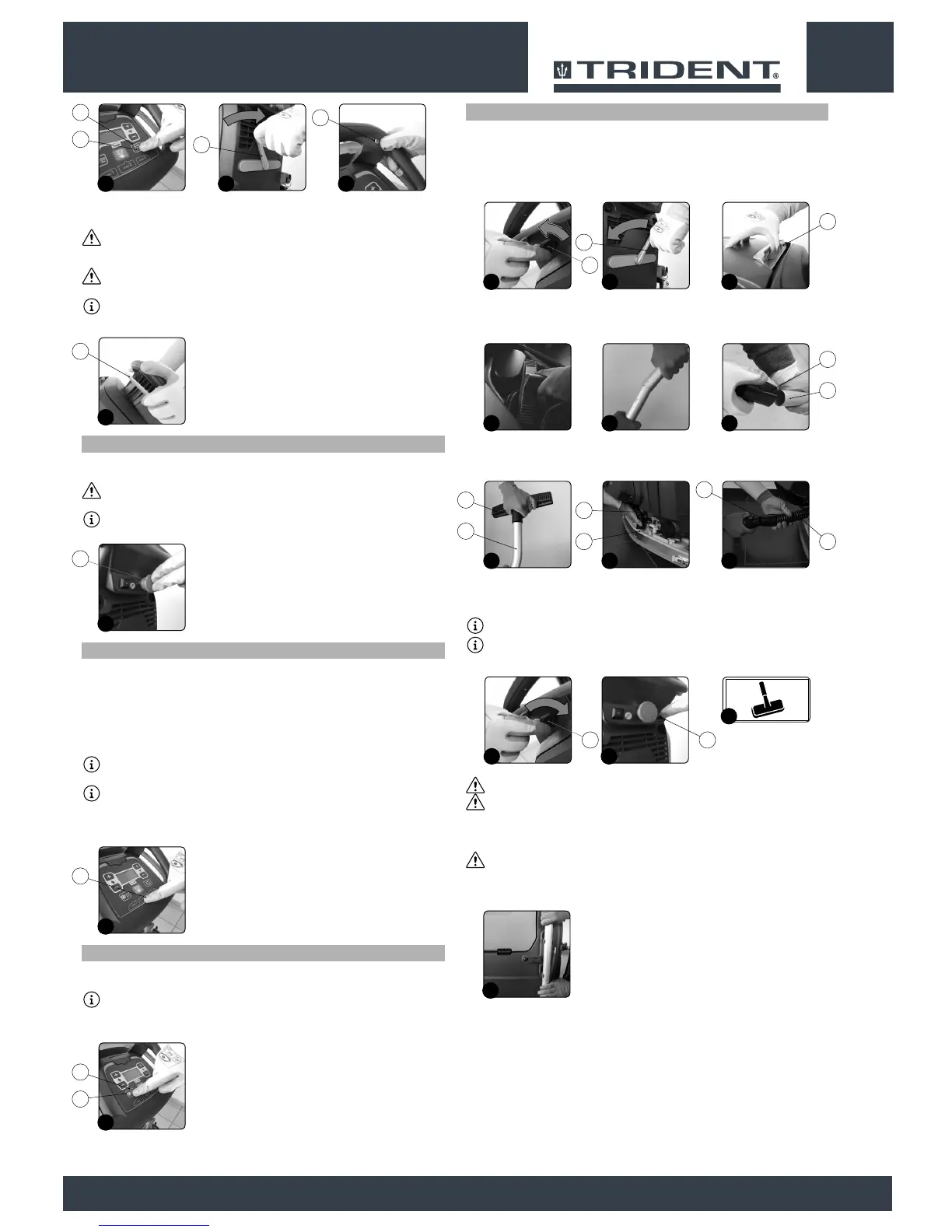

Trident T20SC PRO - Vacuum Wand Kit; Emergency Button

4. Activate the dead man's levers (5) on the handlebars (Fig.4) to start moving the machine in
reverse mode.
WARNING: the reverse speed is lower than the forward speed to comply with current health
and safety standards. If the potentiometer is adjusted while reversing, the adjustment of the
forward speed will be automatically changed.
WARNING: it is impossible to reverse if the squeegee body touches the oor. In order to
reverse, lift the squeegee body from the oor using the relevant lever on the back of the
appliance.
NB: to disable reverse movement, press the button (4) on the control handlebars again.
AREA BUTTONS
EMERGENCY BUTTON
This machine is equipped with an emergency switch. To activate it, just press the button (1) on the
back of the control handlebars (Fig.1).
WARNING: this control interrupts the electrical circuit between the batteries and the machine
system.
NB: after stopping and resolving the problem, turn the key to “0”, set the button (1) to the
standard position and turn the key to “I” to resume the work.
The “AREA” functions (AREA-1; AREA-2; AREA-3; ECO MODE) are functions inserted in the machine
memory. The following levels:
• Forward speed
• Adjustment of the detergent solution ow
• Vacuum motor e󰀩ciency
are pre-set and have been created on the basis of the type of environment where you want to work.
To select an area program, just press the relative button (1) on the control panel (Fig.1).
NB: when an area program is active, the relative LED (2) will light up on the control panel
(Fig.1).
NB: if you want to change the levels of the above parameters of the "AREA" functions, just
make the necessary modications then press and hold the button of the relative program for
about three seconds.
The modication will be recorded when the LED starts ashing.
SILENT-MAX FUNCTION
This machine has a silent-max function for reducing the noise generated by the vacuum motor.
To activate or deactivate this function, just press the button (1) on the instrument panel (Fig.1).
NB: when the silent-max function is active, the relative LED (2) will light up on the control panel
(Fig.1).
VACUUM WAND KIT
To use the vacuum kit, proceed as follows:
1. Turn the main switch (1) to "0", making a quarter turn of the key in the direction of the arrow
(Fig.1).
2. Lower the squeegee body and turn the squeegee control lever (2) in the direction of the arrow
(Fig.2). The lever is located on the back of the machine.
3. Open the storage compartment (3) by turning the handle (4) (Fig.3).
4. Remove all the vacuum kit components from the storage compartment (Fig.4).
5. Assemble the steel extension tube (Fig.5).
6. Connect the wand kit vacuum tube (7) to the extension tube (6) (Fig.6).
7. Insert the vacuum brush (8) in the extension tube (6) (Fig.7).
8. Remove the squeegee vacuum tube (9) from the sleeve (10) in the squeegee body (Fig.8).
9. Connect the wand kit vacuum tube (7) to the squeegee vacuum tube (9) (Fig.9).
10. Turn the main switch (1) to "I", making a quarter turn of the key in the direction of the arrow
(Fig.10).
11. Activate the vacuum control kit by pressing the button (11) (Fig.11).
NB: as soon as the button (11) is pressed, the LED on it will light up (Fig.11).
NB: as soon as the button (11) on the control display is pressed, the symbol (12) will appear
(Fig.12).
WARNING: never pick up solid matter such as dust, cigarette stubs, paper, etc.
CAUTION: never collect gases, explosive/inammable liquids or powders, nor acids and
solvents! These include gasoline, paint thinners and fuel oil (which, when mixed with the
vacuum air, can form explosive vapours or mixtures), and also non-diluted acids and solvents,
acetones, aluminium and magnesium powders. These substances may also corrode the
materials used to construct the machine.
CAUTION: if the machine is used in dangerous areas (e.g. petrol stations), the relative safety
standards must be observed. It is forbidden to use the machine in environments with a
potentially explosive atmosphere.
12. After completing the task, the wand kit can be xed in the side support on the machine (Fig.13).
19
1
1
1
1
2
1
87 9
8
9
7
9
6
10
31
1
2
2
3
54 6
7
6
10 11
1 1
12
2
3
3
4
4
5
1
1
2
1
13
