MAIN MACHINE COMPONENTS

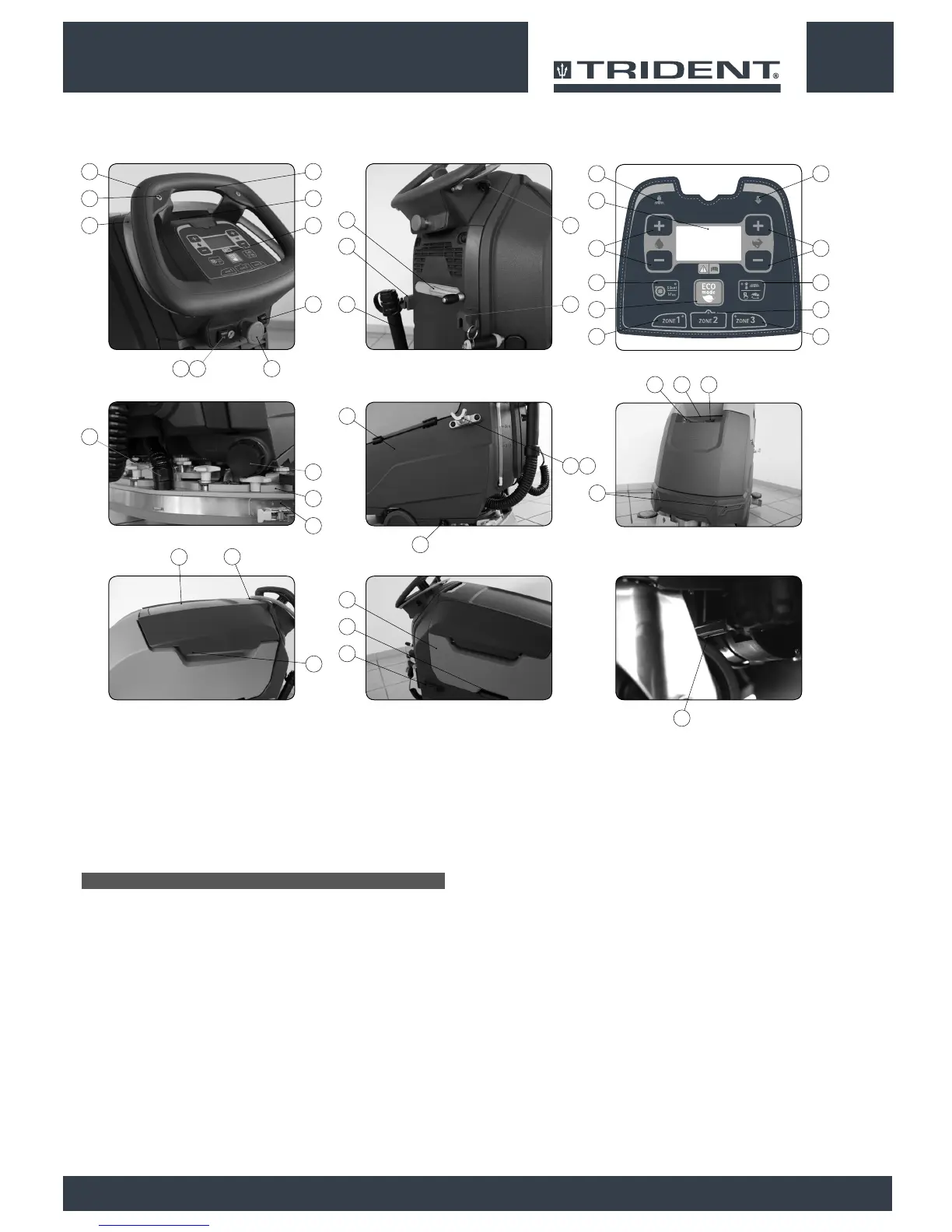

The main machine components are the following:
1. Control handlebars.
2. Dead man's lever.
3. Control panel.
4. Reverse control button.
5. Control button for extra brush head pressure.
6. Reverse activation LED.
7. LED for extra brush head pressure activation.
8. Control display.
9. Buttons for detergent solution adjustment.
10. Buttons for movement speed adjustment.
11. HNR control button (“HILLYARD NOISE REDUCTION”).
12. HEM control button (“HILLYARD ECO MODE”).
13. Control button for brush head / brush uncoupling.
14. “AREA 1” program activation button.
15. “AREA 2” program activation button.
16. “AREA 3” program activation button.
17. Cover for HFM (“Hillyard Fleet Management”) SOS button (optional).
18. HFM (“Hillyard Fleet Management”) SOS button (optional).
19. Main key switch.
20. Emergency button.
21. Spray gun control switch (optional).
22. Vacuum wand control switch (optional).
23. HDC (“Hillyard Dosing Control”) control switch (optional).
24. Squeegee body control lever.
25. Support hook for recovery tank drainage tube.
26. Recovery tank drainage tube.
27. Support hook for spray gun.
28. Solution tank level indicator.
29. Built-in battery charger.
30. Solution tank drainage cap.
31. Squeegee body.
32. Squeegee body support.
33. Vacuum tube.
34. Water ow adjustment tap.
35. Vacuum accessory support (optional).
36. Brush support.
37. Squeegee body support (optional).
38. Headlights (optional).
39. Brush head body.
40. Solution tank.
41. Solution tank ller cap/measuring inlet.
42. Solution tank ller tube cap.
43. Cover cap for HFF (“HILLYARD FAST FILL”) quick coupling kit (optional).
44. Recovery tank.
45. Recovery tank lifting handle.
46. Recovery tank cover lifting handle.
47. Control handle for accessory compartment door.
48. Accessory compartment door.
49. Detergent solution lter.
50. Electric brake control lever.
3
1 4
5 18
2
2221
3
23
35 37
32
30
34
31
34
36
46
44
47
45
48
40
26
24
27
20
25
19
3s.
7
8
6
14 16
12 15
11 13
9 10
38
42 43
50
41
