Data sheet 09/22-EM080-23
Emergency lighting units
EM converterLED
LED current at nominal battery voltage and
min. battery discharge current
LED current at nominal battery voltage and
max. battery discharge current

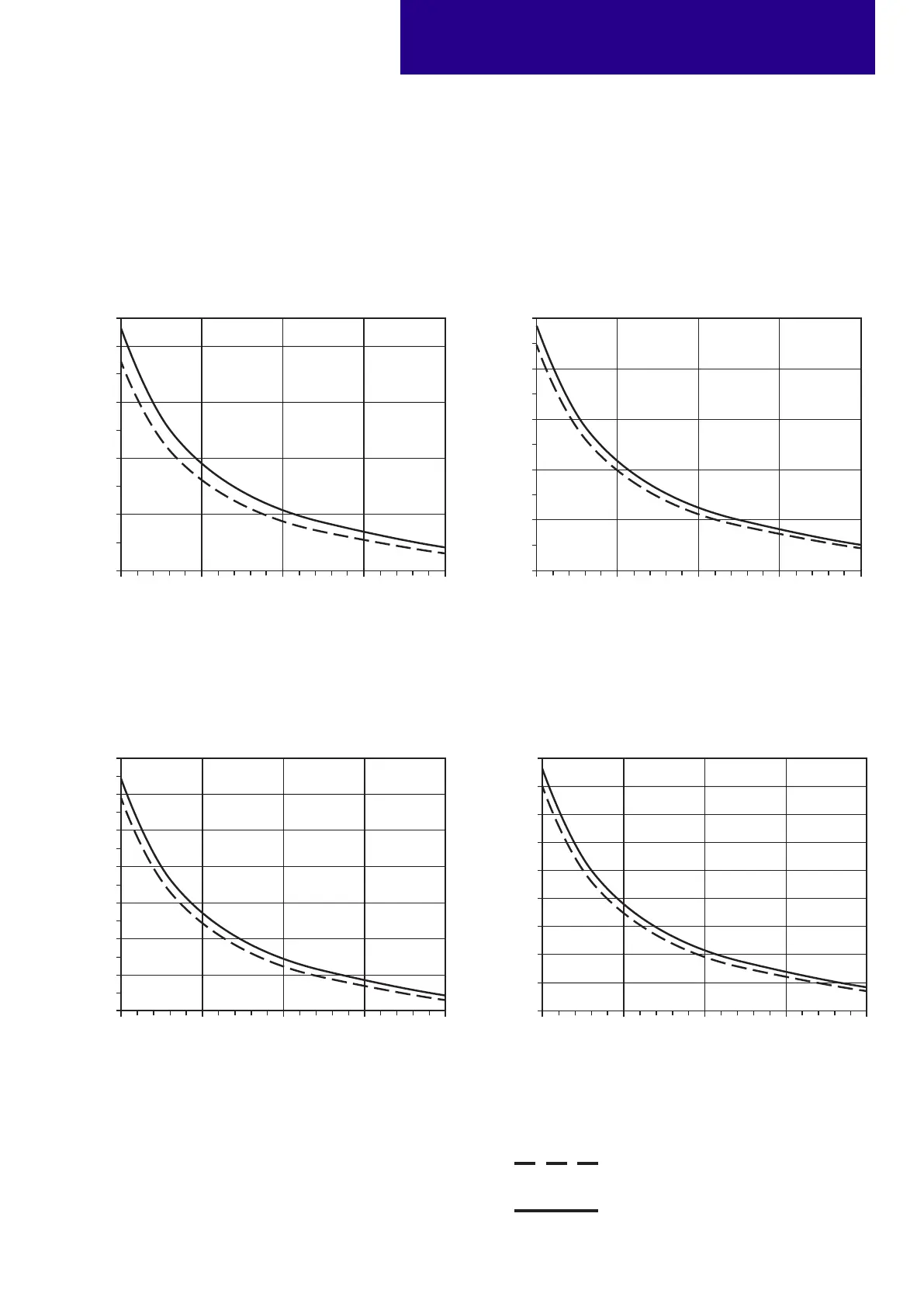

5.3 Typ. LED current/voltage characteristics
The LED current in emergency mode is automatically adjusted by the EM converterLED module based on the total forward voltage of the LED modules con-
nected and the associated battery. The start of the LED in emergency mode does not result in a current peak.
EM converterLED BASIC 203 MH/LiFePO4 250V
Article number: 89800592
NiMH batteries, 3,6 V battery voltage
840 – 900 mA battery discharge current (tolerance)
LiFePO
4
batteries, 3,2 V battery voltage
955 – 1025 mA battery discharge current (tolerance)
EM converterLED BASIC 202A MH/LiFePO4 250V
Article number: 89800709
NiMH batteries, 3,6 V battery voltage
780 – 840 mA battery discharge current (tolerance)
LiFePO
4
batteries, 3,2 V battery voltage
830 – 950 mA battery discharge current (tolerance)
V
LED
[V]V
LED
[V]
LED current [mA] LED current [mA]
EM converterLED BASIC 204 MH/LiFePO4 250V
Article number: 89800581
NiMH batteries, 4,8 V battery voltage
850 – 910 mA battery discharge current (tolerance)
LiFePO
4
batteries, 3,2 V battery voltage
1350 – 1450 mA battery discharge current (tolerance)
LED current [mA]
V
LED
[V]
50 100 150 200 250
15
25
35
5
45
55
50 100 150 200 250
15
25
35
5
45
55
50 100 150 200 250
20
30
40
50
60
70
80
10
EM converterLED BASIC 205 MH/LiFePO4 250V
Article number: 89800582
NiMH batteries, 6,0 V battery voltage
860 – 920 mA battery discharge current (tolerance)
LiFePO
4
batteries, 3,2 V battery voltage
1770 – 1900 mA battery discharge current (tolerance)
LED current [mA]
V
LED
[V]
250
20
30
40
50
60
70
80
90
10
100
50 100 150 200
