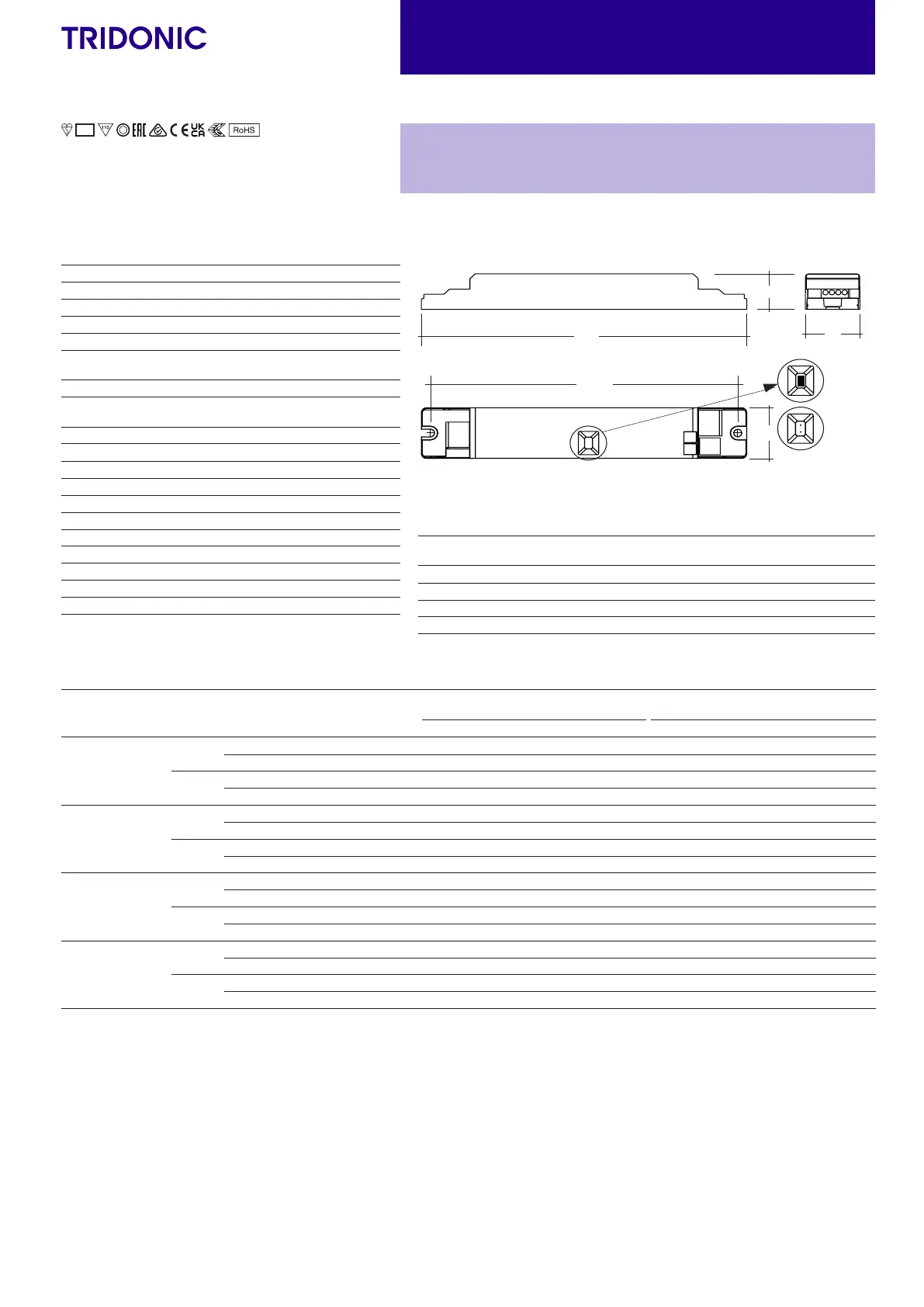

Data sheet 09/22-EM080-23
Emergency lighting units
EM converterLED
Specific technical data
Type
1
Battery
technology
Rated
duration
Typ. λ (at 230
V, 50 Hz)
Typ. output
power
P emergency
Mains current in charging operation Rated power in charging operation
Initial charge Fast recharge
Trickle charge
3
Initial charge Fast recharge
Trickle charge
3
EM converterLED BASIC
202A MH/LiFePO4 250V
NiMH
1 h 0.60C 2.3 W 17 mA 17 mA 17 / 12 mA 2.4 W 2.4 W 2.4 / 1.4 W
3 h 0.60C 2.3 W 18 mA 18 mA 18 / 12 mA 2.6 W 2.6 W 2.6 / 1.4 W
LiFePO4
1 h 0.60C 2.3 W 17 mA 17 mA 17 / 12 mA 2.1 W 2.1 W 2.1 / 1.4 W
3 h 0.60C 2.3 W 20 mA 20 mA 20 / 12 mA 2.9 W 2.9 W 2.9 / 1.4 W
EM converterLED BASIC
203 MH/LiFePO4 250V
NiMH
1h 0.60C 2.5 W 17 mA 17 mA 17 / 12 mA 2.4 W 2.4 W 2.4 / 1.4 W
3h 0.60C 2.5 W 19 mA 19 mA 19 / 12 mA 2.9 W 2.9 W 2.9 / 1.4 W
LiFePO
4
1h 0.60C 2.5 W 20 mA 20 mA 20 / 12 mA 2.8 W 2.8 W 2.8 / 1.4 W
3h 0.60C 2.5 W 25 mA 25 mA 25 / 12 mA 3.9 W 3.9 W 3.9 / 1.4 W
EM converterLED BASIC
204 MH/LiFePO4 250V
NiMH
1h 0.65C 3.5 W 18 mA 18 mA 18 / 12 mA 2.5 W 2.5 W 2.5 / 1.4 W
3h 0.65C 3.5 W 21 mA 21 mA 21 / 12 mA 3.2 W 3.2 W 3.2 / 1.4 W
LiFePO
4
1h 0.65C 3.5 W 20 mA 20 mA 20 / 12 mA 2.8 W 2.8 W 2.8 / 1.4 W
3h 0.65C 3.5 W 26 mA 26 mA 26 / 12 mA 3.9 W 3.9 W 3.9 / 1.4 W
EM converterLED BASIC
205 MH/LiFePO4 250V
NiMH
1h 0.65C 4.5 W 19 mA 19 mA 19 / 12 mA 2.7 W 2.7 W 2.7 / 1.4 W
3h 0.65C 4.5 W 22 mA 22 mA 22 / 12 mA 3.3 W 3.3 W 3.3 / 1.4 W
LiFePO
4
1h 0.65C 4.5 W 20 mA 20 mA 20 / 12 mA 2.8 W 2.8 W 2.8 / 1.4 W
3h 0.65C 4.5 W 26 mA 26 mA 26 / 12 mA 3.9 W 3.9 W 3.9 / 1.4 W
1
EM = Emergency
2
16 h battery charging time for 2 h emergency lighting function according to AS 2293.
3
In case of NiMH batteries: Intermittent charge is used. Value 1 is for 4 min. charge on / Value 2 is for 16 min. charge o. In case of LiFePO
4
batteries voltage dependent constant current charging is used.
4
12 h battery charging time for 2 h emergency lighting function when used with LiFePO
4
batteries.
EL
Technical data
Rated supply voltage 220 – 240 V
AC voltage range 198 – 264 V
Mains frequency 50 / 60 Hz
LED module forward voltage range 50 – 250 V
Output current see chapter 5.3
Time to light < 0.5 s from detection of emergency
event
Overvoltage protection 320 V (for 48 h)
U-OUT (including open- / short-circuit and
double load)
280 V
Max. open circuit voltage 280 V
Battery charging time
24 h
24
Ambient temperature range ta -5 ... + 55 °C
Max. casing temperature tc 75 °C
Mains voltage changeover threshold according to EN 60598-2-22
Mains surge capability (between L – N) 1 kV
Mains surge capability (between L/N – PE) 2 kV
Type of protection IP20
Lifetime up to 100,000 h
Guarantee (conditions at www.tridonic.com) 5 years
Dimensions LxWxH 179 x 30 x 21 mm
EM converterLED BASIC MH/LiFePO4 250 V
BASIC series
30
21
30
179
169.2
Duration
link 3 h
No
duration
link 1 h
Note: LED driver supplied with duration link in 3 hours position. Remove duration link for
1 hour duration. Duration link must be set before battery and mains connection.
Ordering data
Type
1
Article
number
Rated
duration
Packaging,
carton
Packaging,
pallet
Weight
per pc.
EM converterLED BASIC 202A MH/LiFePO4 250V  1/3 h 10 pc(s). 1,600 pc(s). 0.07 kg
EM converterLED BASIC 203 MH/LiFePO4 250V  1/3 h 10 pc(s). 1,600 pc(s). 0.07 kg
EM converterLED BASIC 204 MH/LiFePO4 250V  1/3 h 10 pc(s). 1,600 pc(s). 0.07 kg
EM converterLED BASIC 205 MH/LiFePO4 250V  1/3 h 10 pc(s). 1,600 pc(s). 0.07 kg
EMcLED Strain-relief set 240x43x30mm
ACCES-
SORIES
43
6868
240
30
Permissible cable jacket diameter 2.2 – 9 mm
Ordering data
Type
Article
number
Packaging, carton Packaging, pallet Weight per pc.
EMcLED SR  10 pc(s). 1,260 pc(s). 0.08 kg
