Emergency lighting units
EM converterLED

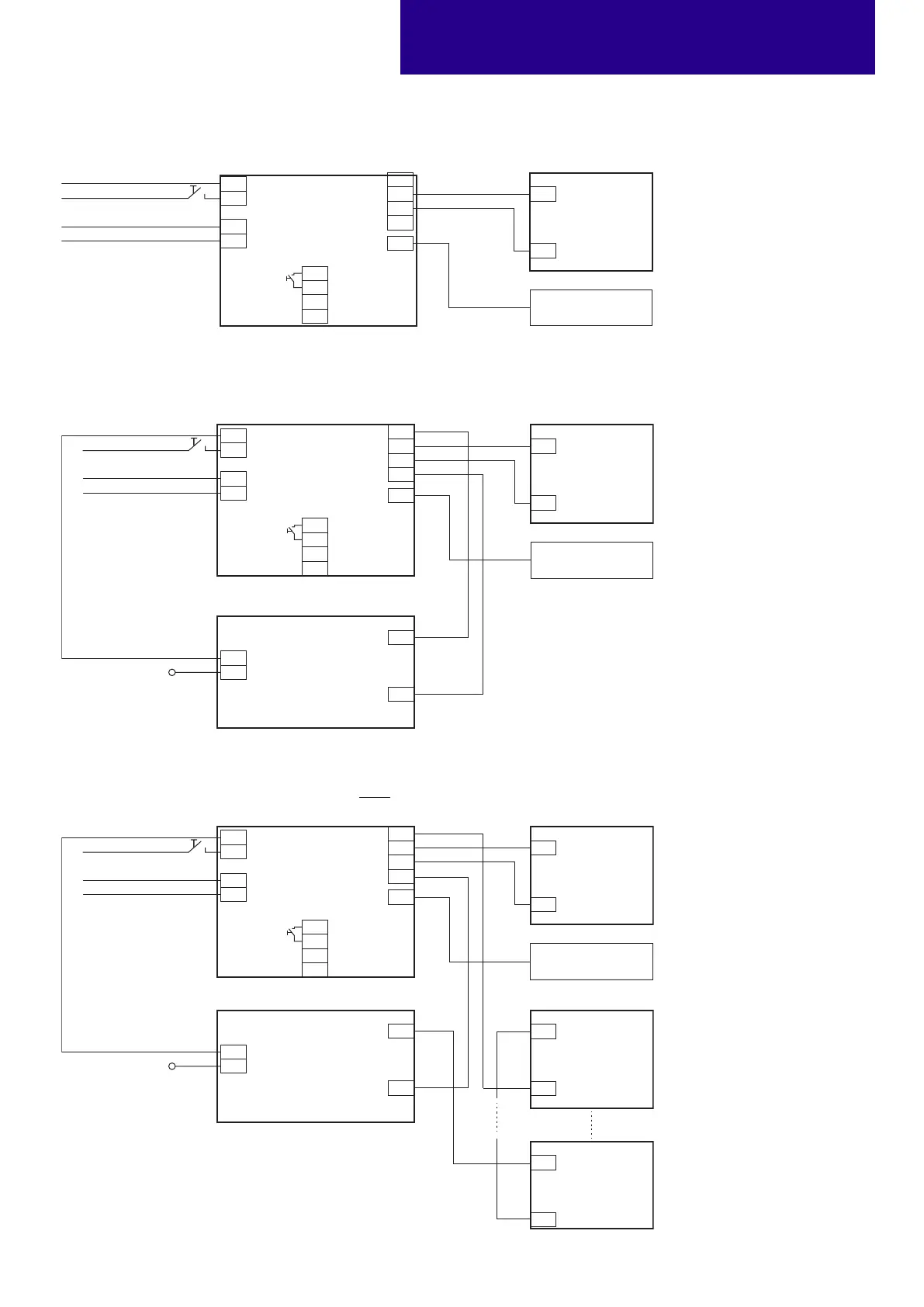

EM converterLED BASIC with a standard LED driver and one LED module for mains and emergency operation
Neutral
+
+
–
–
–
+
P
O
L
out
L
in
N
L
L
N
Neutral
Un-Switched Line
Test
switch
Indicator
LED
Switched Line in
Switched Line out
LED driver
LED
LED
LED driver
LED Module
Emergency
–
+
LED driver
max. 150 W in operation
EM converterLED
BASIC
Battery
Battery
EM converterLED BASIC with one LED module for non-maintained emergency operation
+
+
–
–
–
+
P
O
L
out
L
in
N
L
EM converterLED
BASIC
Neutral
Un-Switched Line
Test
switch
Indicator
LED
Not connected
Not connected
LED driver
LED
LED
LED driver
Battery
Battery
LED Module
Emergency
EM converterLED BASIC with a standard LED driver and series operation of LED modules
One LED module is operated in emergency mode.
All LED modules are operated in mains mode.
Neutral
+
+
–
–
–
+
P
O
L
out
L
in
N
L
L
N
Neutral
Un-Switched Line
Test
switch
Indicator
LED
Switched Line in
Switched Line out
LED driver
LED
LED
LED driver
LED Module
Emergency
–
+
–
+
LED Module
–
+
LED Module
LED driver
max. 150 W in operation
EM converterLED
BASIC
Battery
Battery
