3.3. Hardware / Connections / Specifications
3.4. System description

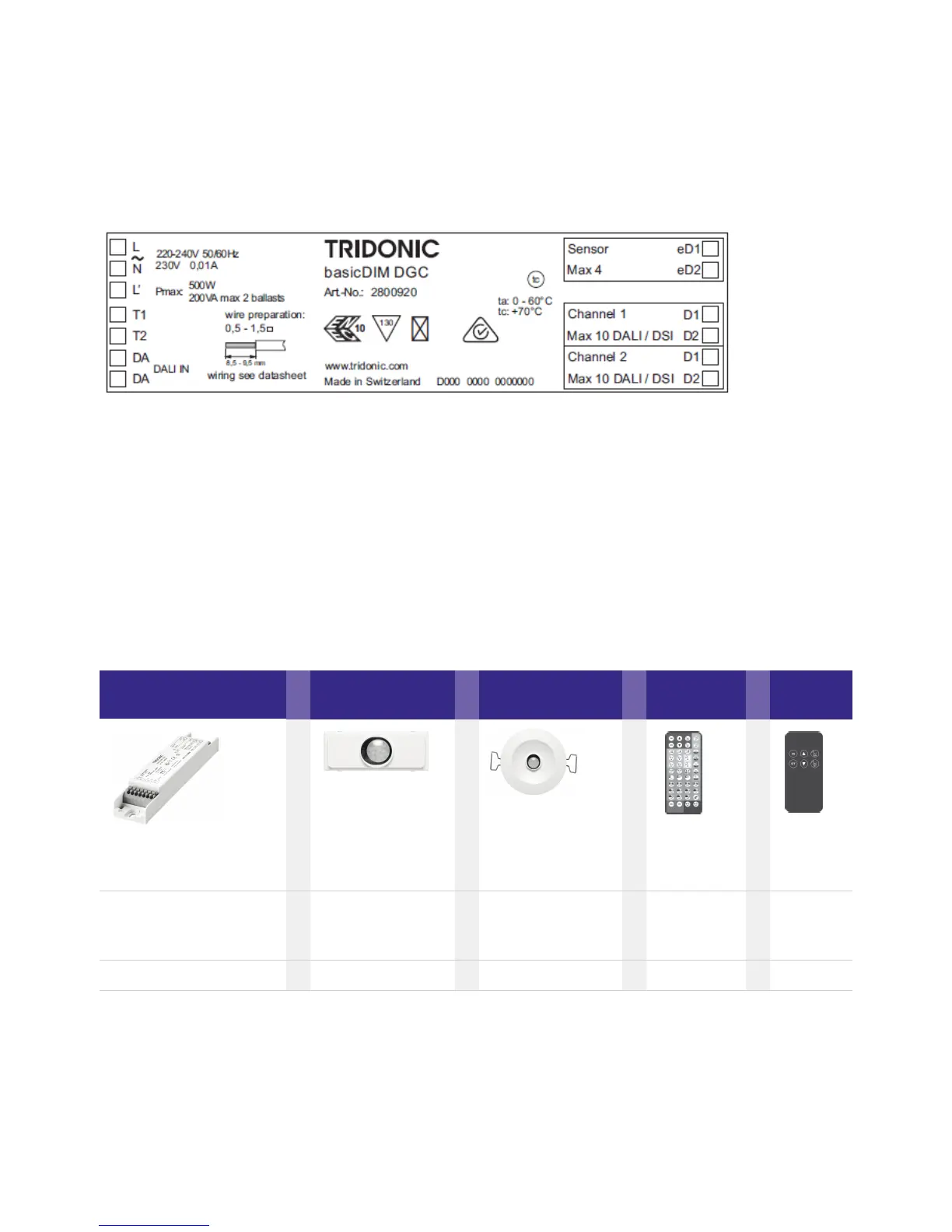

The DALI basicDIM DGC can be used as a single unit or in combination with basicDIM DGC 5DPI_14 sensors:
Digital controller
+ Sensor / Sensor +
Remote
control /
Remote
control
DALI basicDIM DGC basicDIM DGC Sensor
5DPI 14f inbuilt
basicDIM DGC Sensor
5DPI 14 rc remote
basicDIM DGC
Programmer
REMOTE-
CONTROL
IR6
(28000920) (28000933) (28000934) (28000646) (28000647)
...
Supply: 230 V AC 50/60 Hz_
1 relay output L' (max. 500W/200VA)_
T1, T2 Terminals for the connection of two local 230 V keys_
DALI IN input_
Sensor connection for up to 4 basicDIM DGC sensors_
For up to 20 DSI or DALI ballasts (max. 10 per output channel)_

Tridonic DALI basicDIM DGC Specifications

General

Brand	Tridonic
Model	DALI basicDIM DGC
Category	Controller
Language	English
