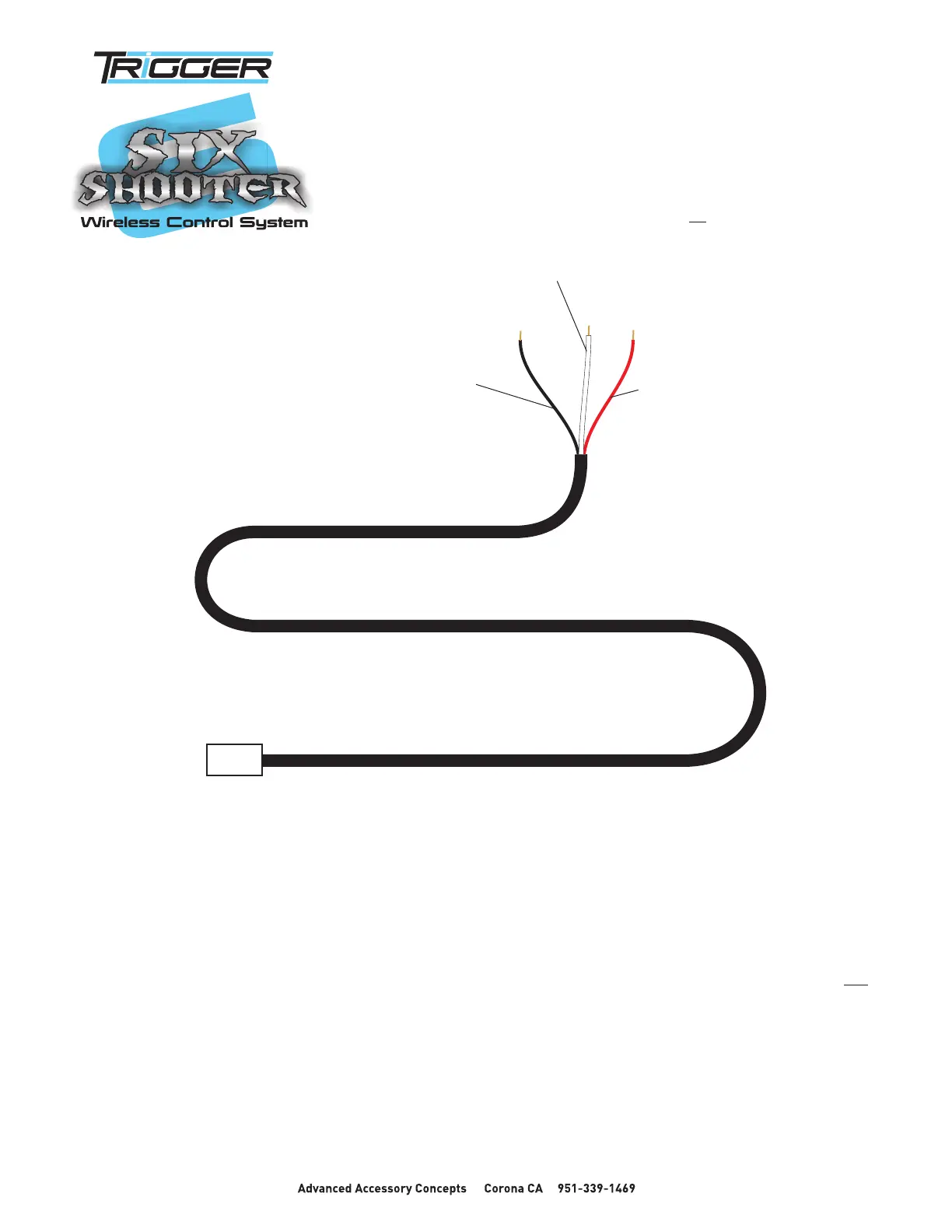

To Switch Base
Black to Ground (-)
Red to Switched Pos (+)
Controls individual switch
back lights
White to headlamp circuit or
Switched Pos (+)
For switch pad backlight
Wiring for the back lighting on the RF switch pad includes 3 wires for connection. The RED is used to back light
the individual switches when they are turned on and should be connected to switched ignition.
The WHITE wire is for the backlighting behind the switches and can be connected to the headlamp circuit OR to
the same place as the red wire (switched ignition). This allows the backlighting to come on only when the
headlights are on.
The black wire is for ground.
Wiring the RF remote for 12 volt power
