Trimax Snake - Disassemble Axle Fasteners

3

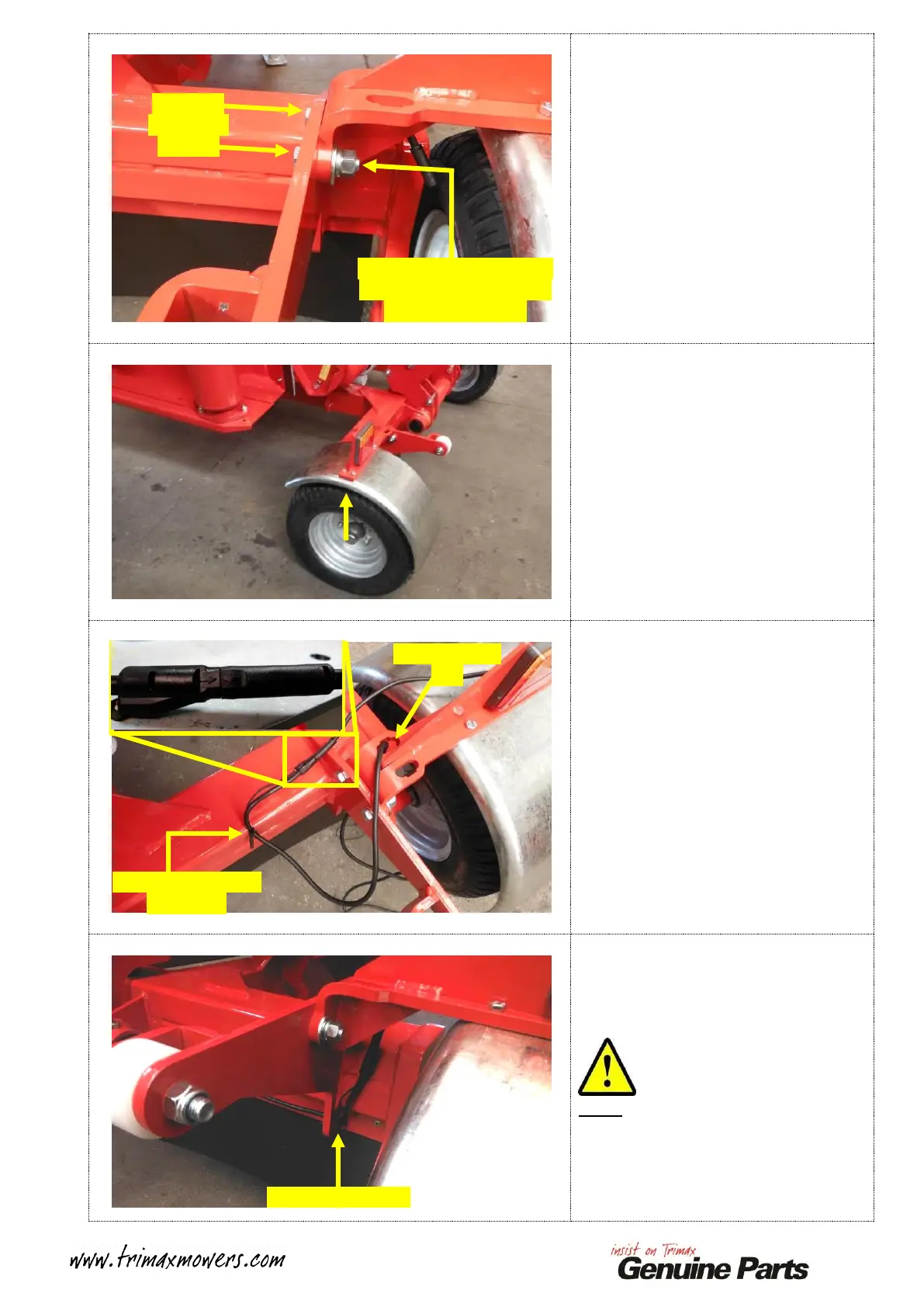

Insert two M12 x 40 Bolts with
MEDIUM STRENGTH THREAD
LOCKING COMPOUND applied
through the holes in the Chassis and
through the Mudguard Mount.
These are fitted from the INSIDE of
the Chassis.
Secure using M12 heavy flat washers,
M12 spring washers and M12 plain
nuts.
Fully tighten.
Repeat the above fitment to secure the
Left-Hand Mudguard Assembly to the
Snake Chassis.
The parts used are IDENTICAL.
Plug the Trailer Loom Ext. Cable
3.2m (421-000-055) into the
Right-Hand LED Light Cable.
Align the arrows to plug together.
Using a Cable Tie (210-900-010)
secure the Auxiliary Cable to the
Trailer Loom Ext. Cable.
Trim the tail off the Cable Tie.
Insert the Loom through the
Mudguard Mount (410-000-247)
Insert the Loom through the Rear
Roller Mount Plate as shown.
Note:
This is UNDERNEATH the Chassis
Rear Axle.
M12 x 40
Bolts from
this side
M12 Heavy Flat Washers,
Spring Washers and Plain
Nuts from this side
Loom through
here
Cable Tie Auxiliary
Cable here
Loom through here
