Trimble CFX-750 Quick Reference Card

7
OPERATION
Once you have enabled, configured and calibrated your Field-IQ crop
input control system, the Run screen appears (see page 1). This allows
you to control the application.
The LED has the following status indicators:
• Green – The unit is powered and is communicating with the
CFX-750 display.
• Yellow – The unit is initializing communications with the
CFX-750 display.
• Red – The unit is powered but not communicating with the
CFX-750 display.

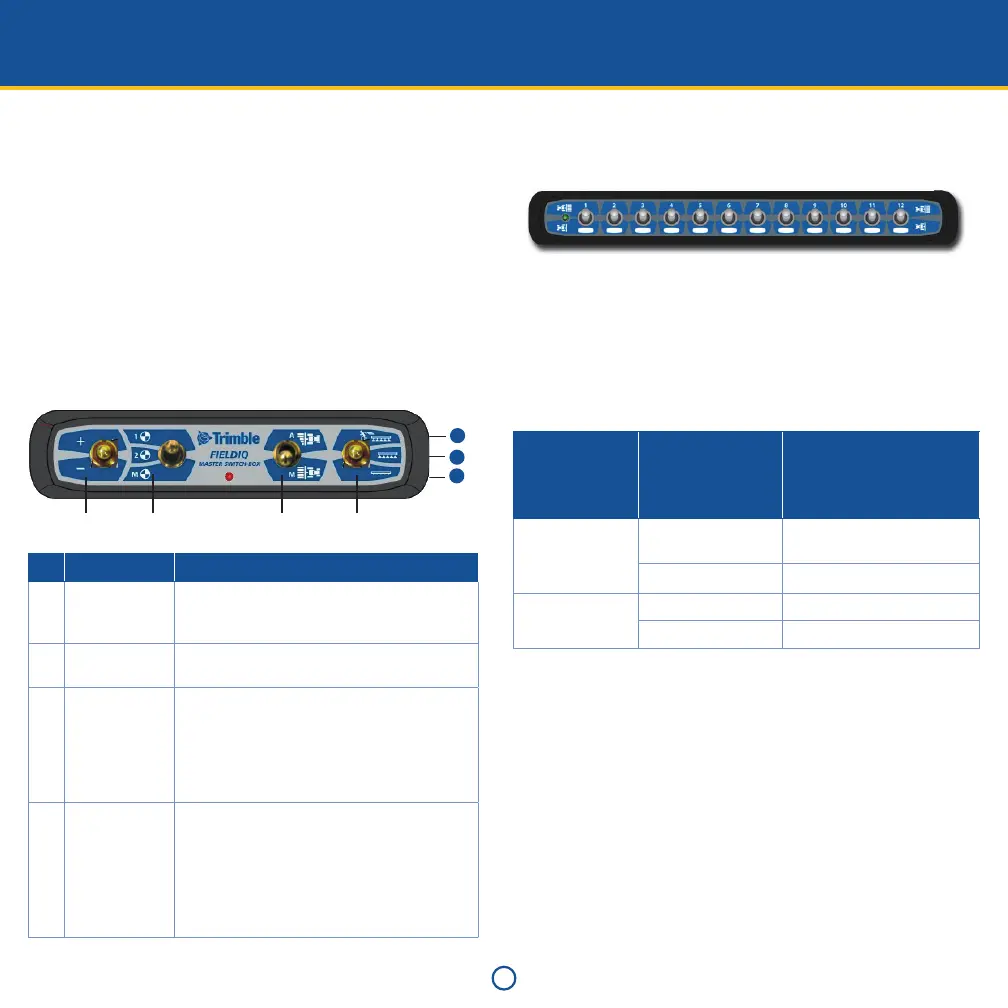

Field-IQ master switch box
All systems must have a Field-IQ master switch box.
Switch Functions
c
Increment/
decrement
Increases the applied amount by a set amount
(to set this amount, go to Material Setup /
Application Rate Setup / Rate).
d
Rate Choose preset Rate 1, preset Rate 2, or
Manual.
e
Automatic/
Manual
Automatic mode – Sections automatically
turn on and turn off sections when entering
areas of overlap, non-apply zones, or crossing
boundaries.
Manual mode – Sections are controlled
manually.
f
Master A. Jump start. The system is overridden to use
preset control speed. Use if you lose a GPS
signal or want to start applying before the
implement is up to speed.
B. On. Sections and rate ready to be
commanded by the display.
C. Off. Sections are closed, rate set to zero.
Field-IQ 12-section switch box
The 12-section switch box is required for section control. For rate
control only, the switch box is optional.
Only one section switch box can be used on each system. Each section
switch is automatically assigned to the corresponding module. The
modules are read from left to right. For example, switch 1 assigns to
the module furthest on the left when standing behind the implement.
The section switches have different functions, depending upon the
status of the master Automatic/Manual section switch on the master
switch box.
If the section
control switch
on the Master
Switch Box is
set to ...
and an individual
section switch
position on the
12-section switch
box is ...
then ...
Automatic Up / On the section is controlled by
the display.
Down / Off the section is off.
Manual Up / On the section is turned on.
Down / Off the section is off.
A
B
C
c d e f

Trimble CFX-750 Specifications

General

Resolution	800 x 600 pixels
GPS Compatibility	Yes
Power Supply	12 V DC
GNSS	GPS, GLONASS
Guidance	Yes
Mapping	Yes
Data Logging	Yes
ISOBUS	No
Display Type	Touchscreen
Connectivity	USB, CAN
Operating Temperature	-20°C to 55°C
Display Size	8.0 inches
