Trimble EZ-Guide 250 User Manual

Note: When the vehicle is on a guidance line, the line extends 1 km (0.6 miles) before Point A and 1 km beyond
Point B. This makes it easier to see where the next swath is, and to get online after the turn.
Mapping an AB Line
Drive to the start point of the master line.1.
Set the A point:2.
Press or until you have selected the icon.a.
Press . The A point is set.b.
Drive to the other end of the line.3.
Ensure that the icon is selected and then press . The master AB Line appears.4.
Turn left or right for the next swath. As you move toward the next swath, it appears on the screen and
turns orange to show that it is selected.
5.
A+ line
An A+ line is also a straight line. It is defined by a single point on the line (the A point) and the heading of the
line.

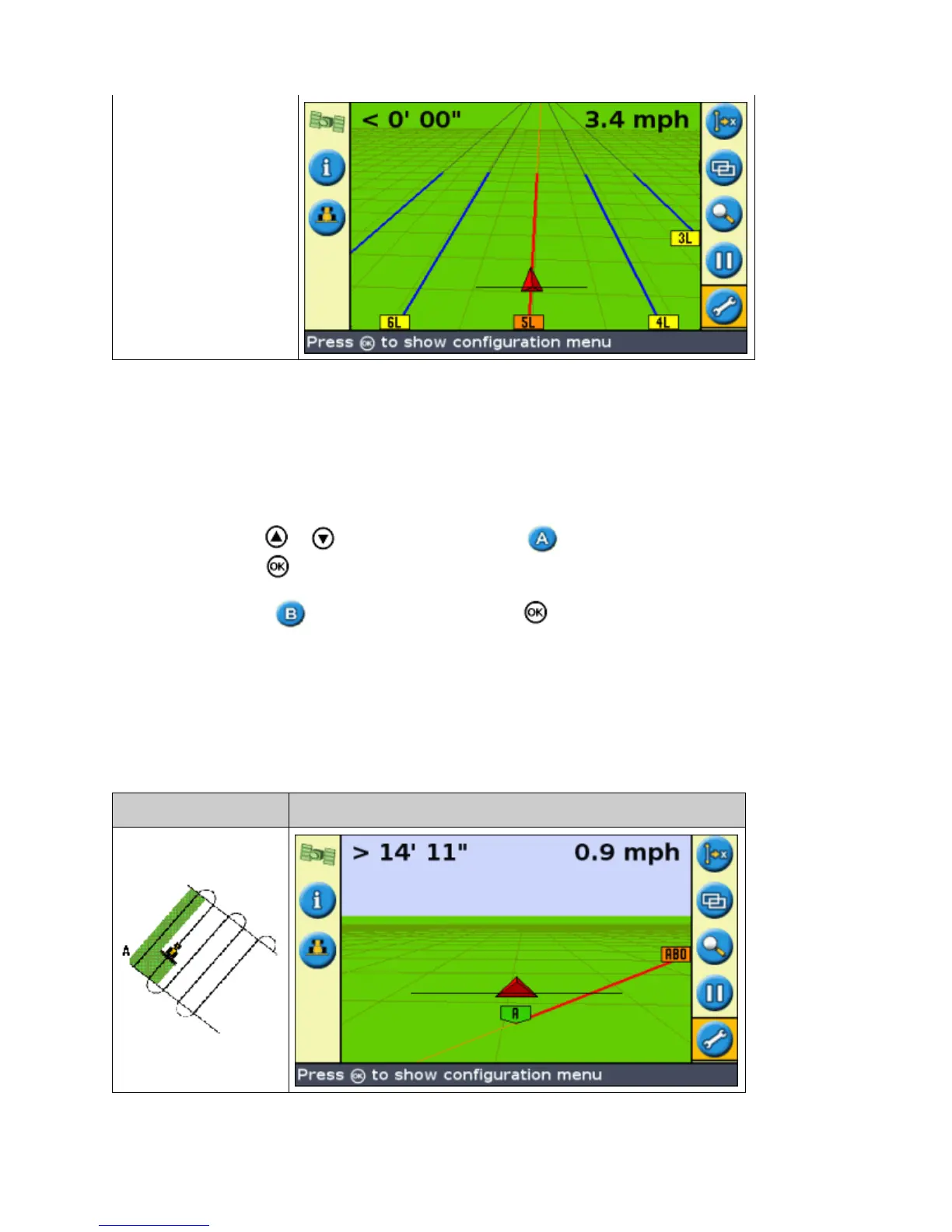

PATTERN EXAMPLE
20

Trimble EZ-Guide 250 Specifications

General

Display Size	4.3 inch
Update Rate	5 Hz
GNSS Support	GPS
Receiver Type	GPS
Guidance Modes	AB Line, Pivot
Operating System	Proprietary
Guidance Accuracy	6-8 inches with ব্যভার করা correction
Accuracy	6-8 inches pass-to-pass (with ব্যভার করা correction)
