Note: Always set the master line near the outer edge of the field.
Drive to the start point of the pivot.1.
Position one wheel of the vehicle in a pivot wheel rut, with the rear of the vehicle to the pivot arm. If the
field is not a full circle pivot, face the rear of the vehicle to the edge of the field.
2.
Set the A point:3.
Press or until you have selected the icon.a.
Press . The A point is set.b.
Drive around the field. Keep the vehicle wheel in the rut. The lightbar does not yet provide guidance.4.
When you have driven at least 1/4 of the pivot circumference, map Point B. The lightbar generates
guidance swaths.
5.
Turn left or right for the next swath. As you move toward the next swath, it appears on the screen and
turns orange to show that it is selected.
6.
Steer the vehicle so that the lit LEDs are centered on the lightbar as you drive forward along the swath.7.
Headland
The Headland pattern enables you to define the boundary ( "Headland" ) of the pattern, as well as the guidance
lines contained within it. Use the Headland pattern to give you room to turn.

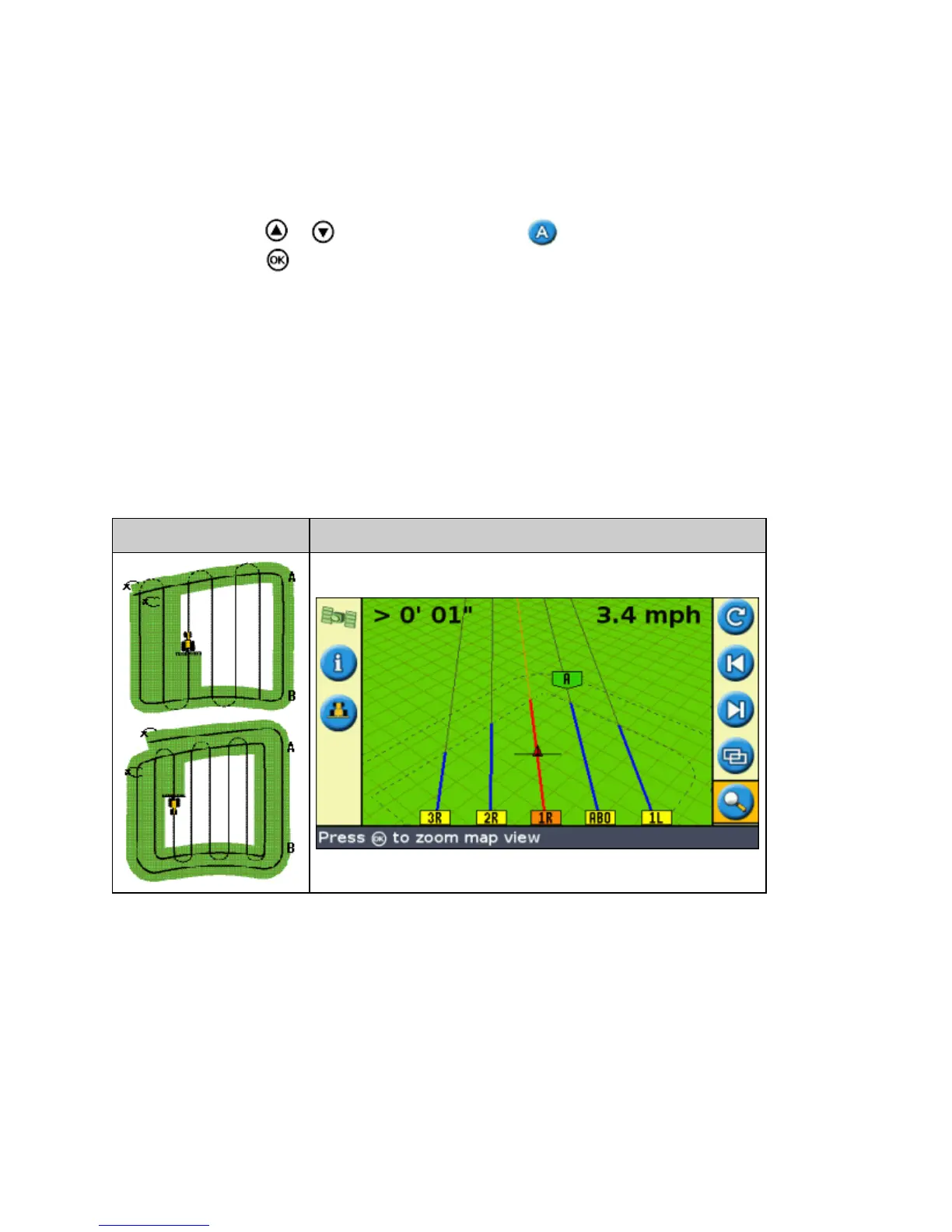

PATTERN EXAMPLE
You can change two settings for the Headland pattern:
The number of circuits•
The internal pattern (in Advanced mode only)•
Number of circuits
When you create a headland, you need to specify the total number of circuits (including the master
headland). This defines how wide the headland is.
