Drive to the start point of the headland.1.
Select the icon and then press to set the start point of the headland.2.
Begin to drive the circuit of the headland.3.
Note: To ensure straight sides on the headland, you can use the pause feature. See Straight sections on
curves.
While you are driving the circuit, set the A point of your guidance line.4.
When you have defined the internal pattern guidance line, the start−point circle appears around the start
point of the headland.
Note: If you return to the start of the headland before you define a guidance line, the headland will not
complete.
To complete the headland, do one of the following:5.
Drive around the rest of the headland and then drive back into the start−point circle. When you
drive into the start−point circle, the headland is defined.
♦
Select the icon and then press . The headland completes with a straight line from the
vehicle position to the start point.
♦
The headland guidance line appears.
When the vehicle moves out of the headland and into the interior of the pattern, the interior is populated
with guidance lines (straight AB or A+, depending on which internal pattern you selected).

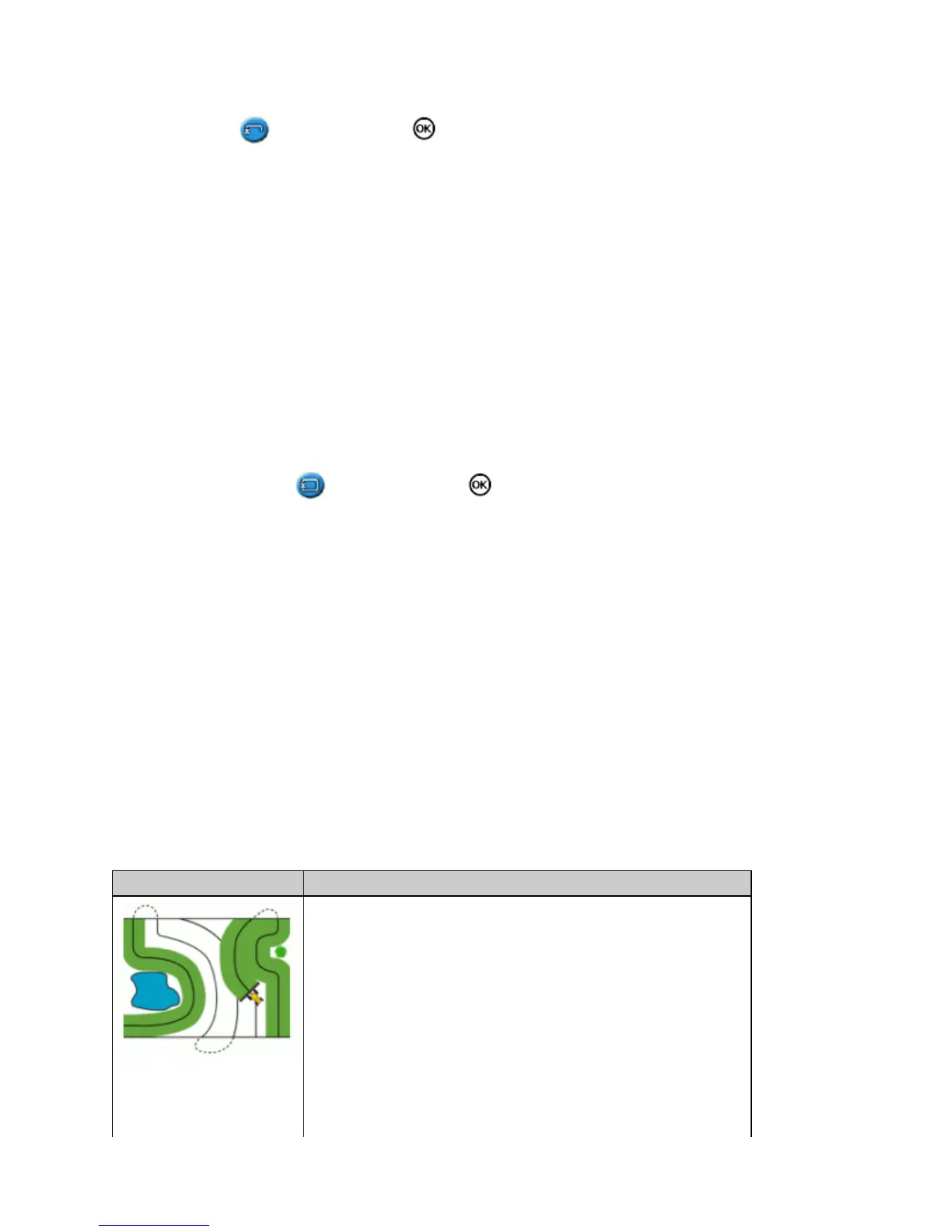

FreeForm
The FreeForm(TM) guidance pattern is an advanced pattern that enables you to create multiple lines of different
types in a single field to obtain guidance in fields of any shape. You need to record each line that you drive, to
generate the next guidance line. You can create:
Curved line segments•
Straight line segments in the form of straight AB lines•
With this combination, the FreeForm pattern can be useful for creating non−circular spirals or multiple curved
guidance lines for irregular−shaped fields.
PATTERN EXAMPLE
27
To Next Page
