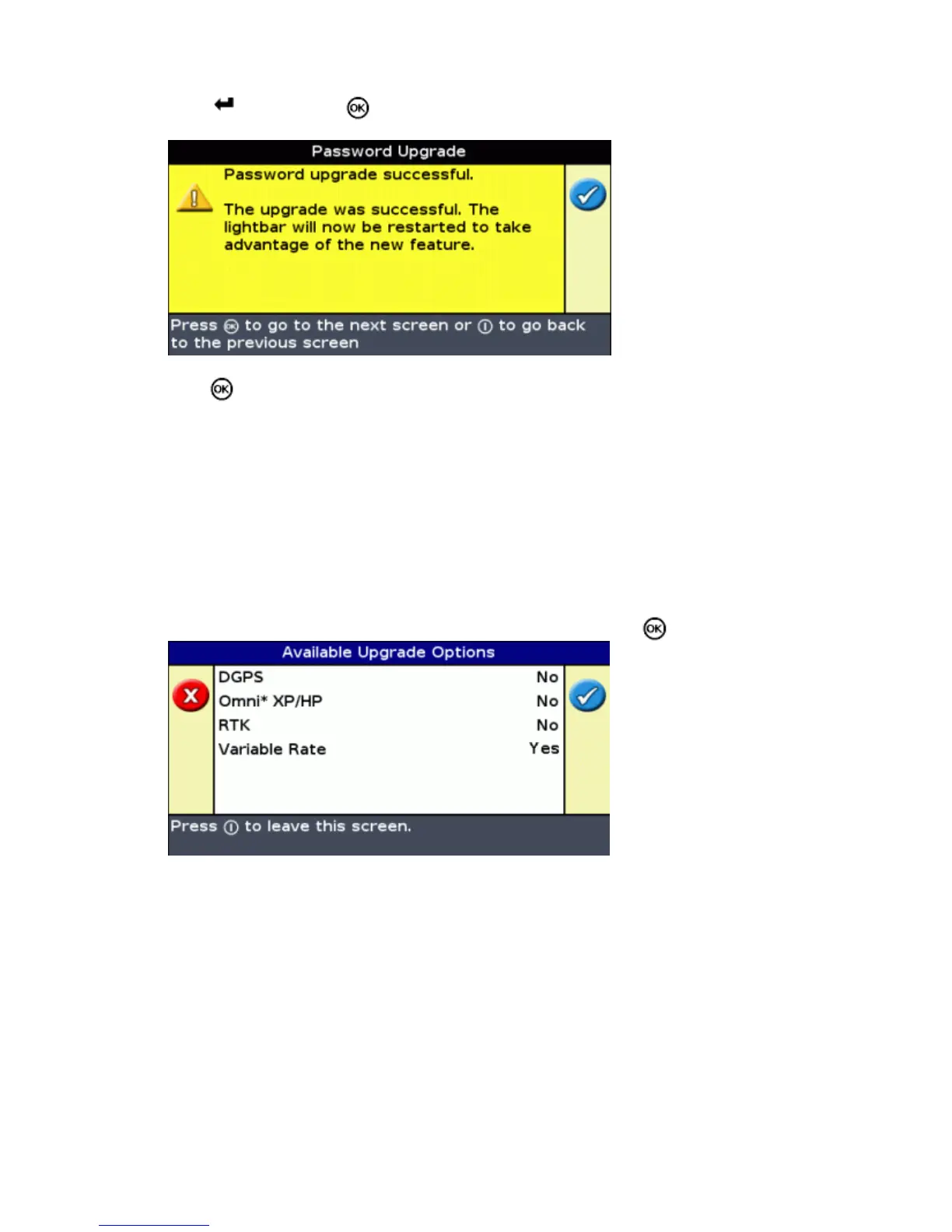

Select and then press . A screen with an hourglass appears for a few seconds and then the
following screen appears:
4.
Press . The lightbar restarts with the new functionality enabled.
Note: If the message says "Password upgrade failed. The password entered was not valid.", try entering
the password again. If it fails again, contact your local reseller.
Confirm VRA Upgrade
To confirm that the Variable Rate Application (VRA) upgrade is activated correctly, view the Available Upgrade
Options status screen. To do this:
Select Configuration / Status / Available Upgrade Options and press .1.
Confirm that Variable Rate displays Yes.2.
3

Other manuals for Trimble EZ-Guide 500

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Trimble EZ-Guide 500 and is the answer not in the manual?

Trimble EZ-Guide 500 Specifications

General IconGeneral
Update Rate5 Hz
Power Supply12-24 VDC
Display TypeColor LCD
GPS ReceiverIntegrated
PortsSerial, USB
Operating Temperature-20°C to +60°C
Weight1.25 lbs
MemoryInternal storage
DGPS Accuracy6-8 inches (15-20 cm) pass-to-pass
