Trimble EZ-Guide 500 User Manual

2 Connecting to an EZ-Boom System
10 EZ-Guide 500 System Cabling Guide
EZ-Guide 500 system with the EZ-Boom 2010 system

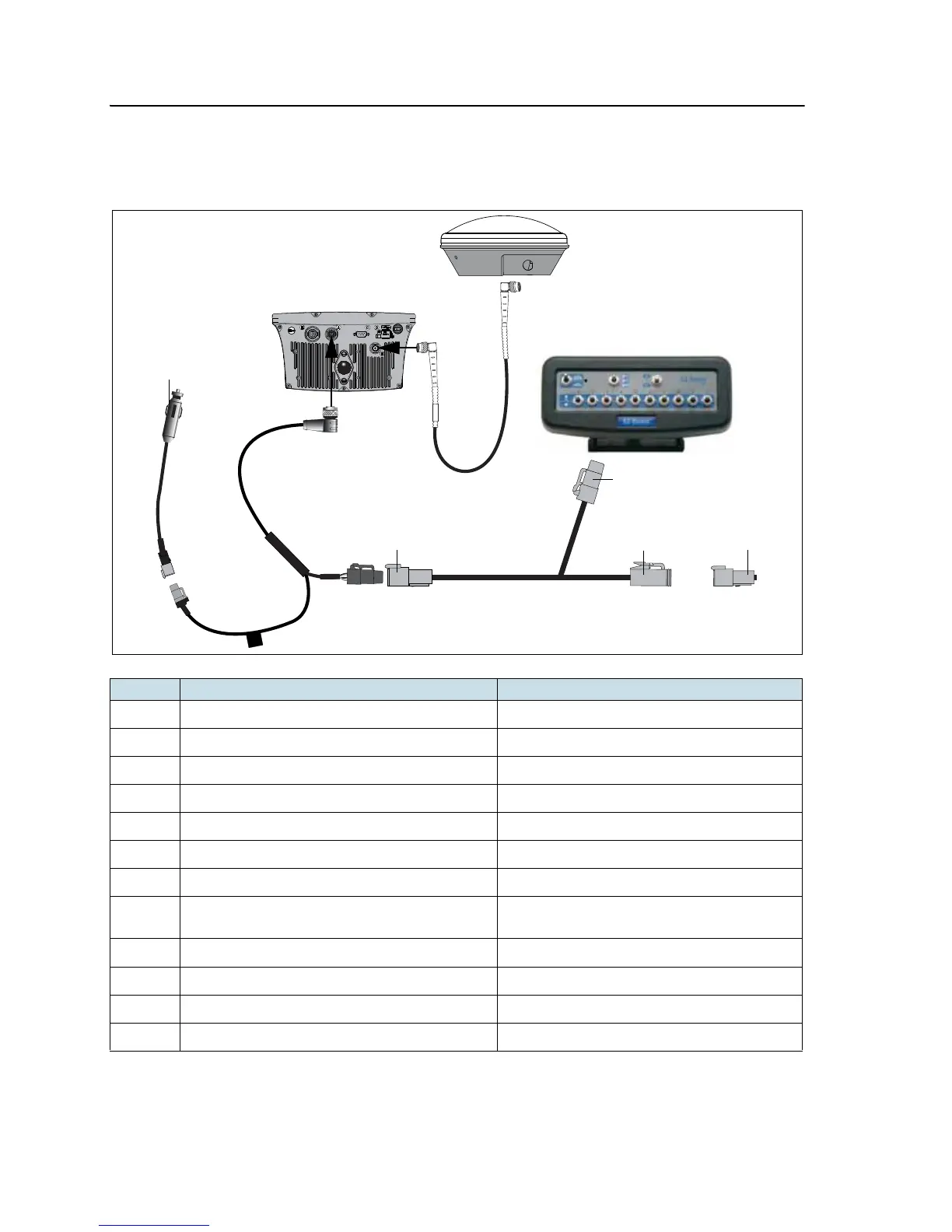

This figure shows how to connect the lightbar to the EZ-Boom 2010 system:
Item Description Part number
c
EZ-Boom controller –
d
CAN terminator 59783
e
EZ-Boom cable 61437
f
Power cable 62817
g
Power connector cable 62818
h
EZ-Guide 500 lightbar 66100-xx
i
GPS antenna cable 50449
j
GPS antenna 60600-02 (DGPS)
77038-00 (OmniSTAR/RTK)
k
“P3“connector –
l
“P1“connector –
m
“S3“connector –
n
To power –
LABELL
ABEL
c
d
e
f
g
h
i
j
k
l
m
n

Trimble EZ-Guide 500 Specifications

General

Update Rate	5 Hz
Power Supply	12-24 VDC
Display Type	Color LCD
GPS Receiver	Integrated
Ports	Serial, USB
Operating Temperature	-20°C to +60°C
Weight	1.25 lbs
Memory	Internal storage
DGPS Accuracy	6-8 inches (15-20 cm) pass-to-pass
