Trimble EZ-Guide 500 - EZ-Steer 500 system with EZ-Boom 2010

EZ-Guide 500 System Cabling Guide 11
Connecting to an EZ-Boom System 2
EZ-Steer 500 system with EZ-Boom 2010 system

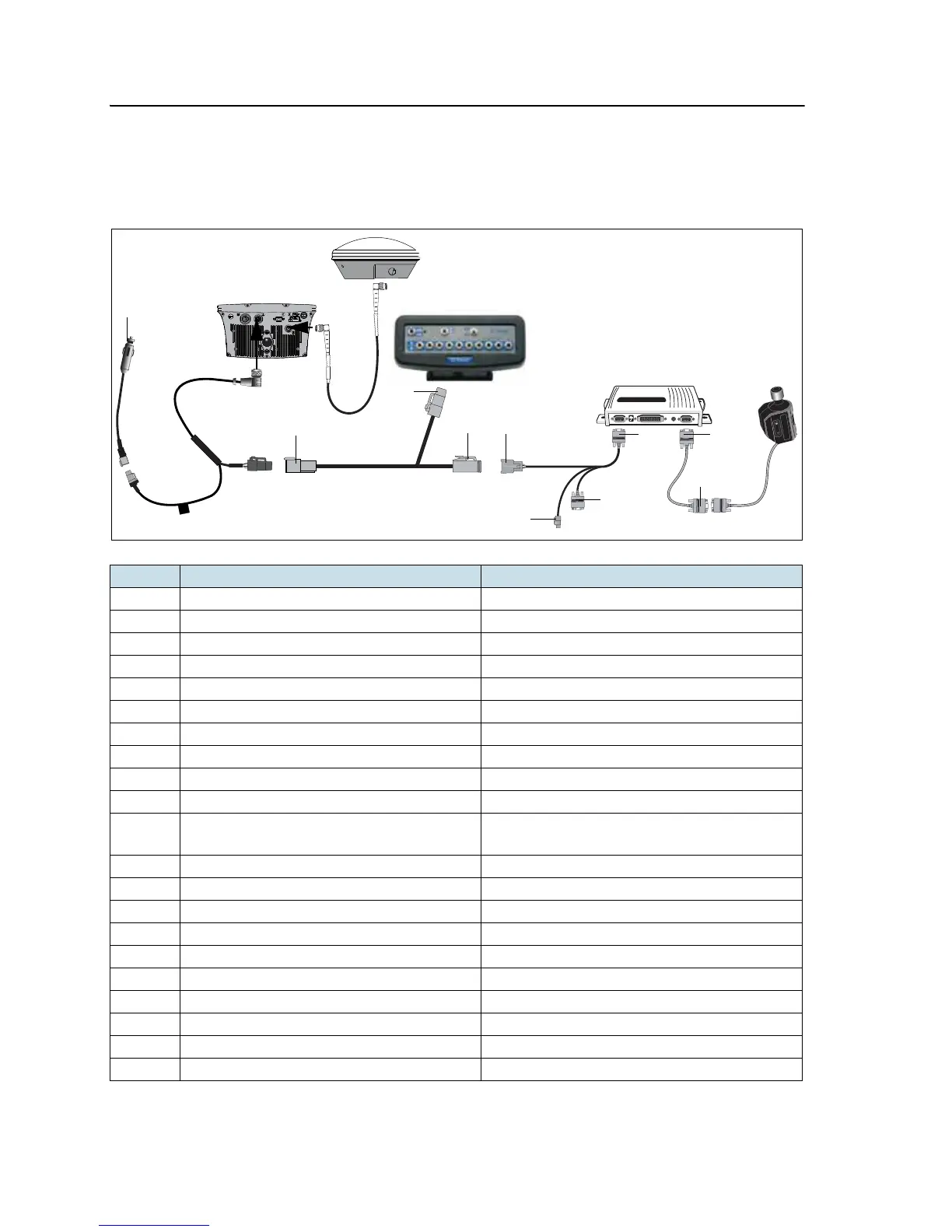

This figure shows how to connect the EZ-Steer 500 system to the EZ-Boom 2010
system:
Item Description Part number
A EZ-Boom controller –
B EZ-Steer controller –
C EZ-Steer motor 53058-00
D EZ-Steer motor cable 62257
E EZ-Steer extension cable 62974
F EZ-Boom cable 61437
G Power cable 62817
H Power connector cable 62818
I EZ-Guide 500 lightbar 66100-xx
J GPS antenna cable 50449
K GPS antenna 60600-02 (DGPS)
77038-00 (OmniSTAR/RTK)
1 “P2” connector –
2 “P1” connector –
3 “R2” connector –
4 Laptop connector (for firmware upgrade) –
5 Alternate power connector –
6 “S1” connector –
7 “P3“connector –
8 “P1“connector –
9 “S3“connector –
10 To power –
LABELL
AB
EL
A
B
C
1
2
D
3
6
5
E
J
K
F
8
7
9
G
H
10
I
4
