Trimble EZ-Guide 500 - EZ-Steer 500; EZ-Boom; 450 MHz RTK Radio

EZ-Guide 500 System Cabling Guide 13
Connecting to an EZ-Boom System 2
EZ-Steer 500 system / EZ-Boom system / 450 MHZ RTK radio

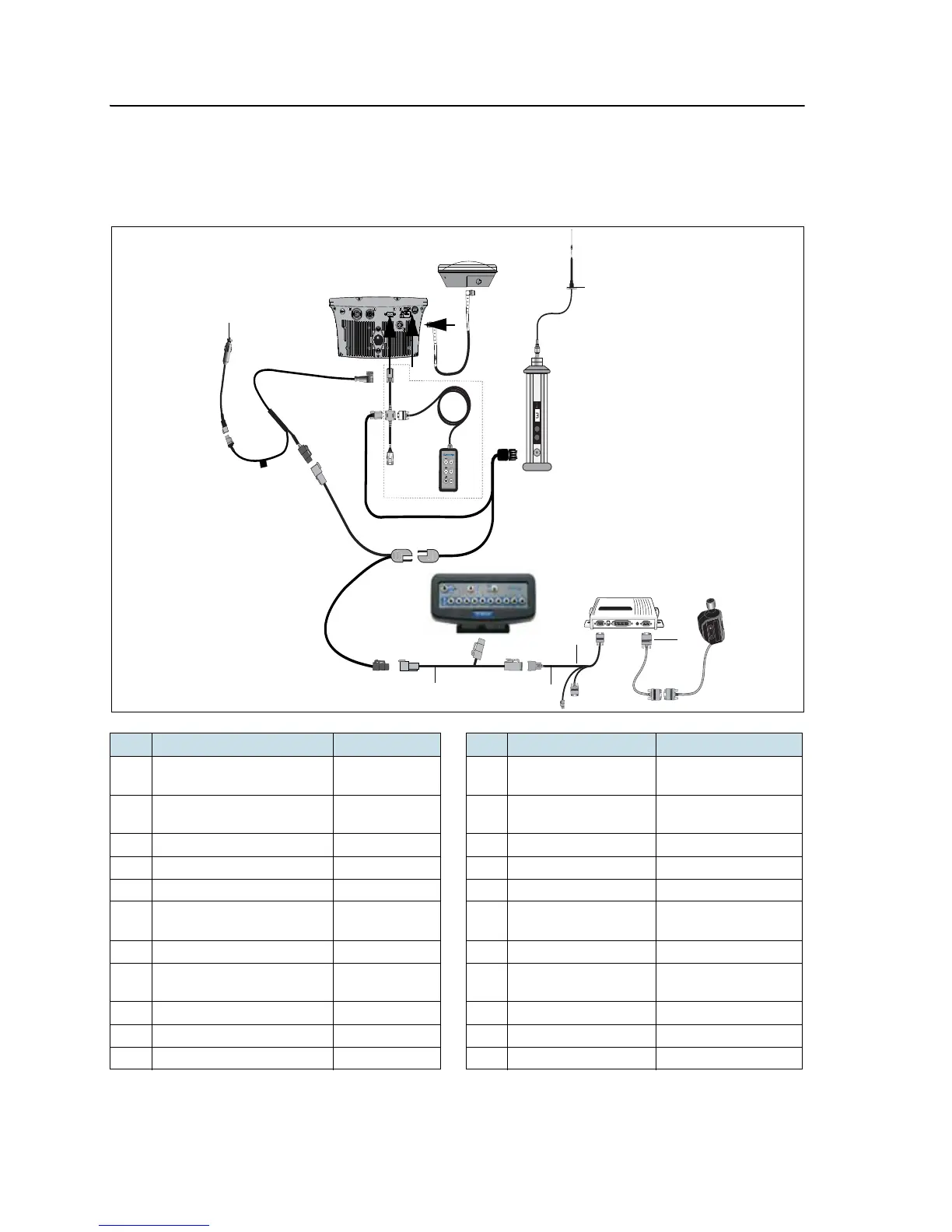

This figure shows how to connect the EZ-Steer 500 system to an EZ-Boom 2010 system
with a 450 MHz radio for RTK corrections:
Item Description Part number Item Description Part number
A Radio antenna 51870-x0-x0 N Power connection
cable
62818
B Radio antenna magnetic
mount
62109 O EZ-Guide 500 lightbar 66100-xx
C Radio antenna connector 63278 P GPS antenna cable 50449
D PDL 450 MHz radio 62550-4x-xx Q GPS antenna 77038-00
E Remote keypad (optional) 66030-00 1 “P2” connector “P2” connector
F External interface cable 62749 2 Laptop connector (for
firmware upgrade)
–
G PDL radio power/data cable 51861-00 3 “S1” connector –
H EZ-Boom controller – 4 Alternate power
connector
–
I EZ-Steer controller – 5 “P3“connector –
J EZ-Steer extension cable 62974 6 “P1“connector –
K EZ-Boom cable 61437 7 “S3“connector –
L
ABEL
A
B
C
D
F
G
E
H
I
2
1
J
4
3
5
6
7
L
K
8
N
M
Q
P
O
