4 Connecting to an EZ-Steer System
30 EZ-Guide 500 System Cabling Guide
EZ-Steer 500 system / EZ-Boom system / SNB900 RTK Rover
Radio

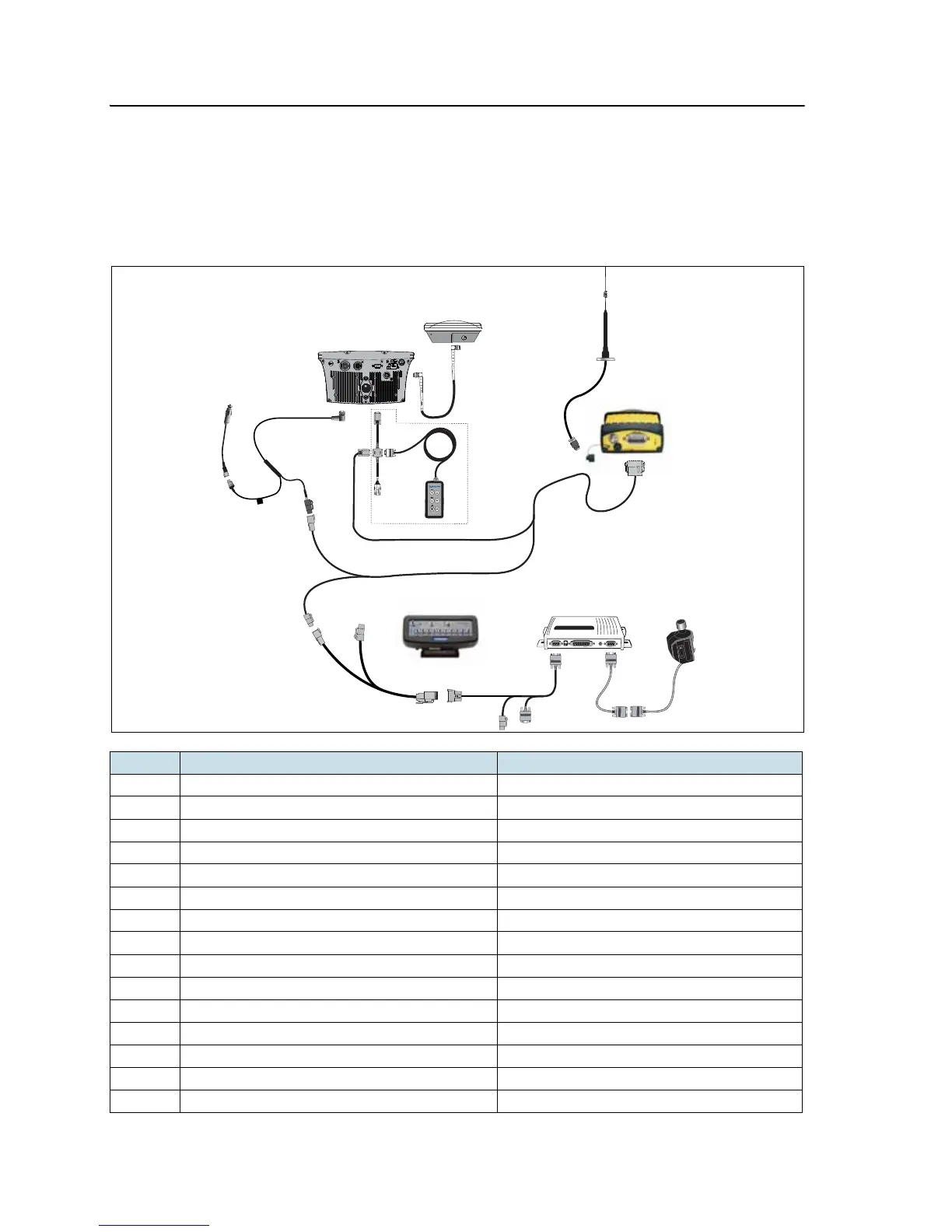

This figure shows how to connect an EZ-Boom system to an EZ-Steer 500 system using
an SNB900 RTK rover radio for corrections:
Item Description Part number
A GPS antenna 77038-00
B GPS antenna cable 50449
C Remote keypad (optional) 66030-00
D External interface cable 62749
E EZ-Boom controller -
F EZ-Steer controller -
G EZ-Steer motor 53058-00
H EZ-Steer motor cable 62257
I EZ-Steer extension cable 62974
J EZ-Boom cable 61437
K EZ-Guide 500 to SNB900R 74798
L SNB900R radio 66768-00-xx
M Radio antenna 22882-00
N Power cable 62817
O Power connector cable 62818
L
ABEL
A
B
C
D
F
G
E
H
I
J
K
L
M
O
P
Q
N
