Trimble EZ-Guide 500 - EZ-Guide 500; Autopilot; 900 MHz RTK

5 Connecting to an AgGPS Autopilot System
42 EZ-Guide 500 System Cabling Guide
EZ-Guide 500 / Autopilot / 900 MHz RTK corrections

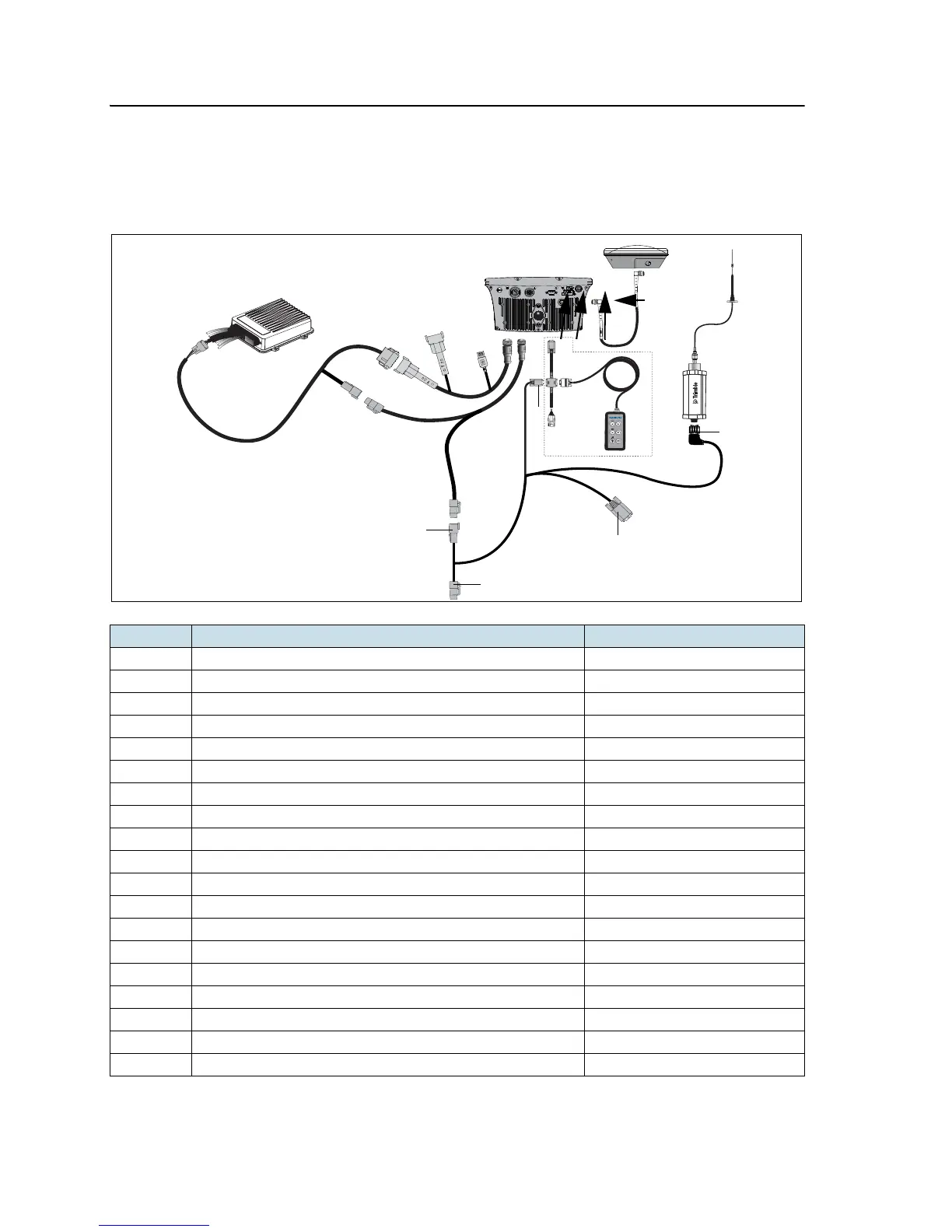

This figure shows how to connect an EZ-Guide 500 lightbar to an AgGPS Autopilot
system with RTK corrections:
Item Description Part number
A Radio antenna 22882-00
B Radio antenna magnetic mount 62109
C Radio antenna connector 46740
D SiteNet radio –
E Remote keypad (optional) 66030-00
F External interface cable 62749
G EZ-Guide 500-to-radio cable 62082
H EZ-Guide 500 power cable 62817
I EZ-Guide 500-to-Autopilot cable 62754
J AgGPS Autopilot controller –
K Port expansion cable 62609
L EZ-Guide 500 lightbar 66100-xx
M GPS antenna cable 50449
N GPS antenna 77038-00
1 “P1” (radio) connector –
2 “P4” connector –
3 “P3” connector –
4 “P2” connector –
5 “S5” connector –
L
ABEL
C
B
A
D
1
E
F
2
3
G
4
H
5
I
N
M
L
K
J
