Trimble EZ-Guide 500 - EZ-Guide 500; Autopilot; 450 MHz RTK

EZ-Guide 500 System Cabling Guide 43
Connecting to an AgGPS Autopilot System 5
EZ-Guide 500 / Autopilot / 450 MHz RTK corrections

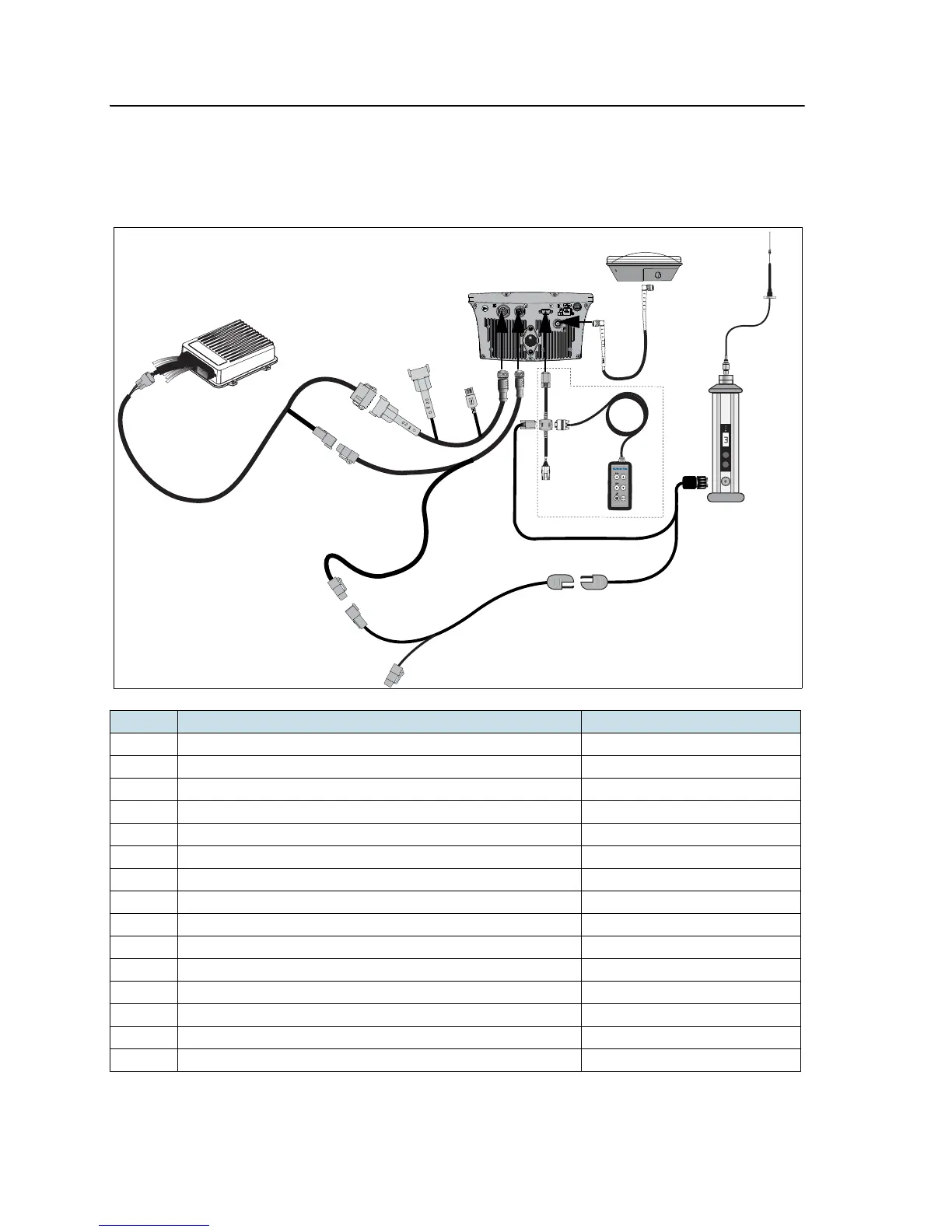

This figure shows how to connect an EZ-Guide 500 lightbar to an AgGPS Autopilot
system with 450 MHz RTK corrections:
Item Description Part number
A Radio antenna 51870-x0-x0
B Radio antenna magnetic mount 62109
C Radio antenna connector 63278
D PDL 450 radio 62550-4x-xx
E Remote keypad (optional) 66030-00
F External interface cable 62749
G PDL radio power/data cable 51861-00
H Power tap to PDL radio 63185
I EZ-Guide 500 power cable 62817
J EZ-Guide 500-to-Autopilot cable 62754
K AgGPS Autopilot controller –
L Port expansion cable 62609
M EZ-Guide 500 lightbar 66100-xx
N GPS antenna cable 50449
O GPS antenna 77038-00
L
ABEL
H
J
B
I
G
C
E
F
D
A
K
L
M
N
O
