EZ-Guide 500 System Cabling Guide 47
Connecting to an AgGPS Autopilot System 5
EZ-Guide 500 system / Autopilot / Ag 3000 Modem

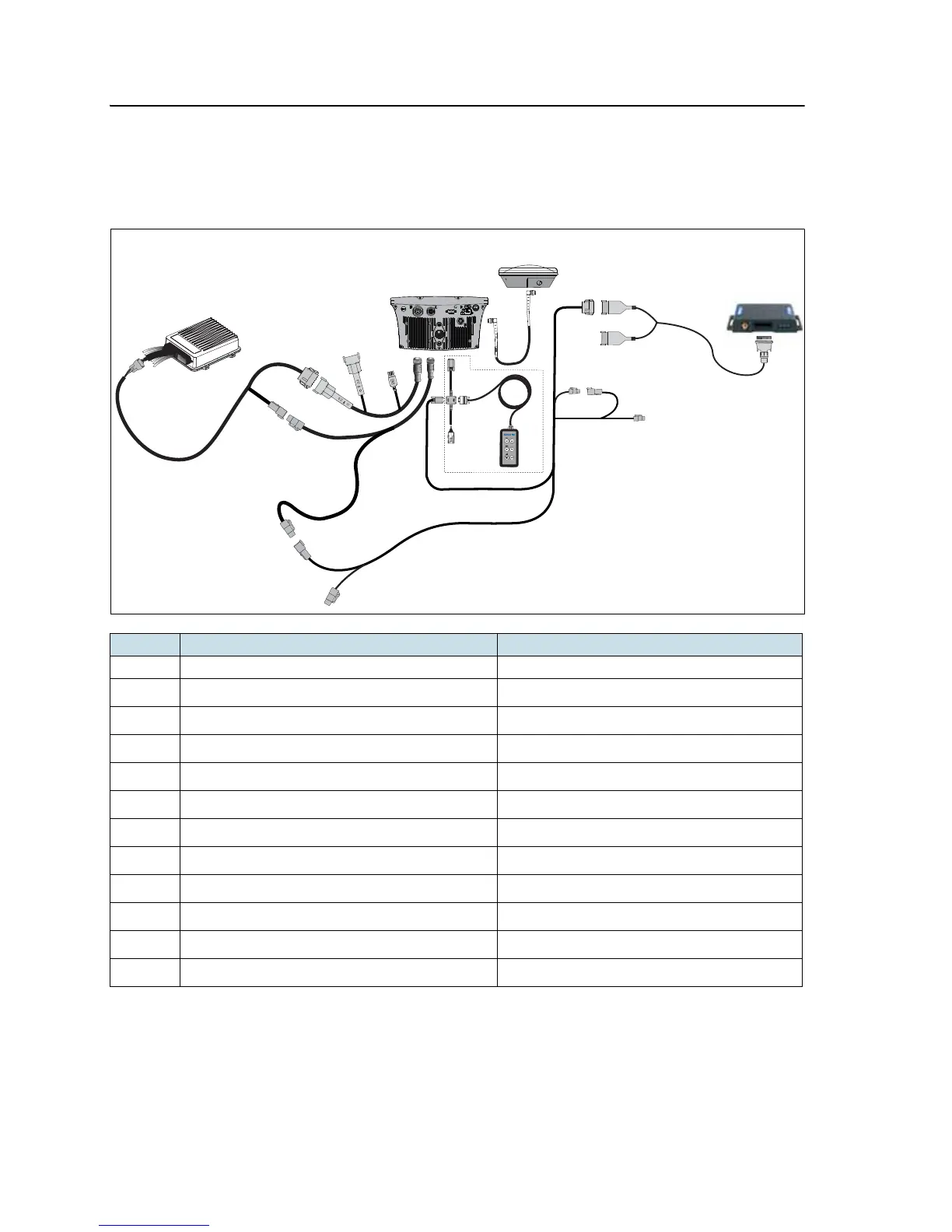

This figure shows how to connect an EZ-Guide 500 lightbar to an Autopilot using an
Ag3000 modem:
Item Description Part number
c EZ-Guide 500 lightbar 66100-xx
d
GPS antenna 77038-00
e
Ag3000 breakout cable 70433
f
Ag3000 interface cable 72639
g
Remote keypad: optional 66030-00
h
AG3000 modem 68600-xx
i
Power cable 62817
j
Port expansion cable 62609
k
EZ-Guide 500 to Autopilot cable 62754
l
AgGPS Autopilot controller -
m
GPS antenna cable 50449
n
External interface cable 62749
L
ABEL
c
d
e
f
h
m
n
g
j
i
k
l
