Trimble EZ-Guide 500 - EZ-Guide 500; Autopilot; SNB900 Rover RTK

5 Connecting to an AgGPS Autopilot System
48 EZ-Guide 500 System Cabling Guide
EZ-Guide 500 system / Autopilot / SNB900 Rover RTK Radio

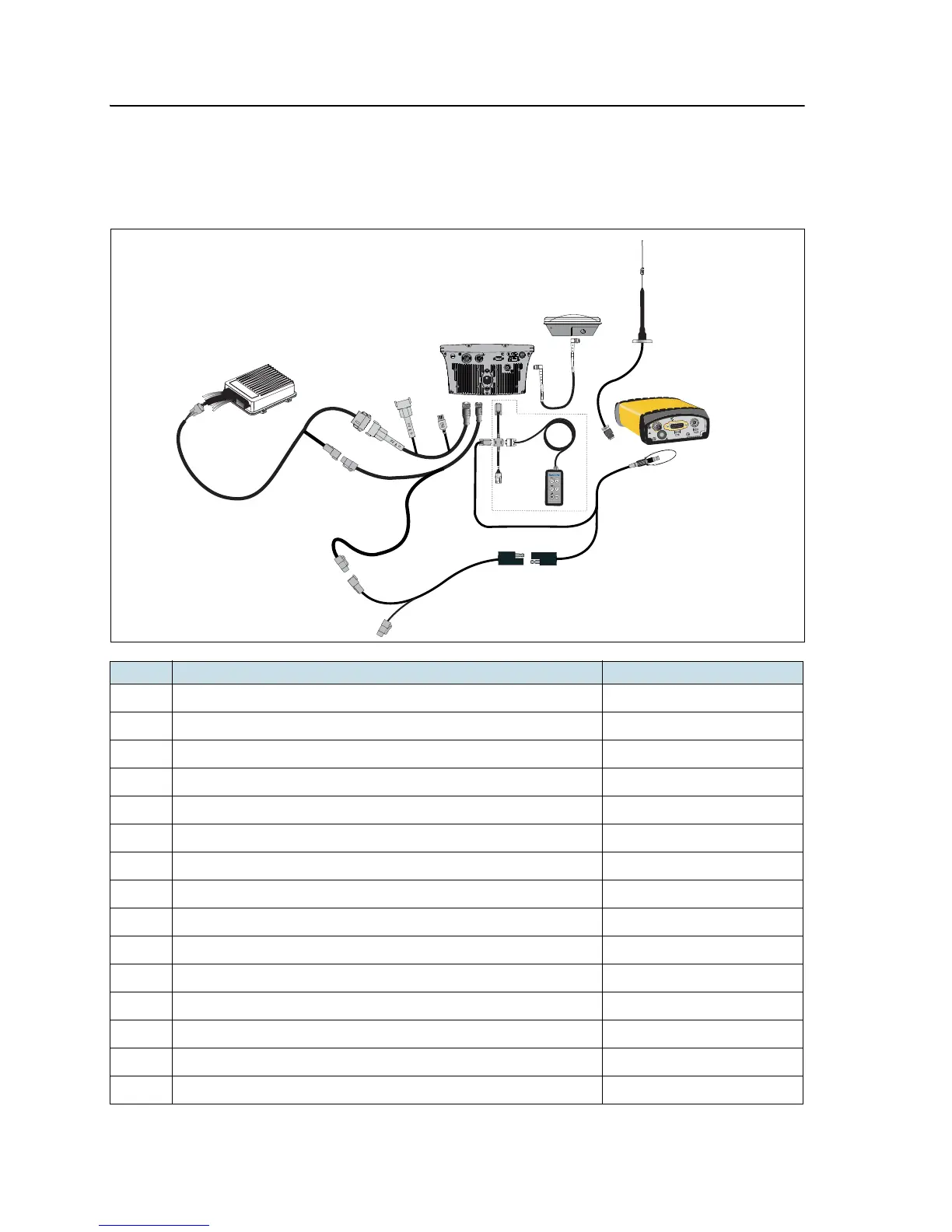

This figure shows how to connect an EZ-Guide 500 lightbar system to an Autopilot
system using an SNB900 rover RTK radio for corrections.
Item Description Trimble part number
c
EZ-Guide 500 lightbar 66100-xx
d
GPS antenna 77038-00
e
SNB900 radio antenna 22882-00
f
SNB900 radio antenna magnetic mount 62109
g
GPS antenna cable 50449
h
N Female to REV. POL TNC Male 62114
i
SNB900 radio X8480-X0
j
Remote keypad (optional) 66030-00
k
External interface cable 62749
l
Radio power/data cable 61158
m
EZ-Guide 500 power cable 62817
n
EZ-Guide 500-to-Autopilot cable 62754
o
NavController II 55563-00
p
Port expansion cable 62609
q
Power tap to PDL radio 63185
L
ABEL
ETHERNET
REVERSE
POLARITY
AUDIO
VENT: DO NOT REMOVE
e
f
g
d
c
h
i
j
k
l
m
n
o
p
q
