Trimble EZ-Guide 500 - EZ-Guide 500; Autopilot; SNB900 Rover RTK Radio

EZ-Guide 500 System Cabling Guide 53
Connecting to Factory Ready Autopilot System 6
EZ-Guide 500 system / Autopilot / SNB900 Rover RTK Radio

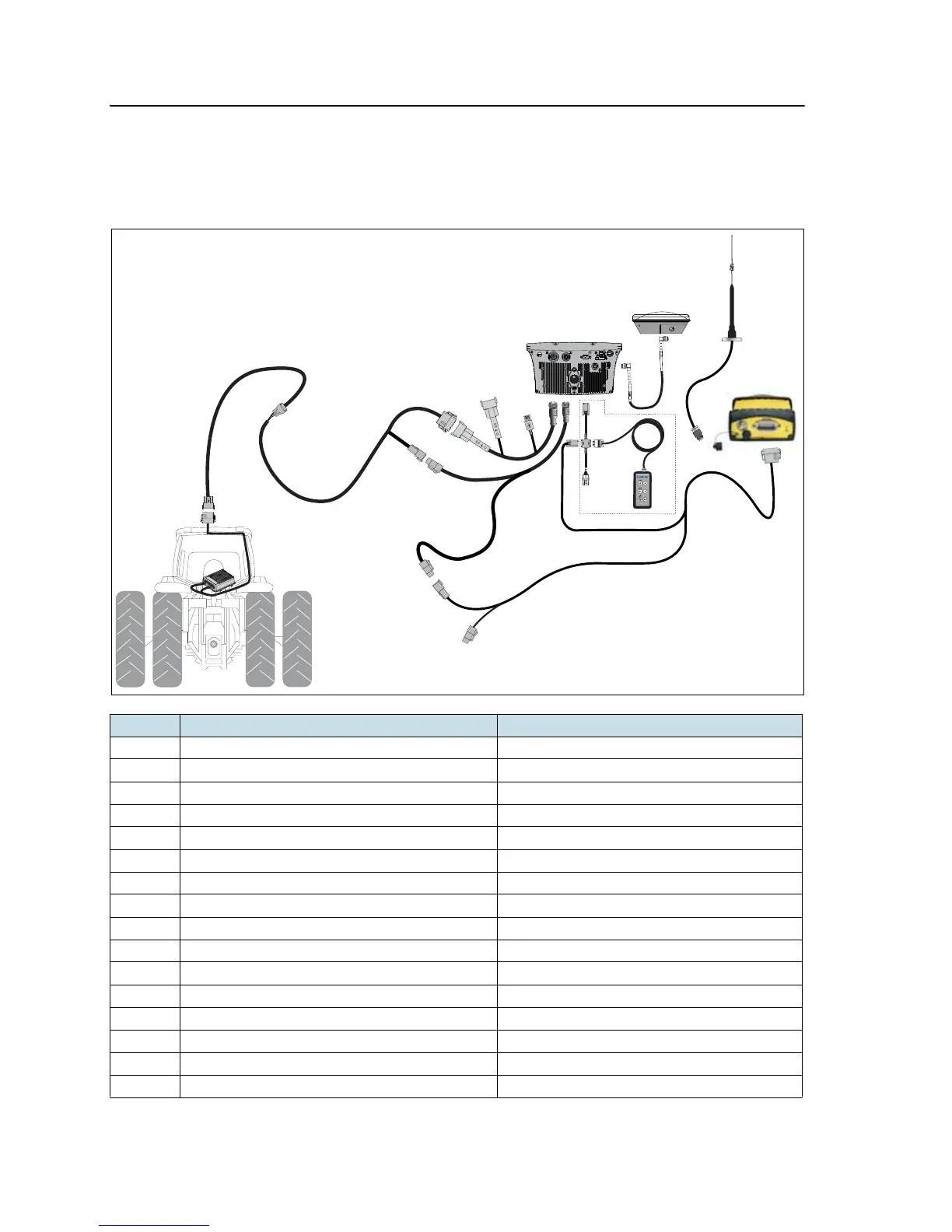

This figure shows how to connect and EZ-Guide 500 system to an Autopilot system
using an SNB900 rover RTK radio for corrections.
Item Description Part number
c EZ-Guide 500 lightbar 66100-xx
d GPS antenna 77038-00
e 900 MHz radio antenna kit 22882-10
f Antenna cable, magnetic base NMO-to-TNC 72122
g GPS antenna cable 50449
h N Female to REV. POL TNC Male 62114
i SNB900 radio 66768-00-XX
j Remote keypad: optional 66030-00
k CNH Hybrid to GPS cable 67120
l NAVController II 55563-00
m Factory-installed harness -
n EZ-Guide 500-to-Autopilot cable 62754
o Port expansion cable 62609
p External interface cable 62749
q EZ-Guide 500 power cable 62817
r EZ-Guide 500 to SNB900R 74798
L
ABEL
c
d
e
f
g
h
k
j
i
n
m
l
o
p
q
r
