7 Connecting to a Serial Variable Rate Controller
58 EZ-Guide 500 System Cabling Guide
Raven Variable Rate Controller

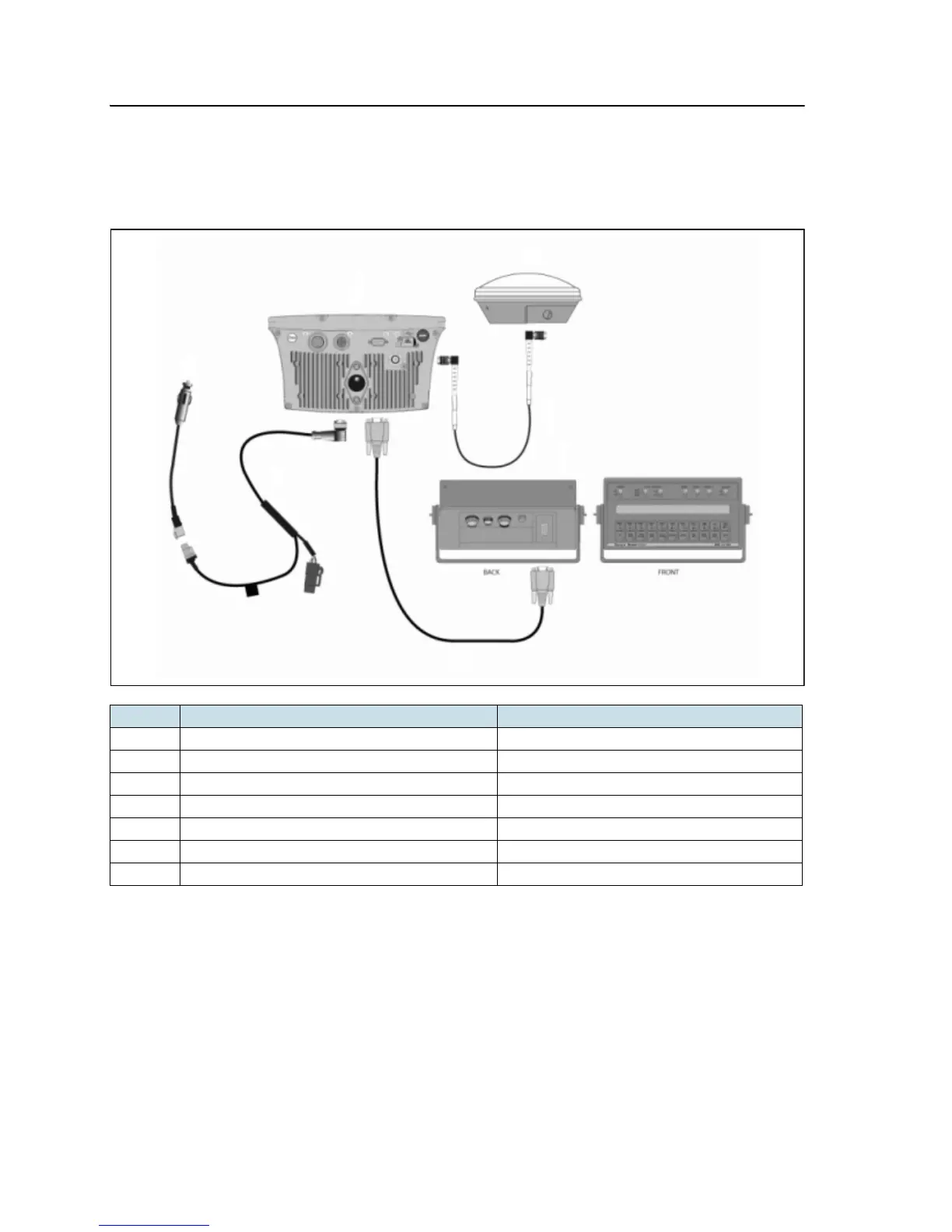

This figure shows how to connect the Raven variable rate controller to the EZ-Guide
500 lightbar COM port.
Item Description Part number
c EZ-Guide 500 lightbar 66100-xx
d Antenna 60600-02 (DGPS), 77038-00 (OmniSTAR/RTK)
e Antenna cable 50449
f EZ−Guide 500 power cable 62817
g To power –
h Raven to EZ−Guide 500 cable 69729
i Raven SCS 400 or 600 series controller –
c
d
e
f
g
h
i
