7 Connecting to a Serial Variable Rate Controller
60 EZ-Guide 500 System Cabling Guide

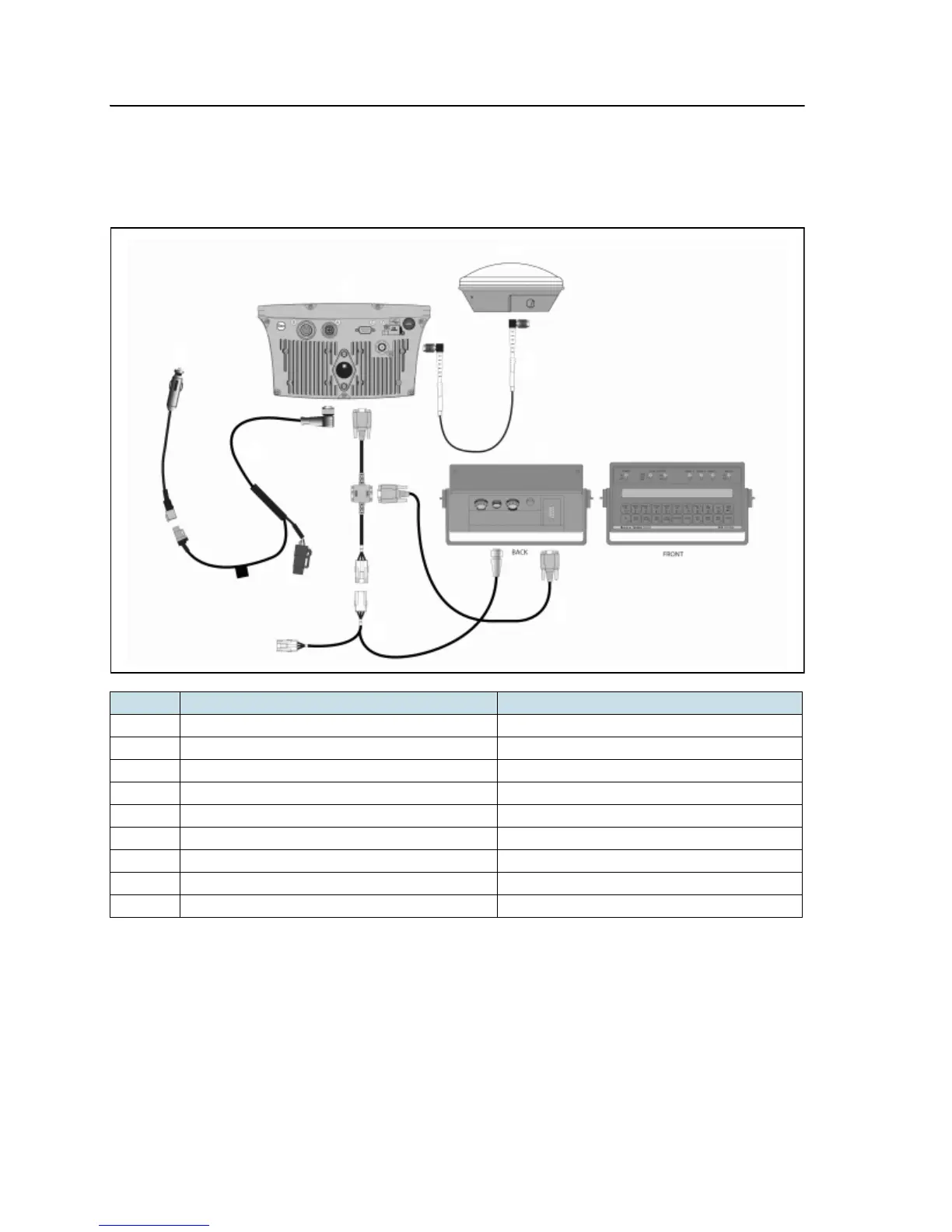

Radar speed input
Radar input is required for speed. You can connect either an external radar device, or
use cable P/N 54805-00, as shown below.
.
Item Description Part number
c EZ-Guide 500 lightbar 66100-xx
d Antenna 60600-02 (DGPS), 77038-00 (OmniSTAR/RTK)
e Antenna cable 50449
f EZ-Guide 500 power cable 62817
g To power –
h External interface cable 62749
i Raven to EZ−Guide 500 cable 69729
j Raven SCS 400 or 600 series controller –
k Radar cable 54805-00
j
k
c
d
e
f
g
h
i
