EZ-Guide 500 System Cabling Guide 61
Connecting to a Serial Variable Rate Controller 7
Rawson Variable Rate Controller

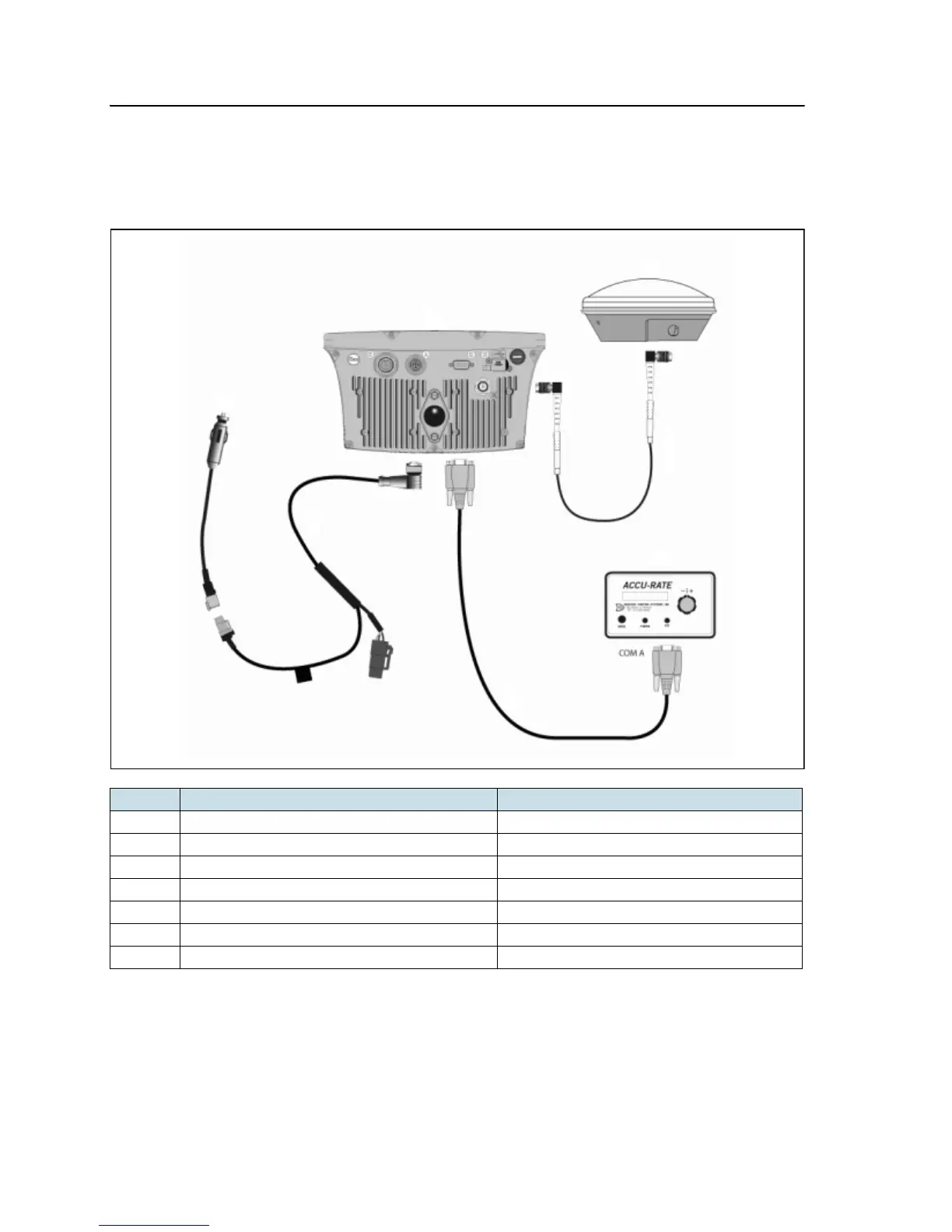

This figure shows how to connect the Rawson variable rate controller to the EZ-Guide
500 lightbar COM port.
Item Description Part number
c EZ-Guide 500 lightbar 66100-xx
d Antenna 60600-02 (DGPS), 77038-00 (OmniSTAR/RTK)
e Antenna cable 50449
f EZ-Guide 500 power cable 62817
g To power –
h Rawson (COM A) to EZ-Guide 500 cable 69730
i Rawson Controller –
c
d
e
f
g
h
i
