7 Connecting to a Serial Variable Rate Controller
62 EZ-Guide 500 System Cabling Guide

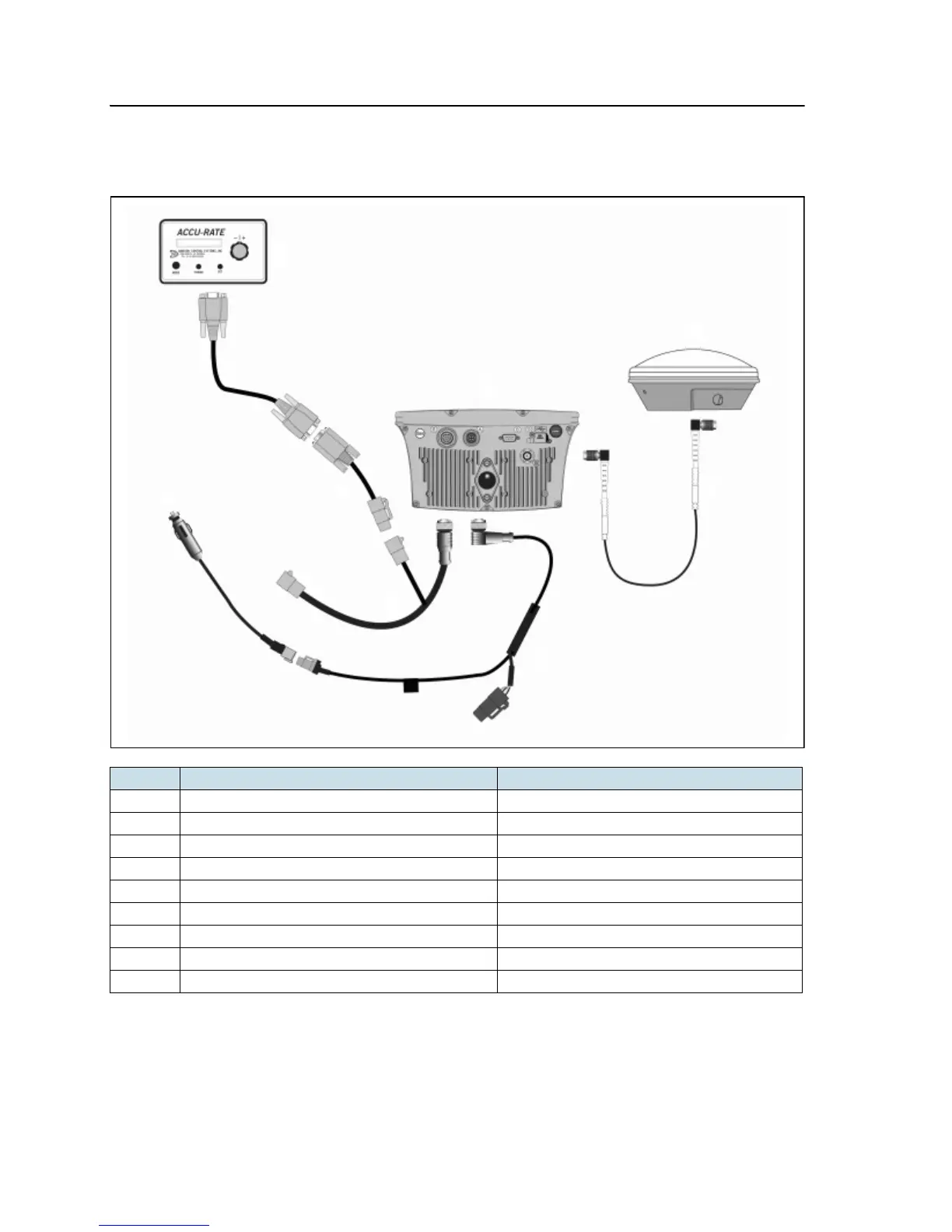

Alternatively, this figure shows how to connect the Rawson variable rate controller to
the EZ-Guide 500 lightbar AUX port.
Note – The target rate information from the EZ-Guide 500 lightbar is sent to both drives on
the Rawson controller.
Item Description Part number
c EZ-Guide 500 lightbar 66100-xx
d Antenna 60600-02 (DGPS), 77038-00 (OmniSTAR/RTK)
e Antenna cable 50449
f EZ−Guide 500 power cable 62817
g To power –
h EZ−Guide 500 AUX port cable 62609
i Serial port extender cable 63076
j Rawson (COM A) to EZ−Guide 500 cable 69730
k Rawson Controller –
c
d
e
f
g
h
i
j
k
