EZ-Guide 500 System Cabling Guide 63

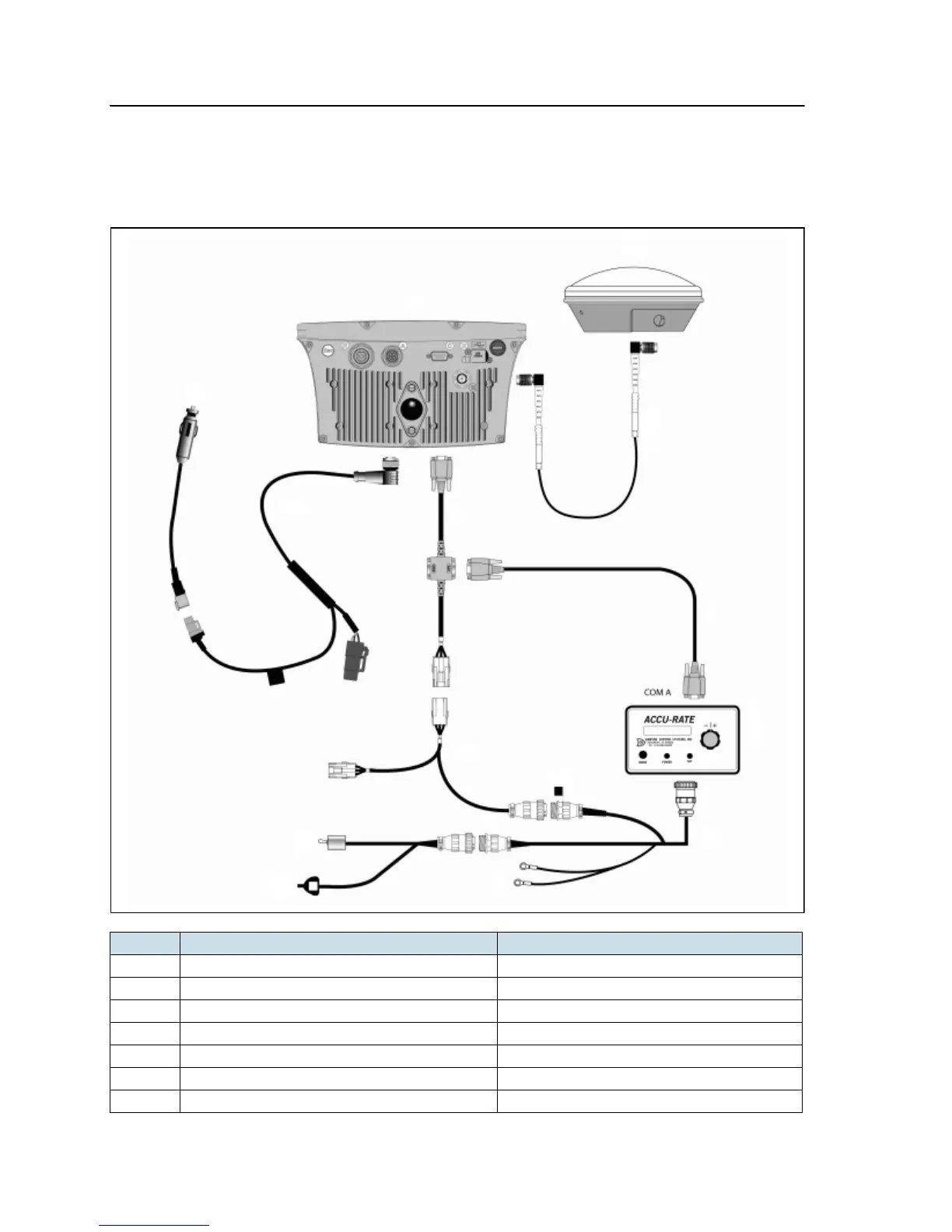

Connecting to a Serial Variable Rate Controller 7
Radar speed input
Radar input is required for speed. You can connect either an external radar device, or
use cable P/N 54806-00, as shown below.
Item Description Part number
c EZ-Guide 500 lightbar 66100-xx
d Antenna 60600-02 (DGPS), 77038-00 (OmniSTAR/RTK)
e Antenna cable 50449
f EZ−Guide 500 power cable 62817
g To power –
h External interface cable 62749
i Rawson (COM A) to EZ−Guide 500 cable 69730
j
k
c
d
e
f
g
h
i
g
l
m
o
n
