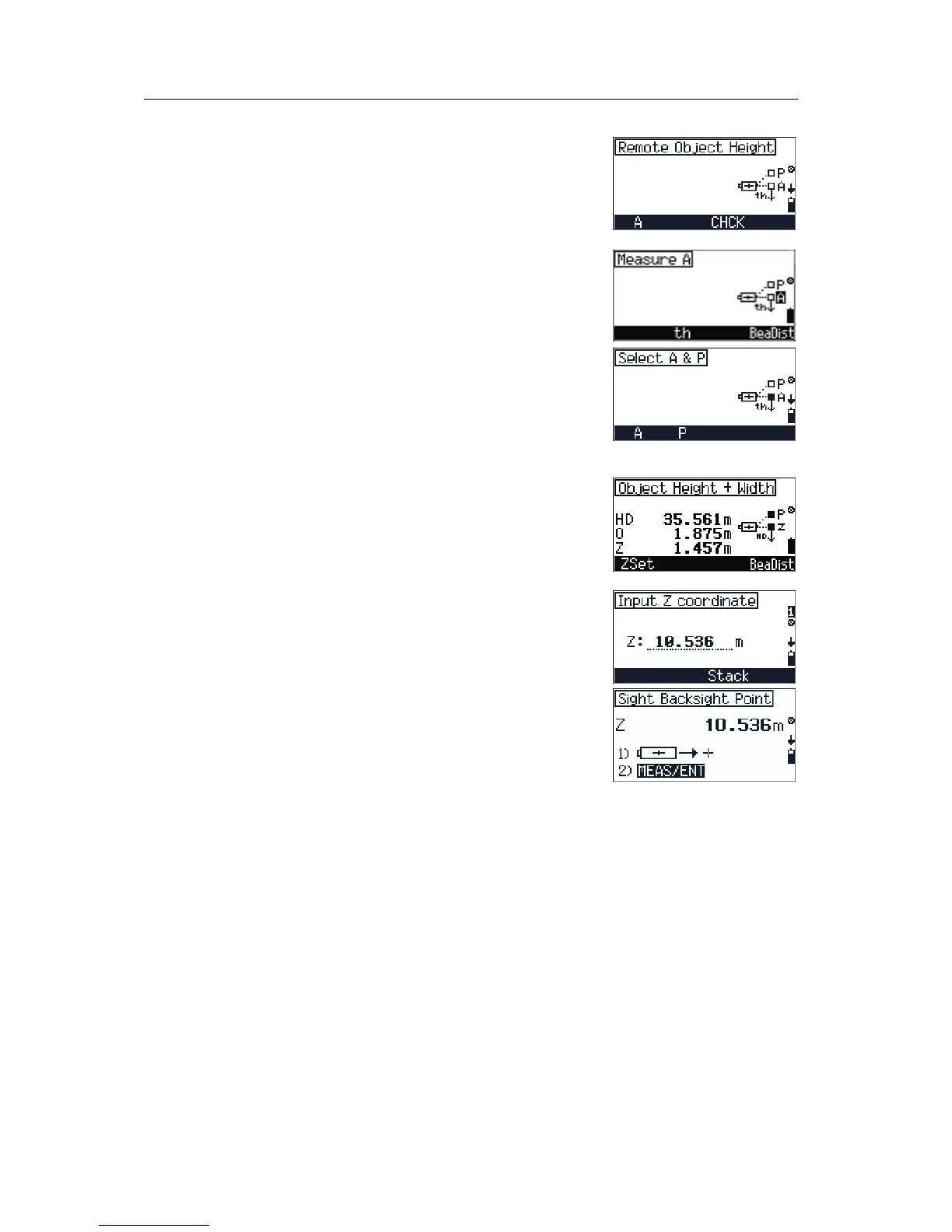

The Remote Object Height screen appears. Do
one of the following:
• To adjust C&I, press [F3] CHCK. See Checking and
adjusting the compensator (C) and index (I),
page 119.
• To take a measurement to point A, press [F1] A.
After taking a measurement to point A, you can select
the next point to measure.
Do one of the following:
• To remeasure point A, press [F1] A.
• To take a measurement to point P, press [F2] P.
The
Object Height and Width result screen
appears. This shows the horizontal distance to the
target slope distance (
O), horizontal distance (HD), and
height difference (
h) or Z-coordinate (Z).
Do the following:
1. To go to the Input Reference Height screen, press
[F1] Zset.
2. When you have input the Z-coordinate of the
reference point, sight the point and press
[MEAS/ENT].
The
Object Height and Width result
screen appears.
80.1 Recording data from connecting distance
The following lines are stored:
• Mode designation
• Point numbers and code
• SD, HA, and VA readings
• Polar coordinates A
• HA, and VA readings
• Measured point P
