Quick start
7
1 | SETTING UP YOUR ST2 PRO IN A
PRE-EXISTING CONFIGURATION

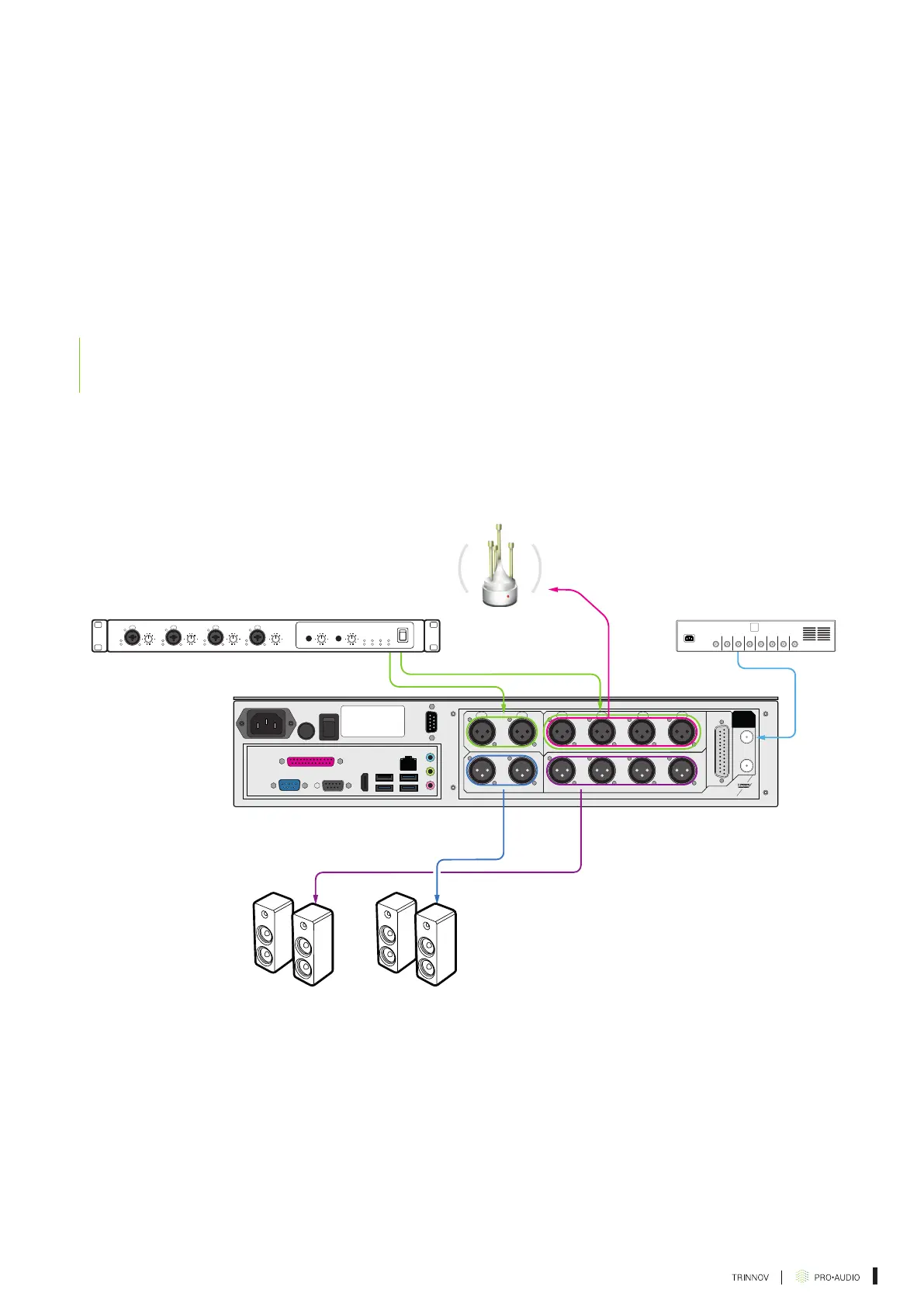

1.1 | YOU ARE USING A MIXING DESK OR A SOUND CARD (DAC)
WITH ANALOG OUTPUTS
If in the analog domain (meaning using analog sources from your sound card
or digital audio converters):
The most important thing is to put the ST2 Pro at the end of the chain.
IN
OUT
GPIO 1-8ANA. INPUTS
DIG. INPUTS
ANA. OUTPUTSDIG. OUTPUTS
WORD
CLOCK
21
2
1
1 2
3
3
4
4
1
ON
OFF
Active speakers Analog or Digital
Master Clock
Sound card Out Analog or Digital
3D Mic In for calibration only
ON
OFF
QUICK SETUP
Pair one Pair two
If you are using a monitor controller in your setup, start by plugging it to the ST2 Pro. In this
example, we will be using a DB-25 breakout cable from the controller to the Analog inputs 1
and 2 of the ST2 Pro.
To Next Page
