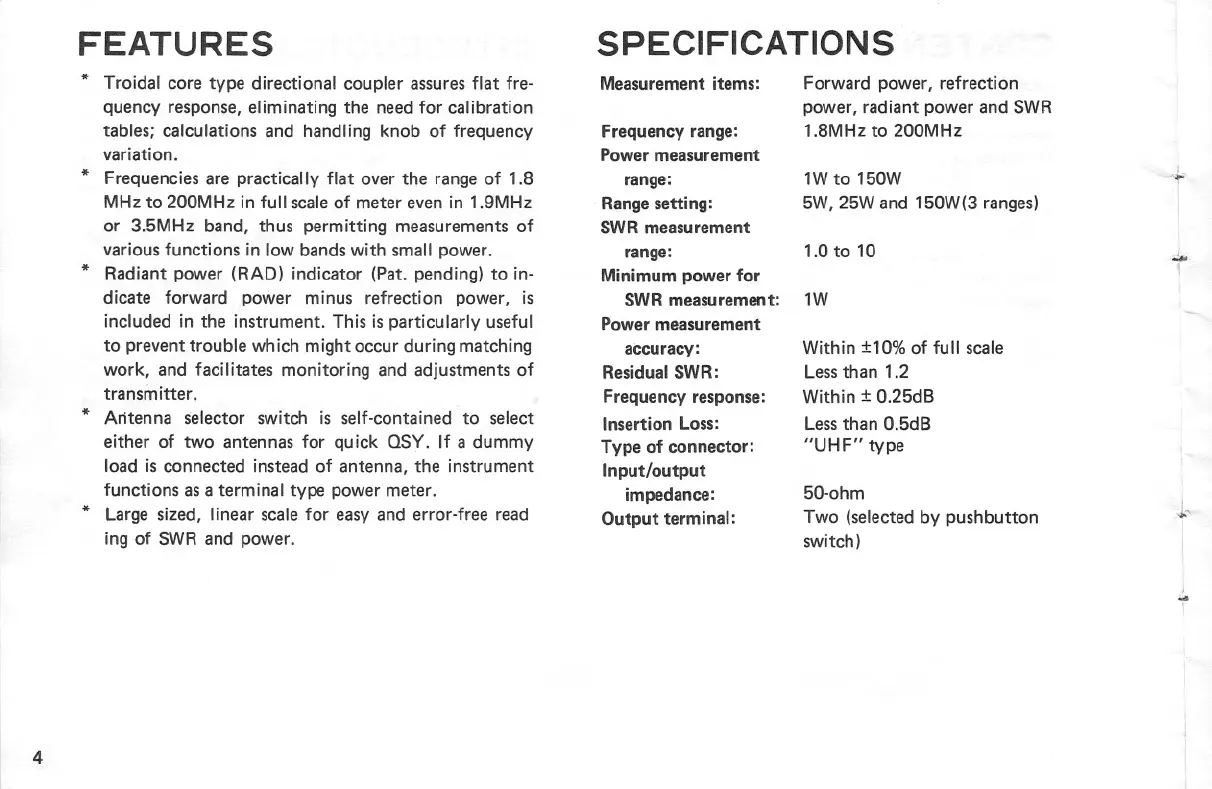

FEATURES
* Troidal core type directional coupler assures flat fre-
quency response, eliminating the need for calibration
tables; calculations and handling knob of frequency
variation.
* Frequencies are practically flat over the range of 1.8
MHz to 200MHz in full scale of meter even in 1.9MHz
or 3.5MHz band, thus permitting measurements of
various functions in low bands with small power.
* Radiant power (RAD) indicator (Pat. pending) to in-
dicate forward power minus refrection power, is
included in the instrument. This is particularly useful
to prevent trouble which might occur during matching
work, and facilitates monitoring and adjustments of
transm itter.
* Aritenna selector switch is self-contained to select
either of two antennas for quick QSY. If a dummy
load is connected instead of antenna, the instrument
functions as a terminal type power meter.
* Large sized, linear scale for easy and error-free read
ing of SWR and power.
4
Measurement items:
SPECIFICATIONS
Frequency range:
Power measurement
range:
Range setting:
SWR measurement
range:
Minimum power for
SWR measurement:
Power measurement
accuracy:
Residual SWR:
Frequency response:
Insertion Loss:
Type of connector:
Input/output
impedance:
Output terminal:
Forward power, refrection
power, radiant power and SWR
1.8MHzto 200MHz
1Wto 150W
5W, 25W and 150W(3 ranges)
-+
1.0 to 10
I
J..
1
1W
Within :t10% of full scale
Less than 1.2
Within :t 0.25dB
Less than 0.5dB
"UHF" type
50-ohm
Two (selected by pushbutton
switch)
j,,,
I
I
I
J
-
\
