* Power range selector (RANGE)
The power range selector is used to select the proper
power range, 5W, 25W or 150W, according to the output
of transmitter. For easy reading, set the meter pointer in
approximate center position of the scale. Since refrec-
tion power is small, set the selector to a smaller range
with the function switch in the REF position.
* Antenna selector (ANT SELECTOR)
This 2-position pushbutton switch is used to connect
the transmitter to ANT1 or ANT2. Press the button until
it locks and the transmitter is connected to ANT1. By
releasing the button, the transmitter is connected to
ANT2.
* Rear
TX:
panel (Fig. 5)
For connection of coaxial cable from trans-
mitter
.
ANT1: For connection of antenna or other load
such as dummy load.
ANT2: Same as ANT1.
ANT1
ANT2
8
ANTI
ANT2

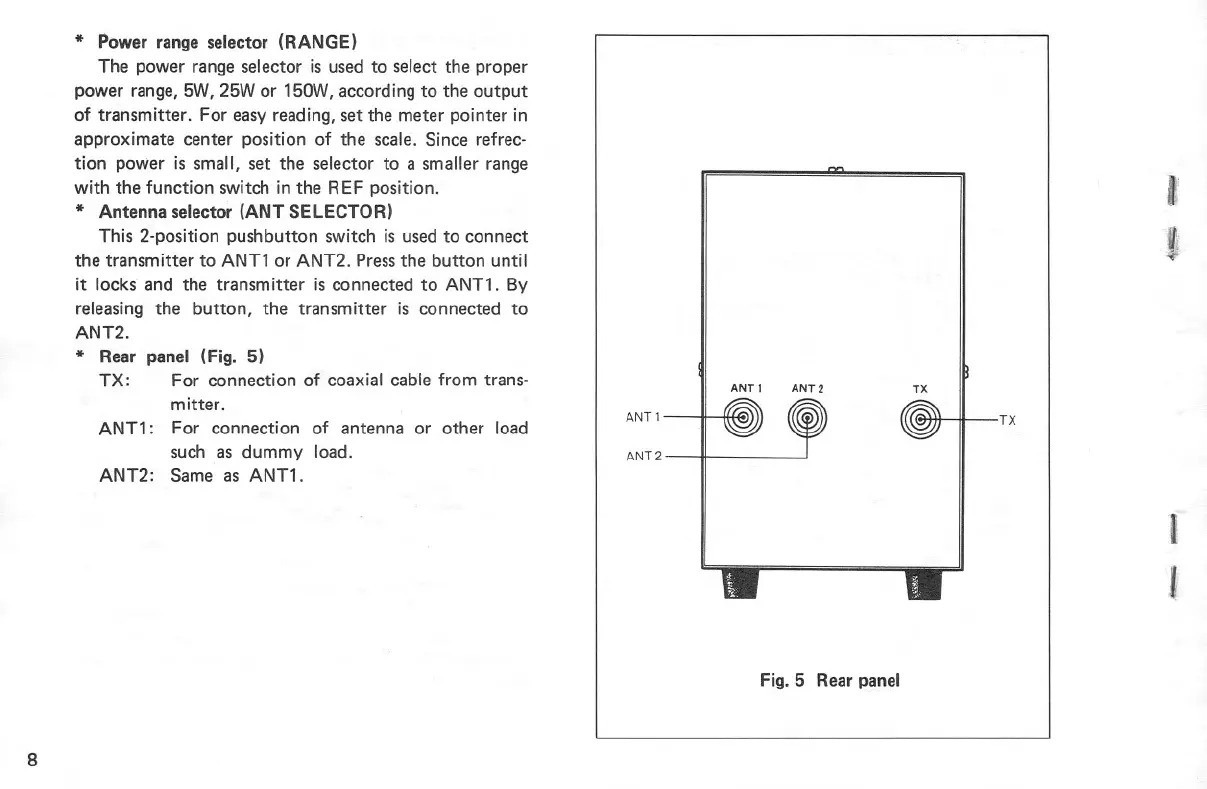

Fig. 5 Rear panel
I
J
TX
I
J
