Standard Extender Kit Installation
Notes:
• Test to ensure the entire installation works properly before pulling cables through
ceilings/walls.
• To achieve maximum distance and performance, use 24 AWG solid-wire Cat6
cable. Using stranded-wire Cat6 cable, or cable with a gauge (AWG) size higher
than 24 AWG will result in shorter extension distance. Higher gauge cabling, such
as 26 AWG, has a more limited transmission capability than lower gauge cabling.
All Tripp Lite N202-Series Cat6 cables use 24 AWG solid-wire cabling.

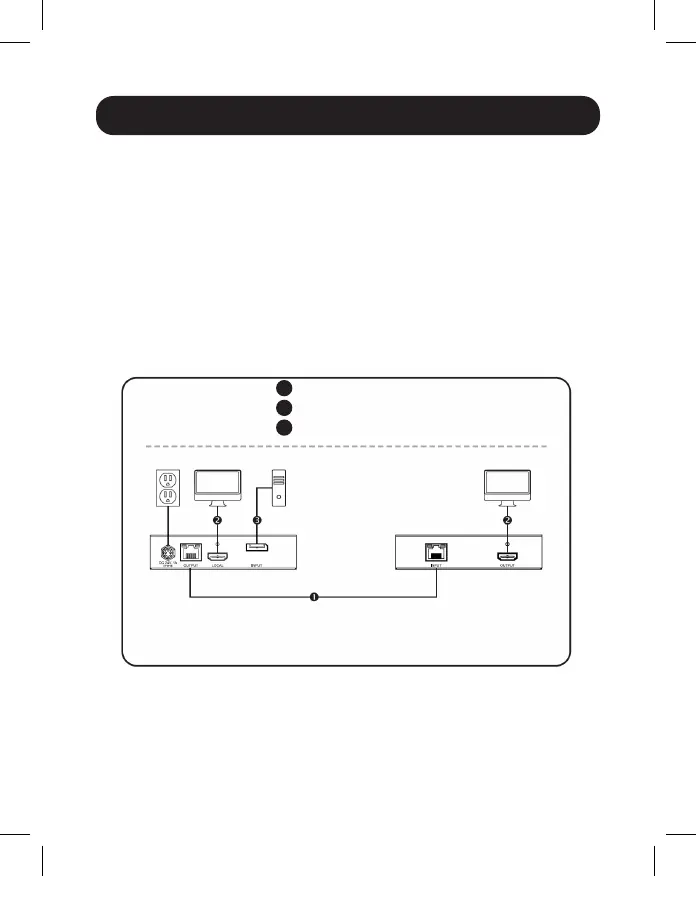

• The installation diagram shows a B127-1A1-DH unit.
• External power is not required for the remote receiver due to Power over Cable
(PoC) technology incorporated in the transmitter unit.
B127-1A1-DH
Extender Kit
MONITOR PC
LOCAL
TRANSMITTER
REMOTE
RECEIVER
Up to 125 ft. (38 m) at 4K/60 Hz
Up to 125 ft. (38 m) Cat6 cable at 4K/60 Hz
Up to 15 ft. (4.5 m) HDMI 2.0 cable at 4K/60 Hz
Up to 15 ft. (4.5 m) DisplayPort cable at 4K/60 Hz
1
2
3
