Standard Extender/Splitter Installation
Installation Instructions for B127-2A1-HH
Notes:
1) Test to ensure the entire installation works properly before pulling cables through
ceilings/walls.
2) To achieve maximum distance and performance, use 24 AWG solid wire Cat6
cable. Using stranded-wire Cat6 cable, or cable with a gauge (AWG) size higher
than 24 AWG, will result in shorter extension distance. Higher gauge cabling,
such as 26 AWG, has a more limited transmission capability than lower gauge
cabling. All Tripp Lite N202-Series Cat6 cables are made with 24 AWG solid-wire
cabling.

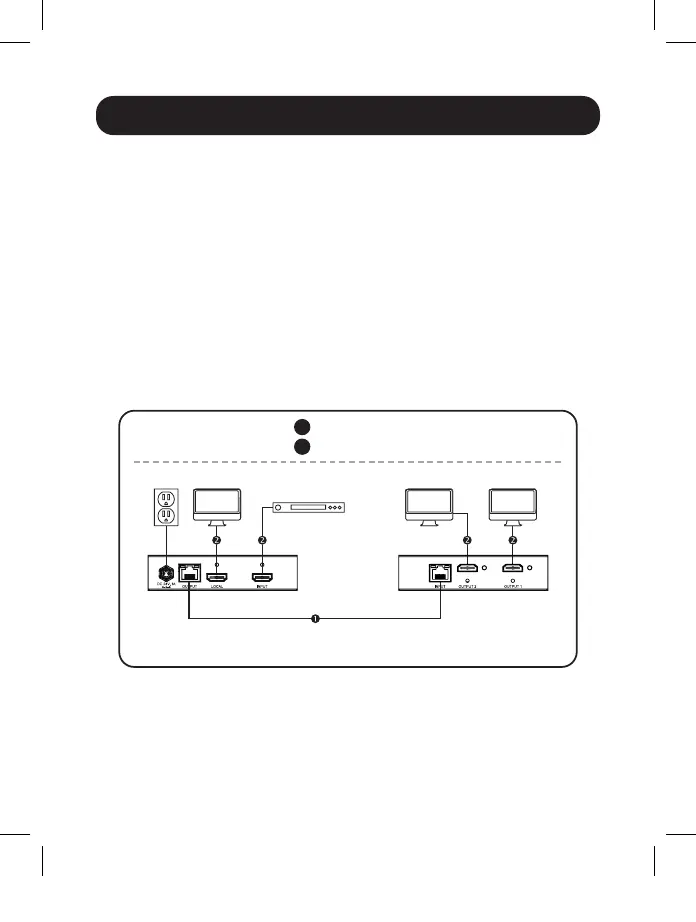

3) The installation diagram shows a B127-2A1-HH unit.
4) External power is not required for remote receiver units because of Power-over-
Cable (PoC) technology incorporated in the transmitter units.
B127-2A1-HH
extender kit
MONITOR HDR PLAYER
LOCAL
TRANSMITTER
REMOTE
RECEIVER
Up to 125 ft. (38 m) at 4K/60 Hz
Up to 125 ft. (38 m) Cat6 cable at 4K/60 Hz
Up to 15 ft. (4.5 m) HDMI 2.0 cable at 4K/60 Hz
1
2
1. Make sure all equipment in the installation—such as TVs, Blu-ray
players and the transmitter—is powered OFF.
2. Using an HDMI 2.0 cable (such as Tripp Lite P569-XXX-CERT or
P568-XXX-2A Series cables), connect the HDMI source to the INPUT
port on the local transmitter unit.
