12
Installation
RS-232 Serial Control Installation
1. Please make sure your Terminal Emulator Software is running.

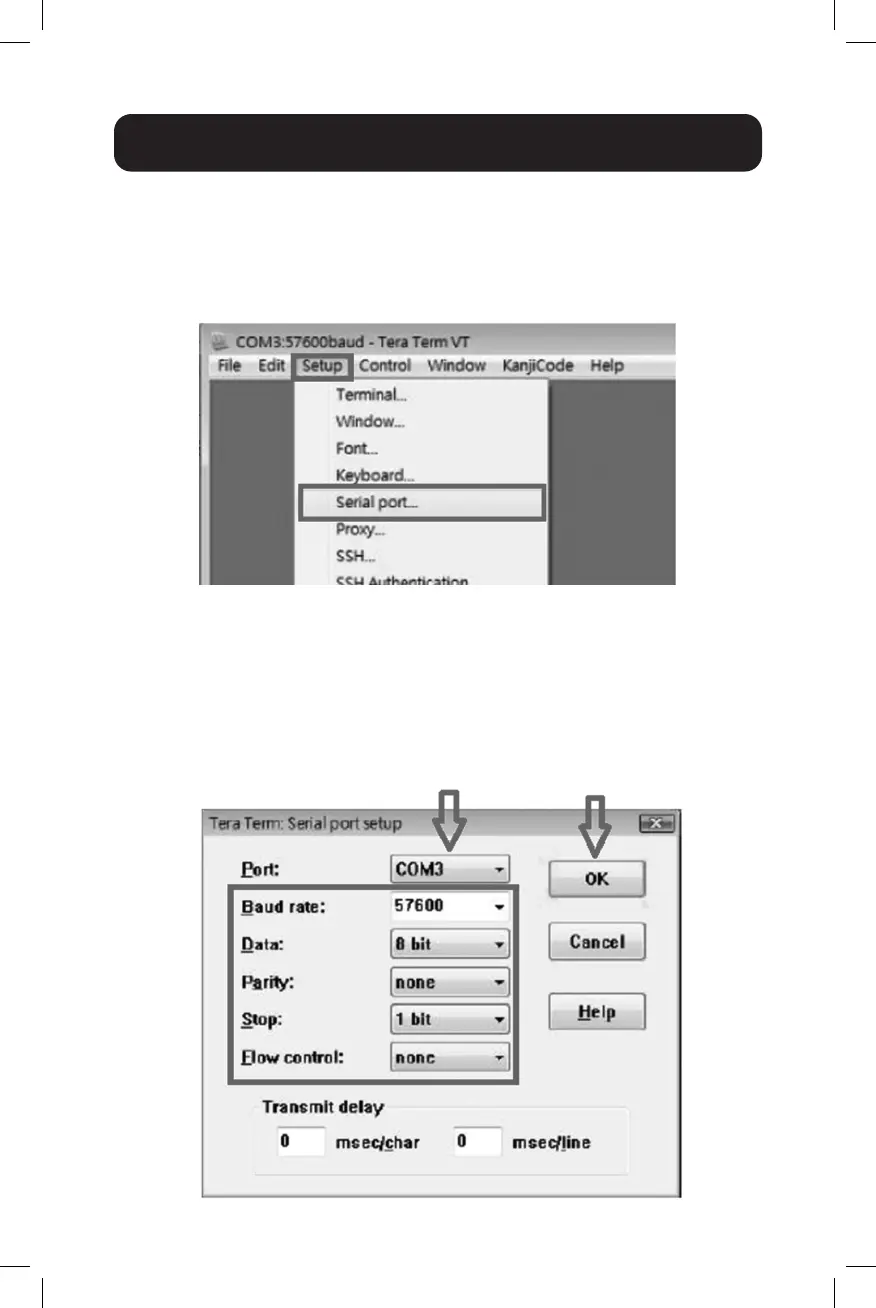

2. Set up your serial COM port. Open your software, click Setup and select
Serial Port from the dropdown menu.
3. Select the COM port into which the DB9 is connected. If you use Keyspan
®
,
it will automatically assign the COM port for you. Please make sure to select:
• Baud Rate: 57600
• Data: 8 bit
• Parity: none
• Stop: 1 bit
• Flow control: None and click OK.
