Tripp Lite BC800U - Basic Operation; LED Indicators

7
Basic Operation

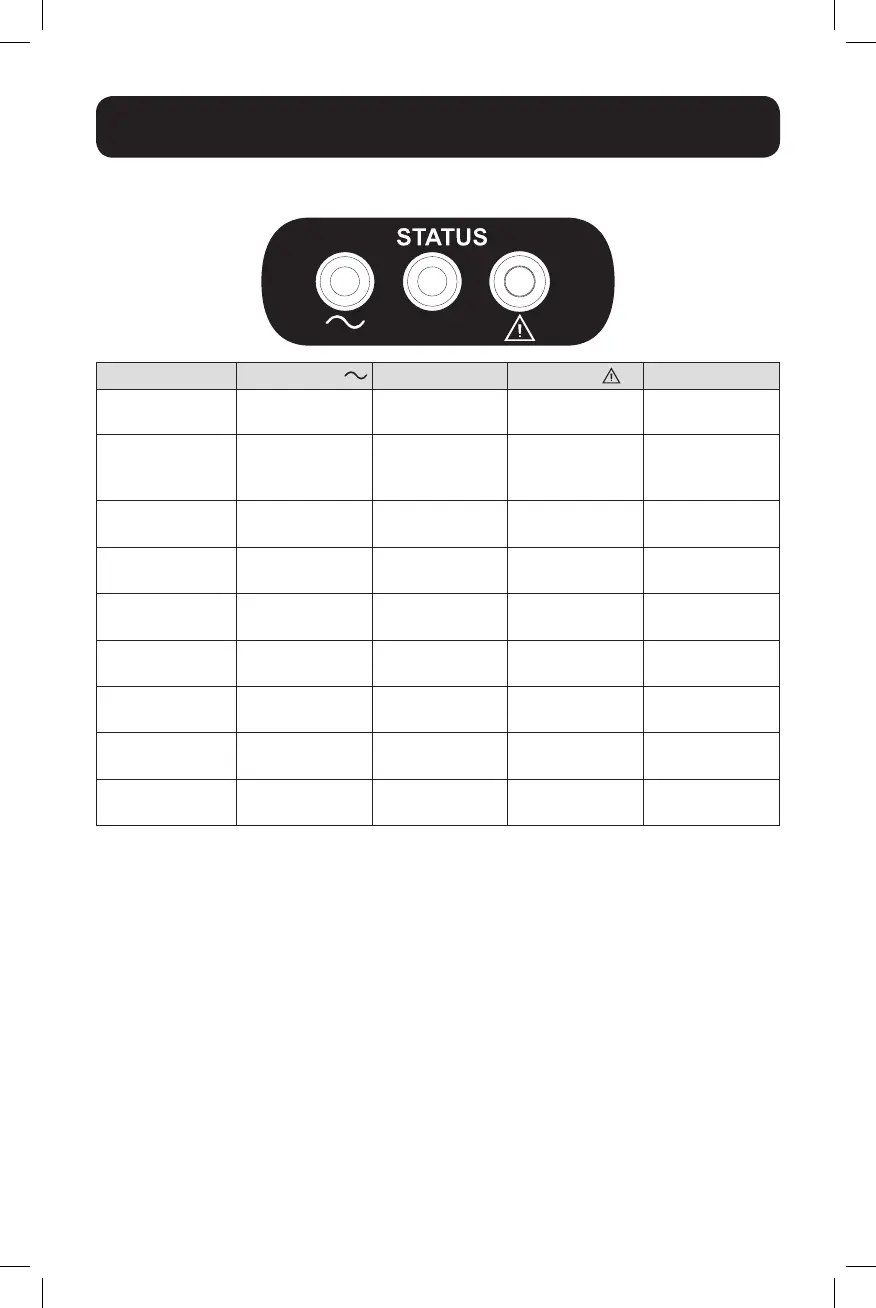

LED Indicators
Description Green LED 1 Green LED 2 Red LED Alarm
Line Mode On On Off Off
Battery Mode Off
On (flashes
OFF every 10
seconds)
Off Off
Battery Low Off
Off (flashes
every 1 second)
On
Sounds every
1 second
Line Mode
Overload Alert*
On On Off
Sounds every
0.5 second
Battery Mode
Overload Alert**
Off Flashes Off
Sounds every
0.5 second
Line Mode
Overload Fault*
Off Off On
Sounds
continuously
Battery Mode
Overload Fault**
Off Off Off Off
Replace Battery On On
Flashes every
1 minute
Sounds every
1 minute
Fault Condition Off Off On
Sounds
continuously
*Line Mode Overload Alert Condition - 110%±10%, goes to fault after 5 minutes; Overload Fault Condition
- 120%±10%, goes to fault immediately.
**Battery Mode Overload Alert Condition - 110%±10%, shuts down in 5 seconds; Battery Mode Overload
Fault Condition - 120%±10%, shuts down immediately.
