4
Multiple Extender Installation
Note: You may only cascade four PoE extender units up to 500 m (1640 ft.) in a
single installation.
1. Using a Cat5e/6 cable up to 100 m long, connect your powered source
device (such as a PoE switch) into the “IN” port on the unit.
2. Using another Cat5e/6 cable up to 100 m long, connect the “OUT” port
of the first extender to the “IN” port of the second extender.
3. Repeat Step 2 up to two more times for each additional PoE extender
you wish to add, or connect your remote PoE powered device (PD) to
the “OUT” port of the second PoE extender.
Notes:
• The 4th PoE extender will only supply IEEE 802.3af up to 12W.
• Your PoE source must meet or exceed IEEE 802.3at / 802.3af standards. Please
see Maximum Supported Power table for more information.

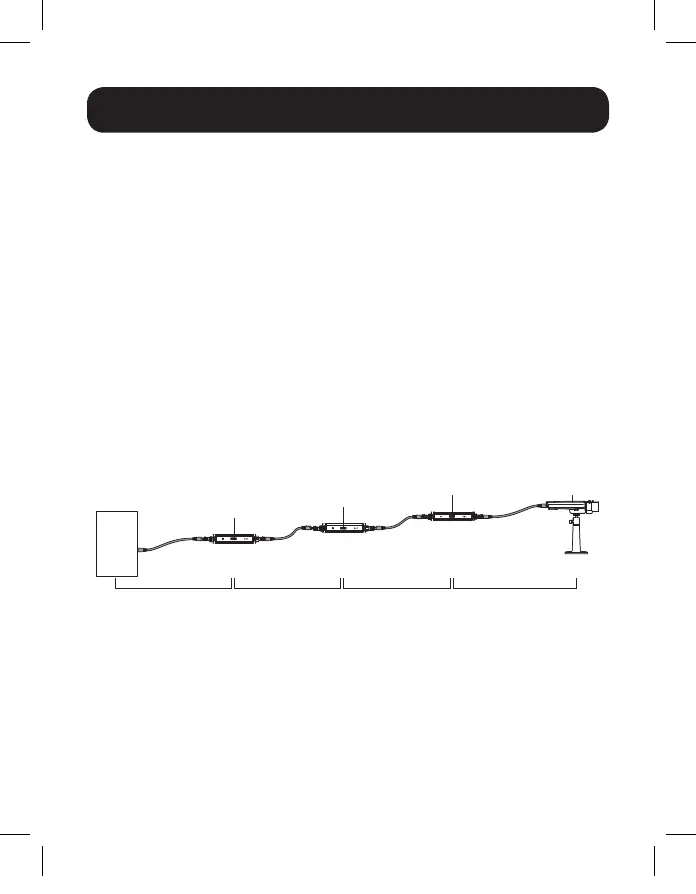

Multi-Extender Installation Diagram
Camera
PoE Extender
PoE Extender
PoE Extender
PoE
Switch
Max 100 m (328 ft.) Max 100 m (328 ft.) Max 100 m (328 ft.) Max 100 m (328 ft.)
18-12-180-9338F9.indb 4 4/17/2019 10:22:31 AM
