Tripp Lite PDU3VS6L2120 - Connecting the PDU

4
Installation
Connecting the PDU
2-1

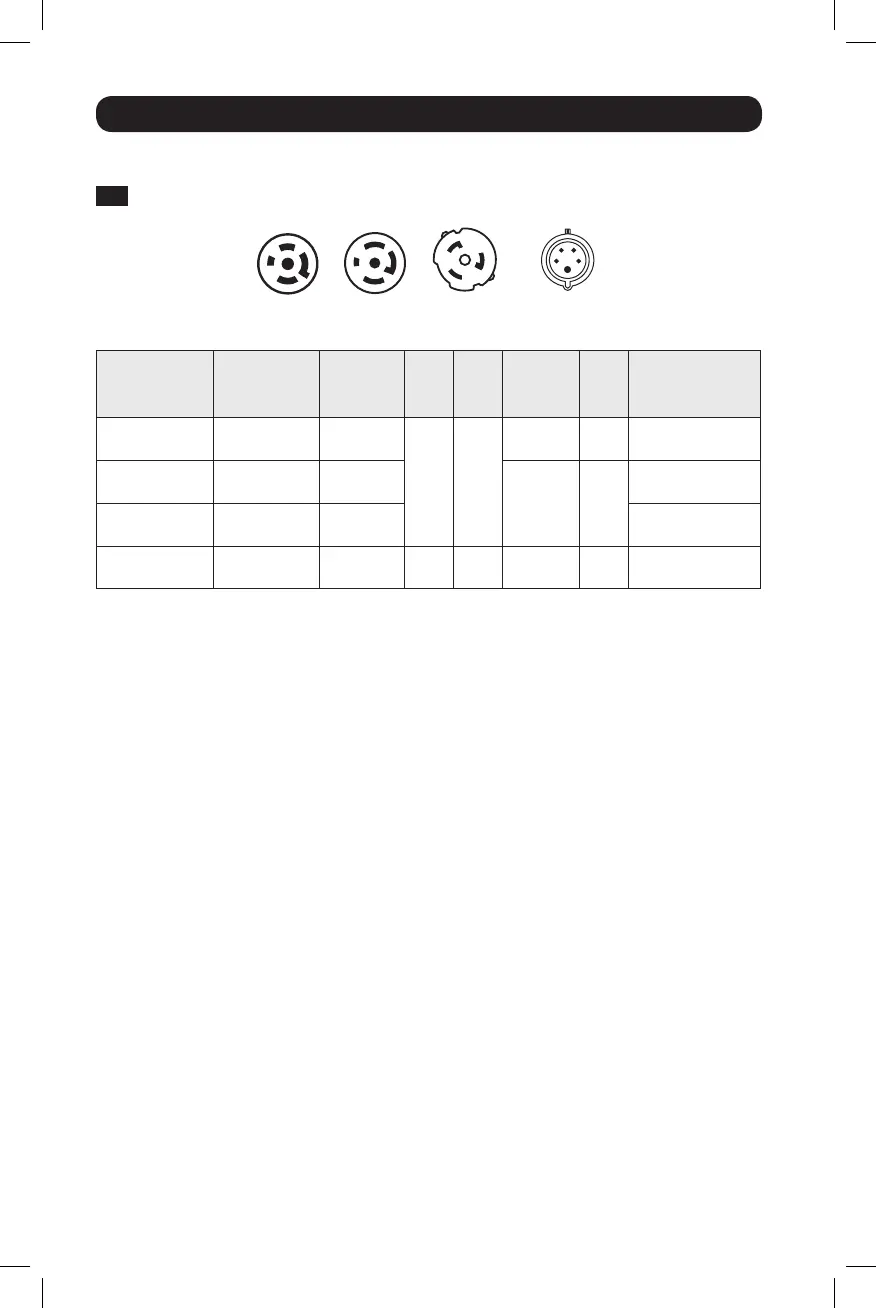

Each model is equipped with 1 of 4 different input plugs.
L21-30P 16A Red IEC 309
3P + N + E
HUBBLE
CS8365C
Model Name Input Plug
Max Input
Amps (Limited
by Input Cord
and Plug)
Input
Voltage
Range
Output
Voltage
Range Breakers
Cord
Length Outlets
PDU3VS6L2120 L21-20P 16A
200-
240V
200-
240V
N/A
6 ft.
(1.8M)
30 Total; 3 Banks of
(2) C19 and (8) C13
PDU3VS6L2130 L21-30P 24A
3 x Double
Pole, 20A
Branch-
Rated
6 ft.
(1.8M)
30 Total; 3 Banks of
(2) C19 and (8) C13
PDU3VS6H50
HUBBLE
CS8365C
35A
30 Total; 3 Banks of
(2) C19 and (8) C13
PDU3XVS6G20
16A Red IEC 309
3P + N + E
16A
360-
415V
208-
240V
N/A
6 ft.
(1.8M)
30 Total; 3 Banks of
(2) C19 and (8) C13
L21-20P
