Tripp Lite WEBCARDLX - LED Indicators; Ethernet Link;Activity Indicator (A1); Ethernet Network Speed Indicator (A2); WEBCARDLX Status LED (E)

3

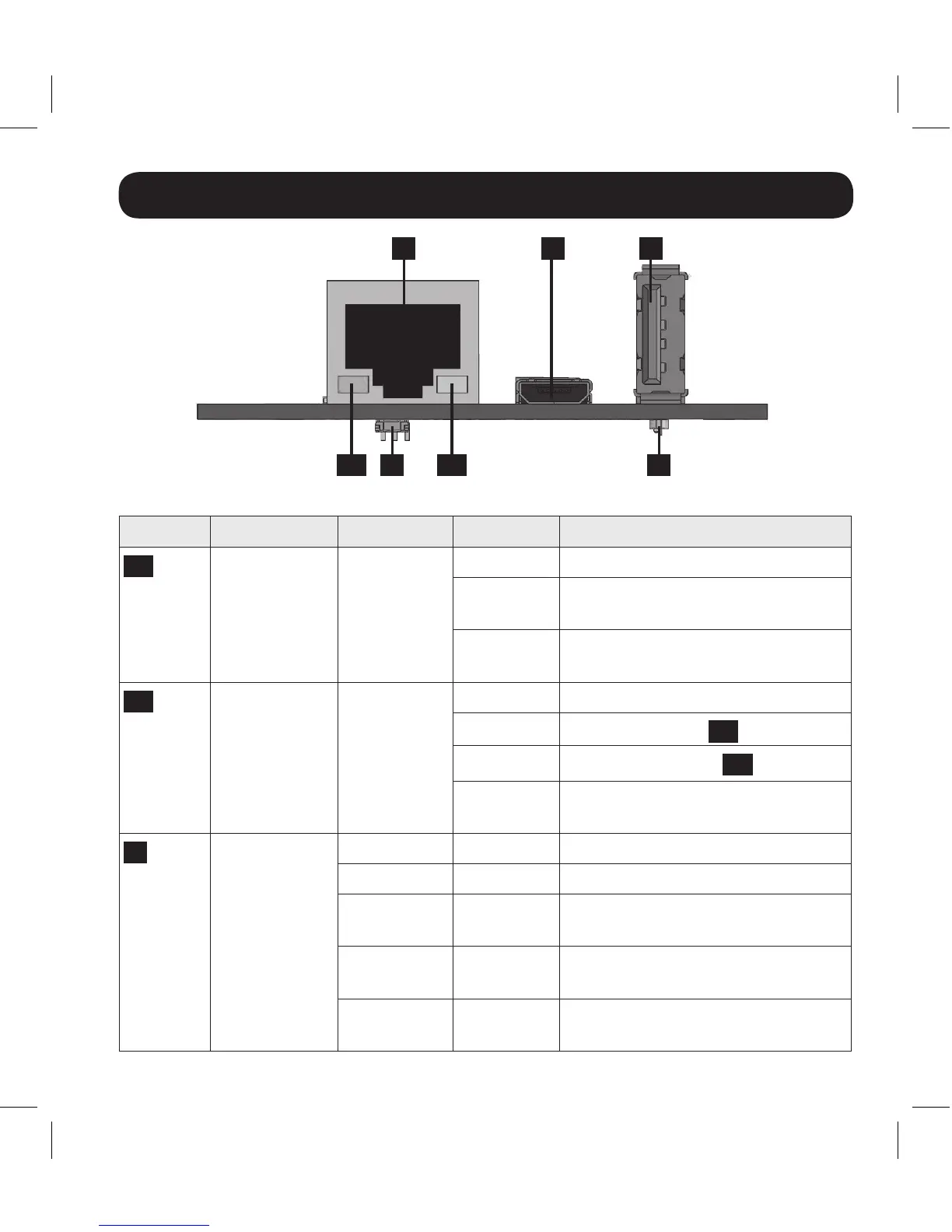

Features
CBA
EA2DA1
WEBCARDLX Legend
Identifier LED Function LED Color Status Description
A1
Ethernet
Link/Activity
Indicator
Green Flashing There is network activity on the port
Off There is no network activity on the
port
Off Perform reset via interface or reset
button
A2
Ethernet
Network
Speed
Indicator
Yellow On steady 100 Mbps network speed
Off
10 Mbps speed if
A1
is flashing
Off
No network activity if
A1
is also off
Off Perform reset via interface or reset
button
E
WEBCARDLX
Status
Green On steady Normal operation
Green Single flash Power up indicator
Green/
Orange
Off No power or card is initializing
Green/
Orange
Alternating
(~1/sec.)
Software update in progress
Green/
Orange
Alternating
(~2/sec.)
Restoring factory default
configuration
