3.3.2. AHRS Sensor Axes

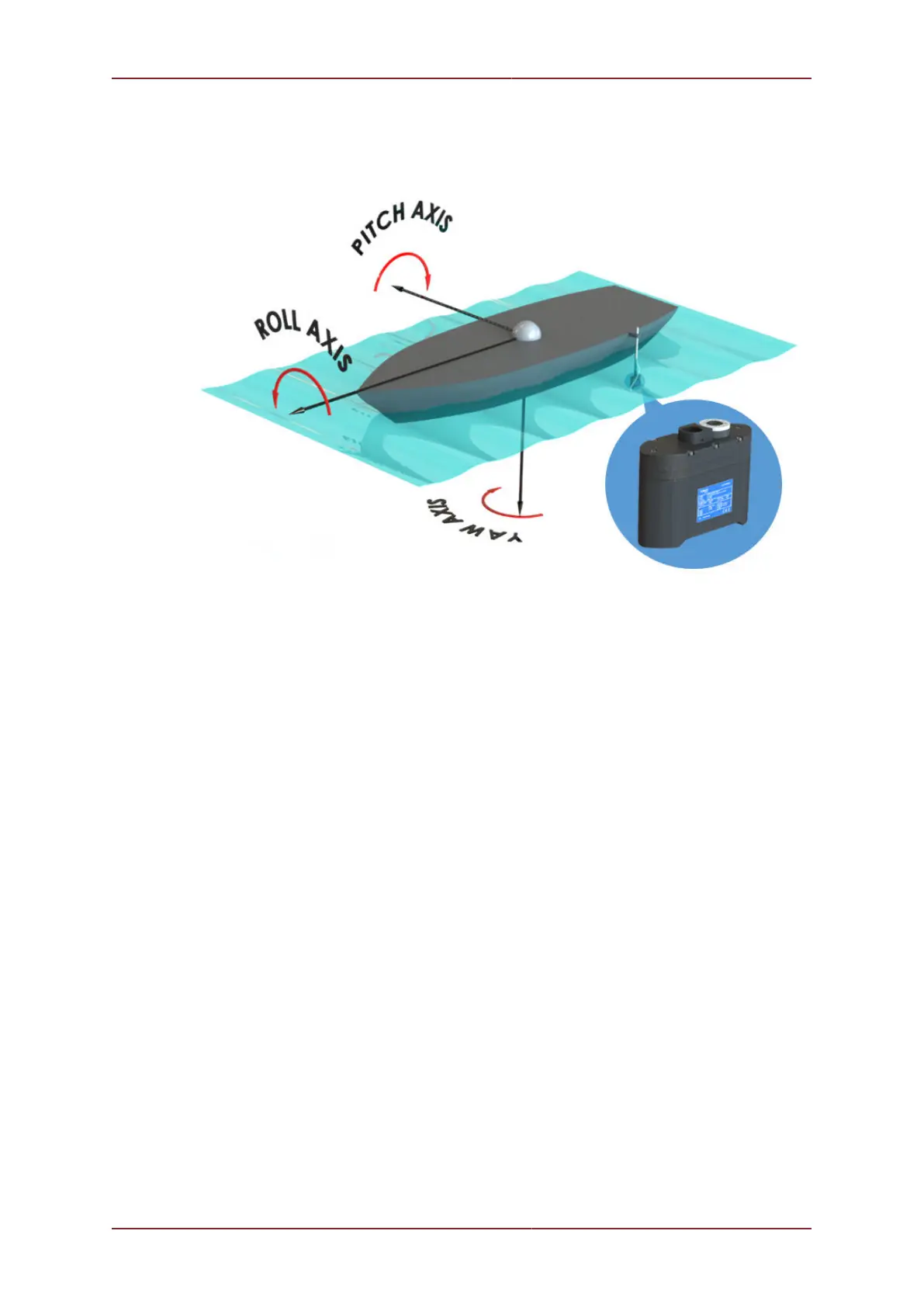

The axes for the AHRS within the echosounder are shown below.
3.3.3. Mounting
The mounting point on the Dual Frequency Altimeter utilises as 1⅛"-14 BSW (Whitworth)
thread. This interface is shared with the mounting system for the Tritech MicronNav and
Gemini products.
Tritech adapters are listed below:
