Installation Altimeter Product Manual
0286-SOM-00001, Issue: 09 18 © Tritech International Ltd.

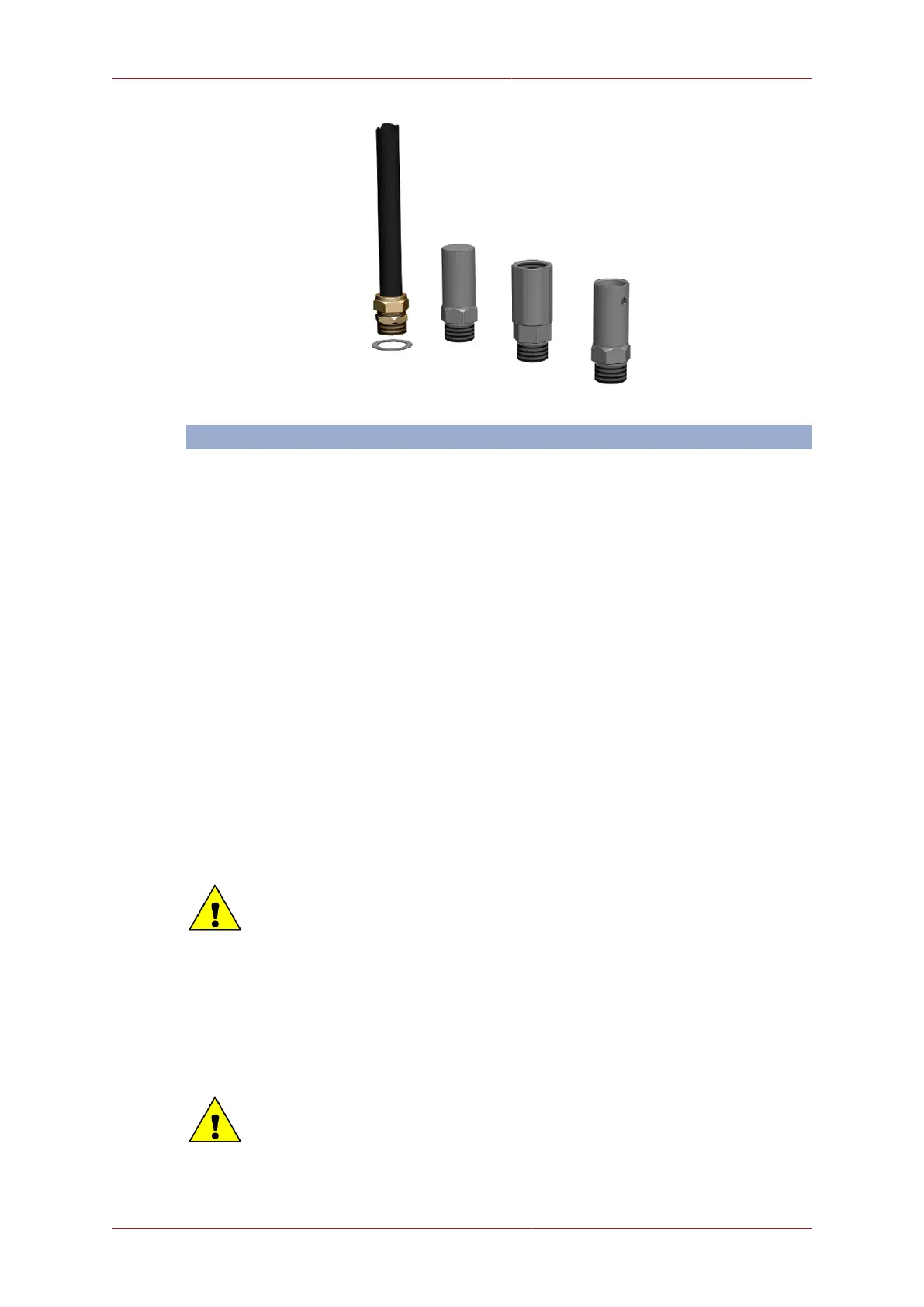

Items from left to right
Item No Description Qty
S11836 Gemini DB - Ø22mm Pole Assembly 0.5m 1
S11744 29mm ID x 40mm OD x 1mm Washer 1
S11743 Gemini DB - Pole Adapter Blank 1
S11904 Gemini DB - 1⅛"-18 UNEF Pole Adapter 1
S11741 Gemini DB - Reach & Rescue Pole Adapter 1
Common Interface thread: 1⅛"-14 BSW (Whitworth)
S11836: Utilises coupling on Ø22mm carbon pole as per USBL system
S11904: Supplied for US customers
S11743: A blank adapter for customer adaption
S11741: Configured to accommodate "sprung" pin engagement common to a range of
'Reach & Rescue' telescopic pole systems
S11836 & S11744 are supplied with all deployment pole mount brackets
3.4. Long Term Use
Caution
The stainless steel altimeters are not designed for long-term submersion and
may suffer from corrosion if left underwater or in a splash zone for extended
periods. Refer to the maintenance section for appropriate care.
3.5. Standard Pin-Out Diagrams
Caution
The power should be turned off before making a connection between the sonar
head and surface controller (SCU or SeaHub).
