Current Loop Test Cable
PA ALTIMETER
4
1
5
6
2
3

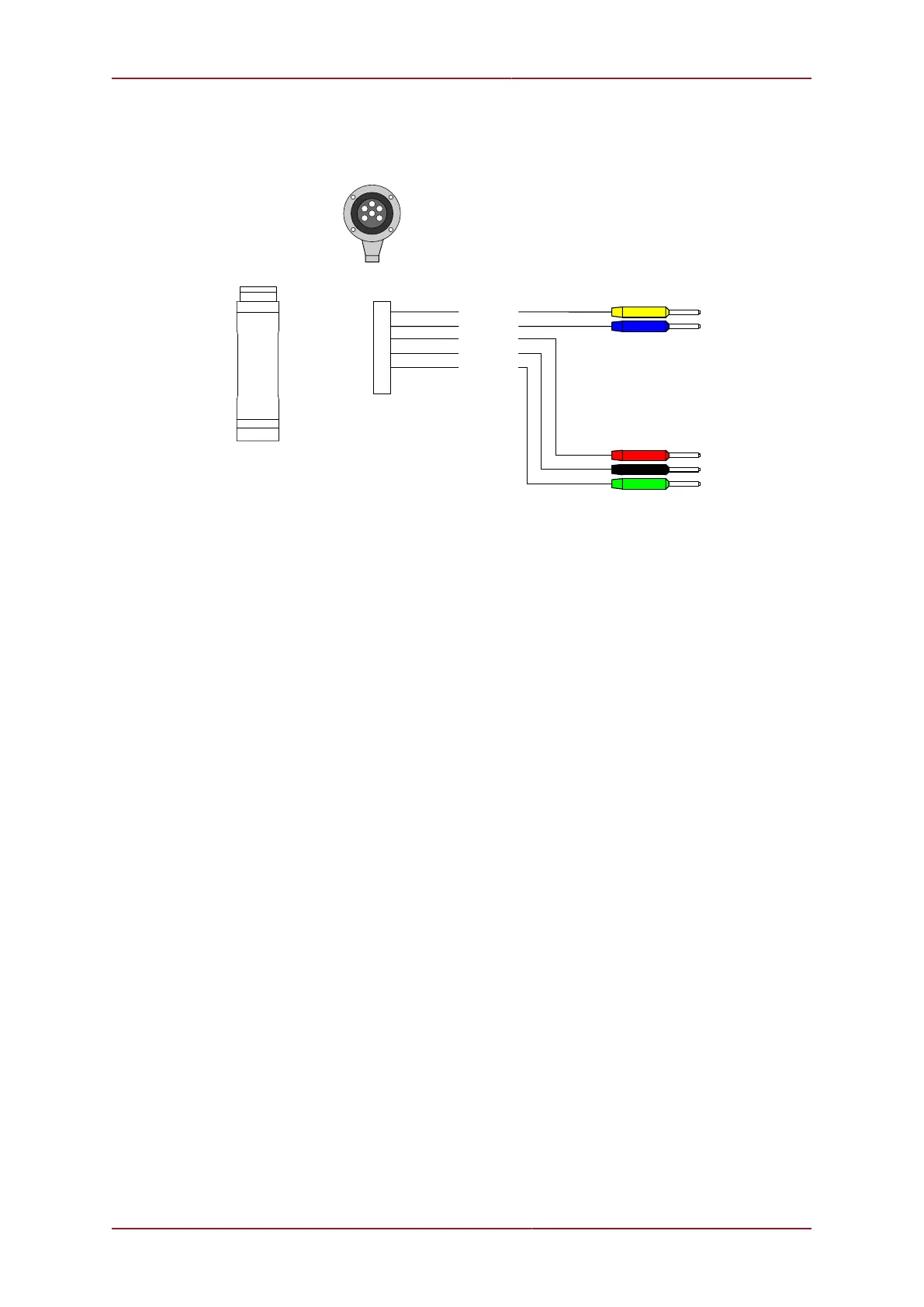

EXAMPLE CURRENT LOOP TEST CABLE
Current Loop Altimeters are not loop powered. The output current is separate from the power supply.
PWR 24 VDC
1
2
3
4
5
6
YELLOW
BLUE
RED
BLACK
GREEN
0V DC
Tritech Cable Face View
ANALOGUE OUTPUT
CURRENT LOOP +VE
CURRENT LOOP -VE
