Tritech PA200 - RS232 Sonar with RS485 Altimeter Jumper Settings

Jumper Settings for SeaKing with Altimeter on AUX Port Altimeter Product Manual
0286-SOM-00001, Issue: 09 42 © Tritech International Ltd.

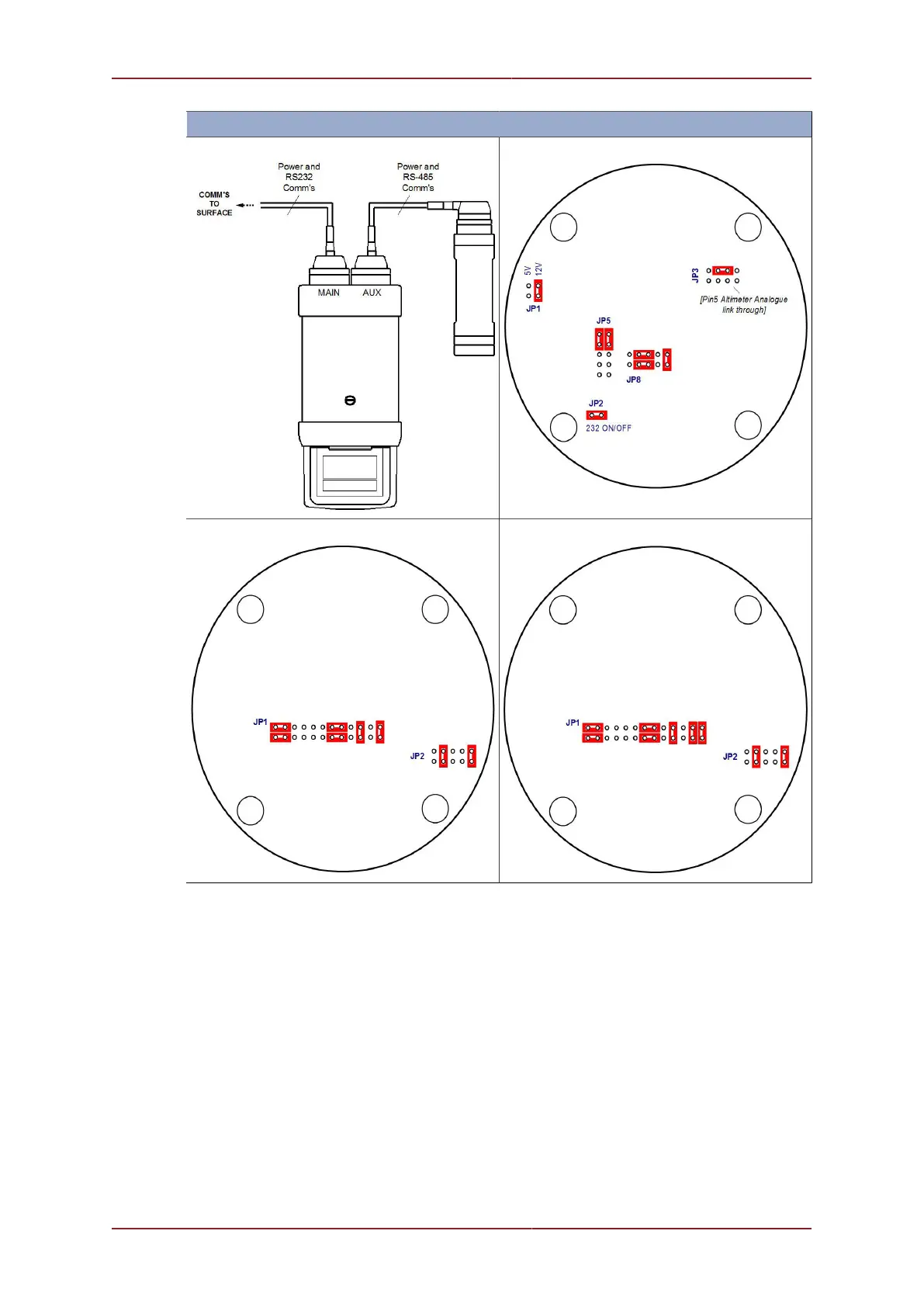

RS232 Sonar with RS485 Altimeter
Connection diagram COMD(F)/V3 Sonar PCB
COMGV3/COMV5 Sonar PCB COMV5 Mod A Sonar PCB
