Jumper Settings for SeaKing with Altimeter on AUX Port Altimeter Product Manual
0286-SOM-00001, Issue: 09 44 © Tritech International Ltd.

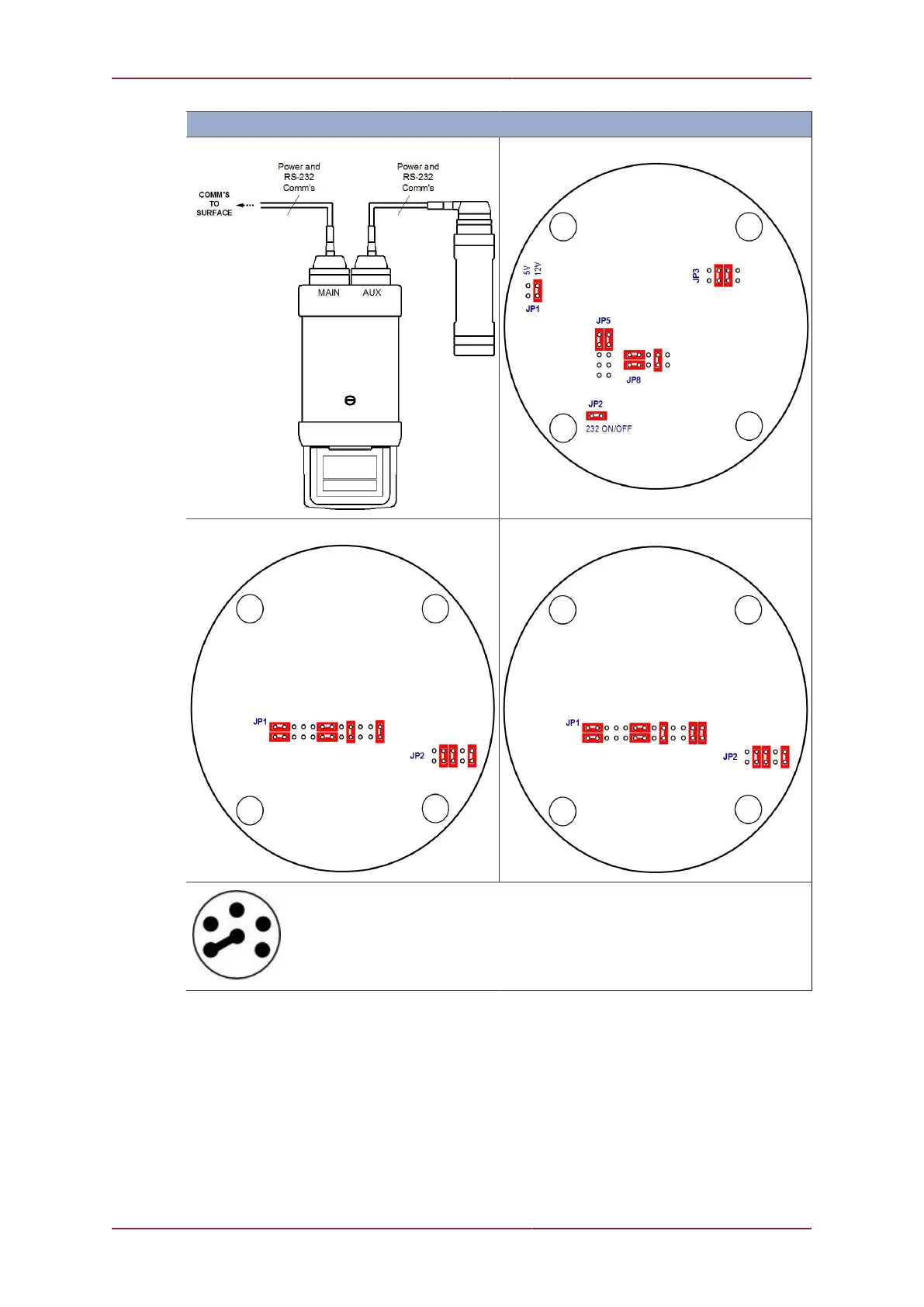

RS232 Sonar with RS232 Altimeter
Connection diagram COMD(F)/V3 Sonar PCB
COMGV3/COMV5 Sonar PCB COMV5 Mod A Sonar PCB
The SeaKing head will normally use pin 5 for RS232 ground and the
altimeter uses pin 4 for this function. For an RS232 altimeter to be used
with a standard double ended Tritech cable the analogue output on the
altimeter should be disabled and pins 4 and 5 on the SeaKing COM PCB
must be shorted together.
