bath shower mixer
7
INSTALLATION
PREPARING THE MIXER VALVE
Check the contents to make sure all parts are
present.
Before starting the mixer installation, make
sure all the openings on the valve are carefully
covered to stop ingress of any debris, etc. while
routing the supply pipework.
The shower valve is suitable for exposed
installation onto the top surface of a bath tub.
SITING OF THE SHOWER AND
ACCESSORIES
Refer to (g.6) for correct siting of the shower.
The mixer valve should be positioned, as
detailed, with all controls within comfortable
reach of the user.
The accessories (showerhead, riser rail and / or
xed showerhead) can be positioned above or to
either side of the shower.
Connect to the B.S.M using 3/4 BSP tap connec-
tor tting.
Height of
showerhead
to suit user’s
requirement.
Showerhead can
be mounted
either side of
the mixer.

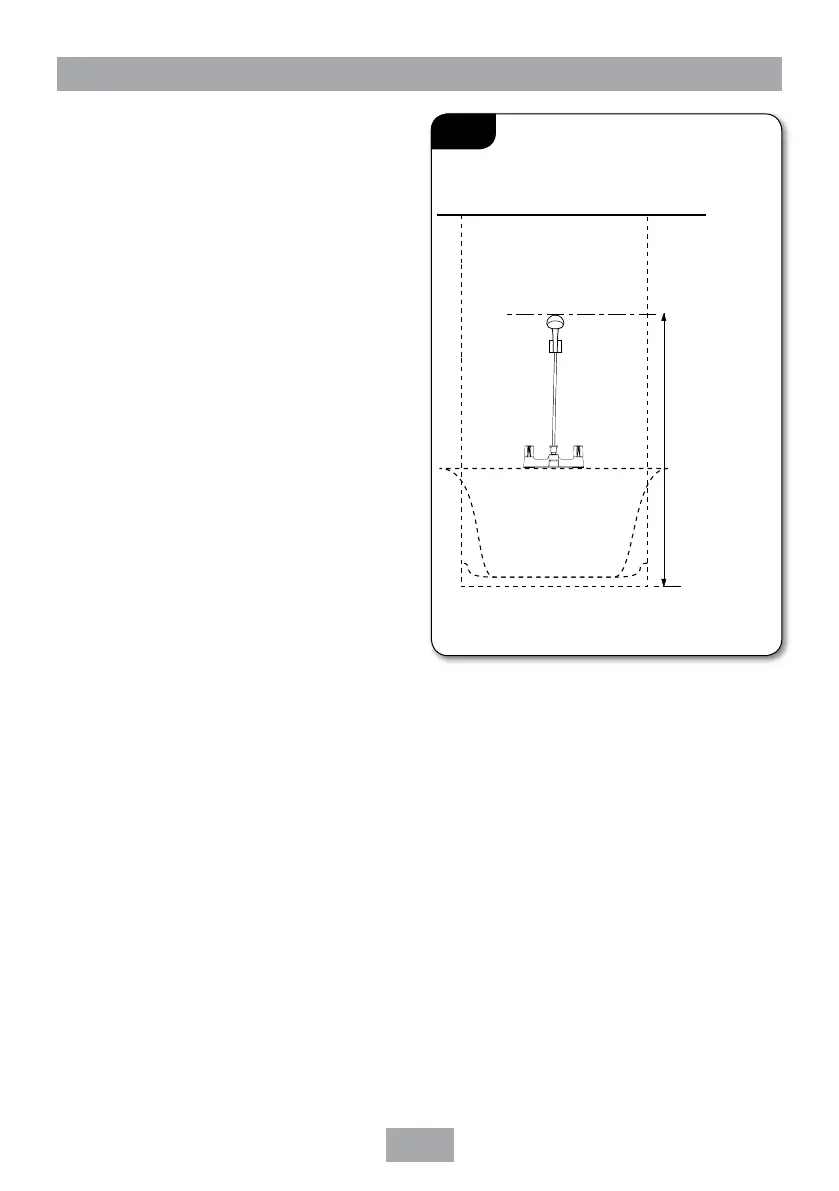

*Fig.6
*(diagrammatic view – not to scale)
LEAK TESTING
Fit the hose to the outlet and direct it to waste.
Open the isolating valves to the bath shower
mixer and check for leaks. Remedy any leaks
found.
COMMISSIONING
Important: Make sure that all supply pipework
has been ushed through before commissioning.
Start the water ow by rotating the hot and cold
controls.
