5 of 12
Tiger XR, Tiger XRT, Tiger XRX, Tiger XC,
Tiger XC
A, Tiger XCX Models

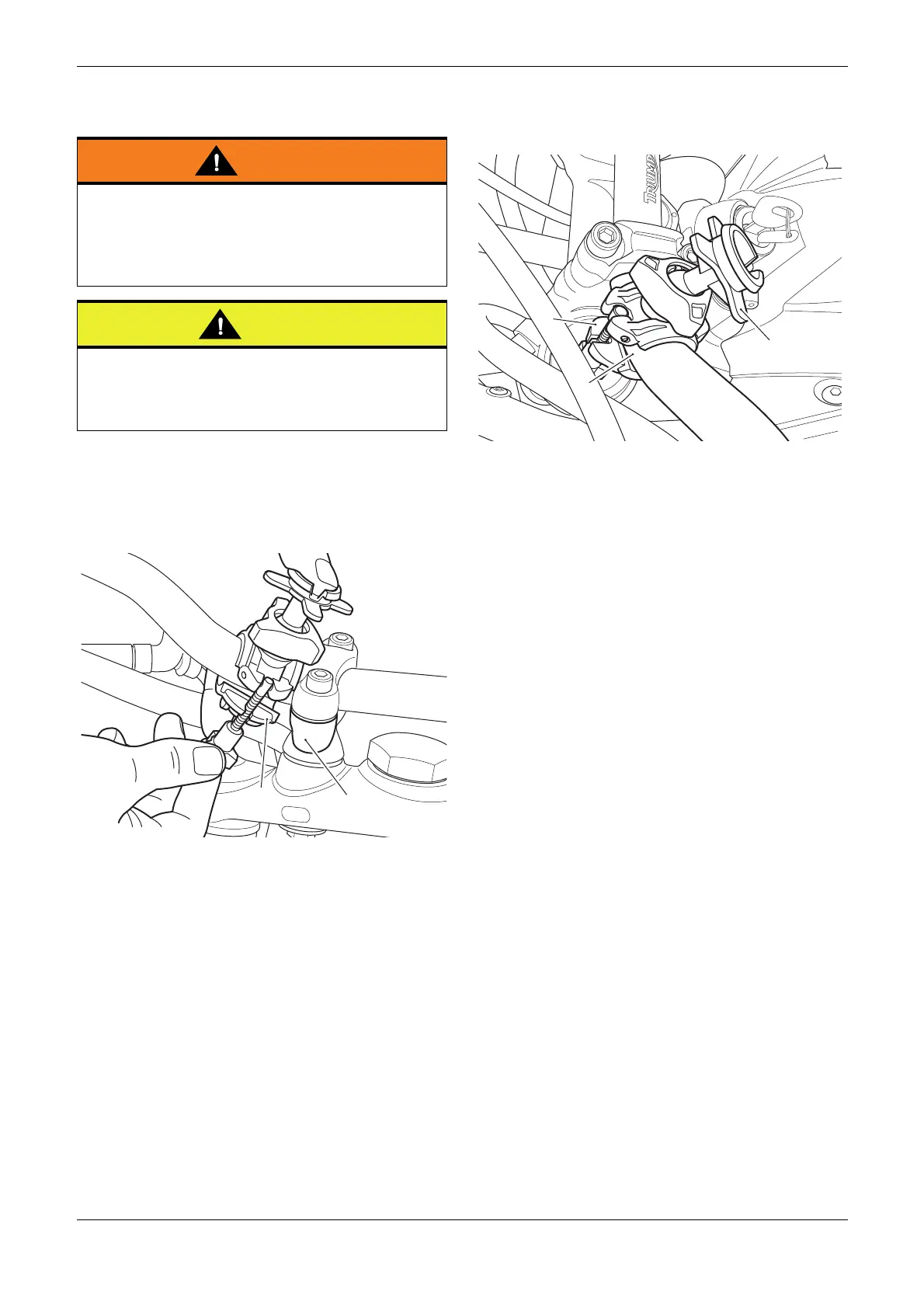

1. Fit the clamp assembly to the handlebars to
the left hand side of the handlebar riser.
Ensure no cables or wiring harness are trapped
between the clamp assembly and the
handlebars.
1. Clamp assembly
2. Handlebar risers
2. Position the clamp as close as possible to the
bend in the handlebar. The adjustable mount
on the clamp is positioned to the front, as
shown.
3. Tighten the plastic nuts evenly until the clamp
assembly is secured to the handlebars. Do not
fully tighten the plastic nuts at this stage.
1. Handlebar, left hand side
2. Clamp assembly
3. Adjustable mount
The phone holder kit must not be used if a GPS
mount is fitted to the motorcycle. If a phone
holder kit is used when a GPS mount is fitted it will
restrict handlebar movement which may result in
loss of motorcycle control and an accident.
A wiring harness which becomes trapped or
kinked during installation, or general motorcycle
operation, may result in wiring harness damage
and electrical malfunctions.
