6 of 12
Street Twin up to VIN 914972, Street Cup,
Street Scrambler up to VIN 910740 without
Handlebar Brace,
Bonneville T100 from VIN 759204,
Bonneville T120, Bonneville Bobber,
Bonneville Bobber Black,
Bonneville Speedmaster from VIN 739143
Models

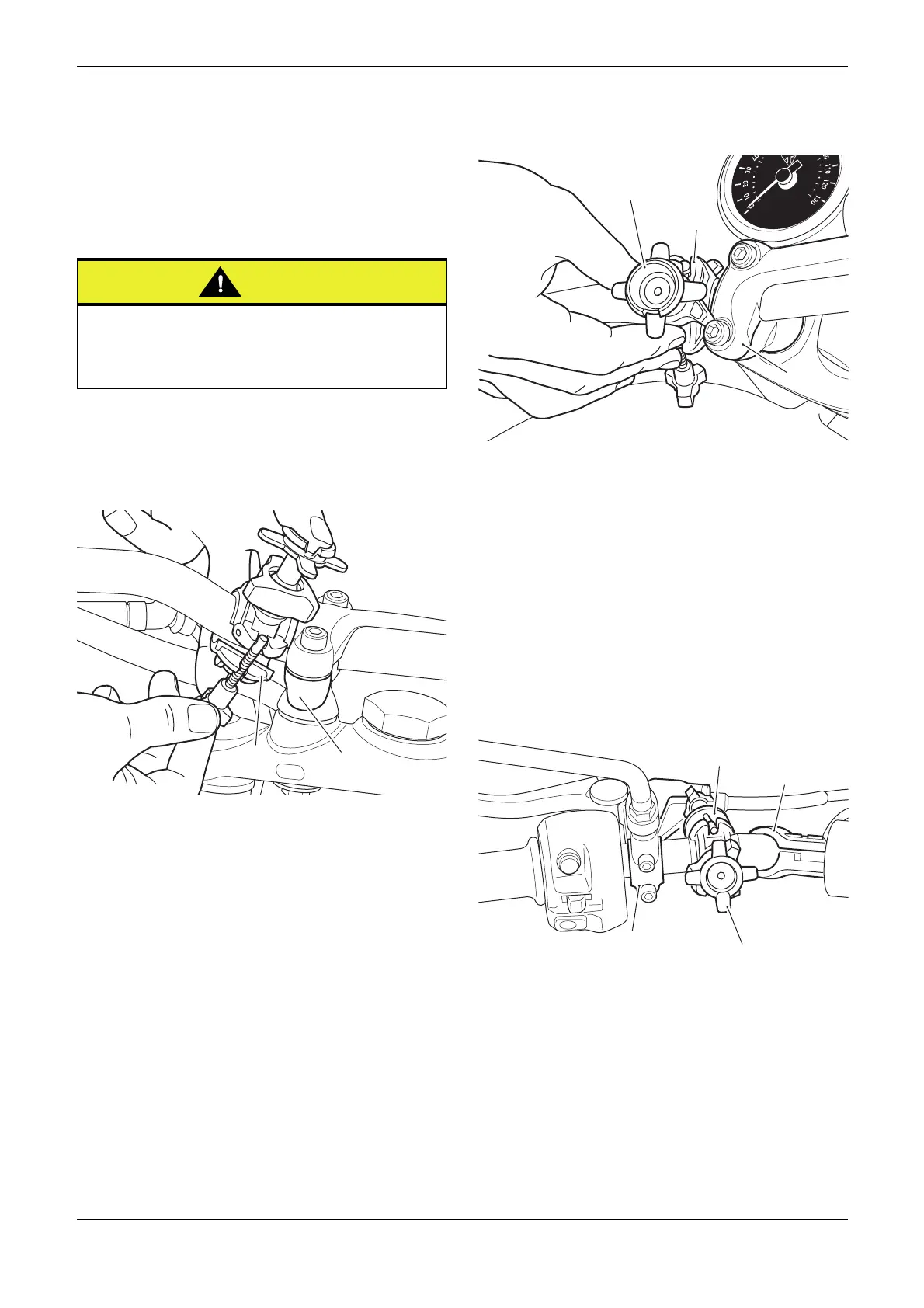

1. Fit the clamp assembly to the handlebars to
the left hand side of the handlebar riser.
Ensure no cables or wiring harness are trapped
between the clamp assembly and the
handlebars.
1. Clamp assembly
2. Handlebar riser
2. Position the clamp assembly so that it touches
the handlebar clamp and riser, the adjustable
mount on the clamp is positioned to the front,
as shown.
3. Tighten the plastic nuts evenly until the clamp
assembly is secured to the handlebars. Do not
fully tighten the plastic nuts at this stage.
1. Handlebar clamp and riser
2. Clamp assembly
3. Adjustable mount
Street Scrambler with Handlebar Brace
1. Fit the clamp assembly, with the adjustable
mount facing the rider, to the left hand side of
the handlebars positioned between the clutch
lever and handlebar brace clamp, as shown.
Ensure no cables or wiring harness are trapped
between the clamp assembly and the
handlebars.
1. Clamp assembly
2. Clutch lever
3. Handlebar brace clamp
4. Adjustable mount
2. Tighten the plastic nuts evenly until the clamp
assembly is secured to the handlebars. Do not
fully tighten the plastic nuts at this stage.
A wiring harness which becomes trapped or
kinked during installation, or general motorcycle
operation, may result in wiring harness damage
and electrical malfunctions.
